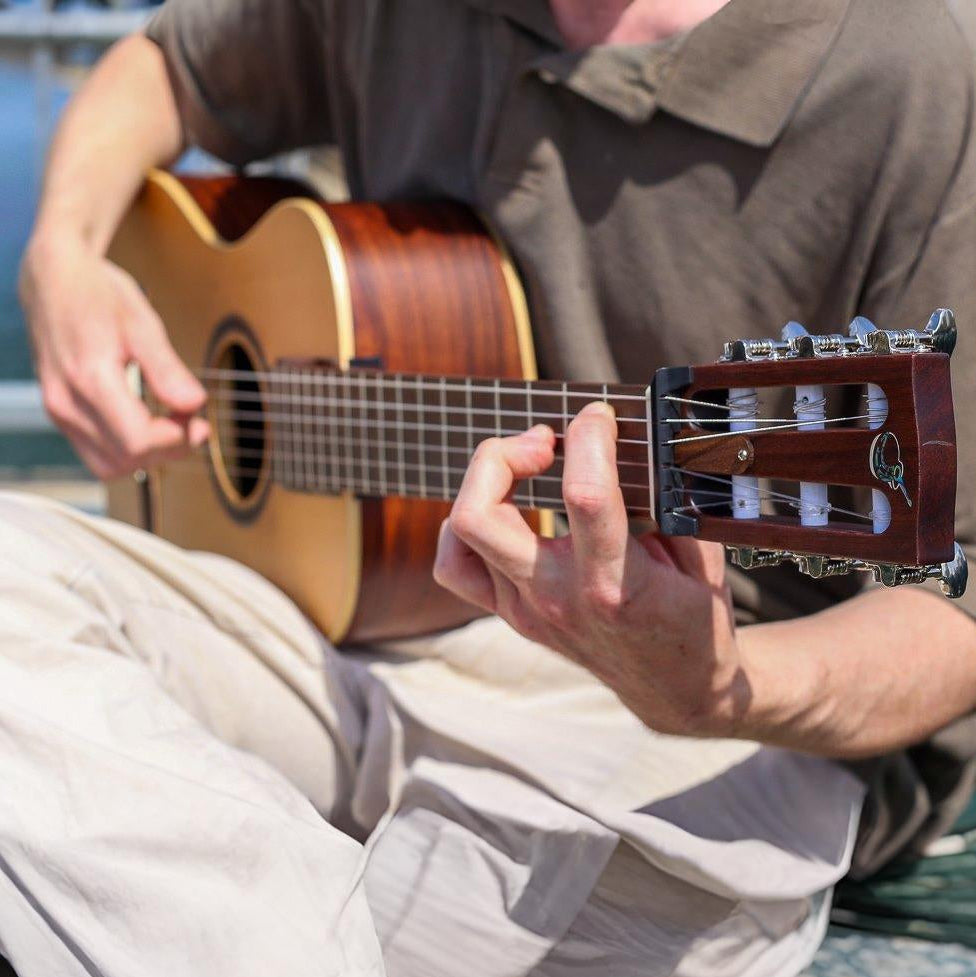

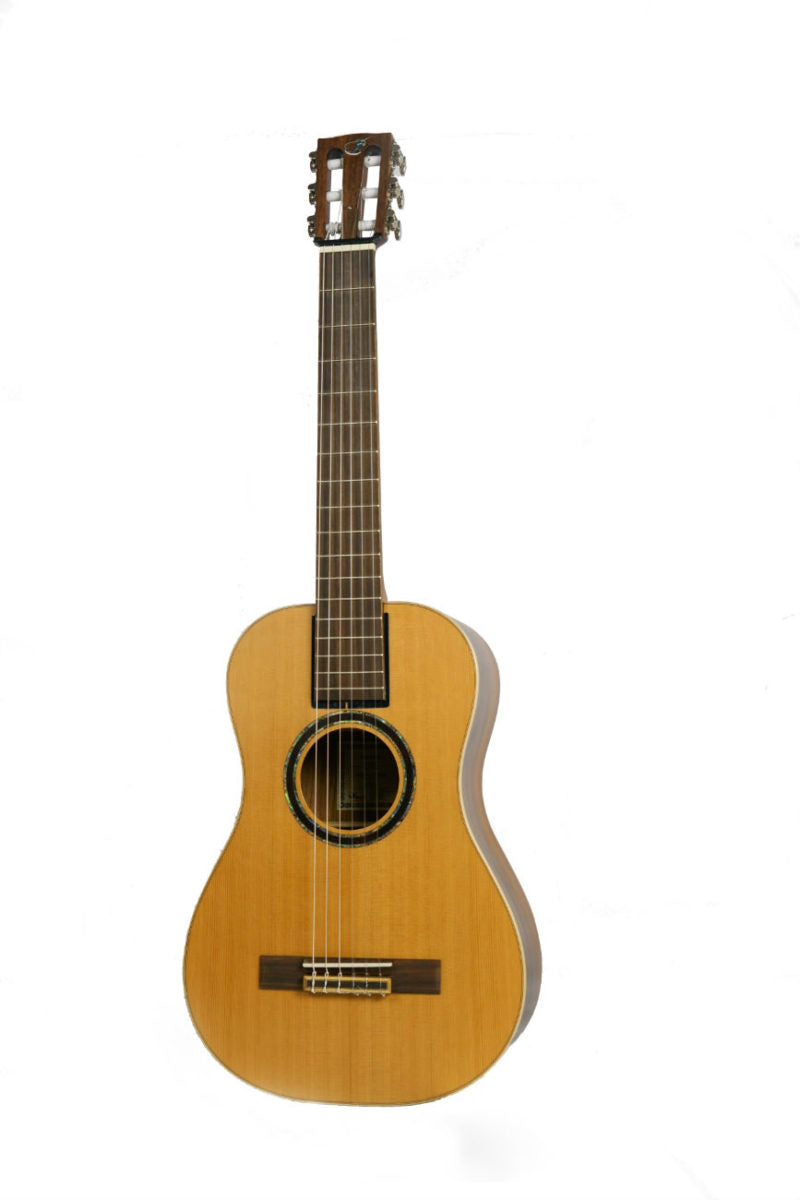

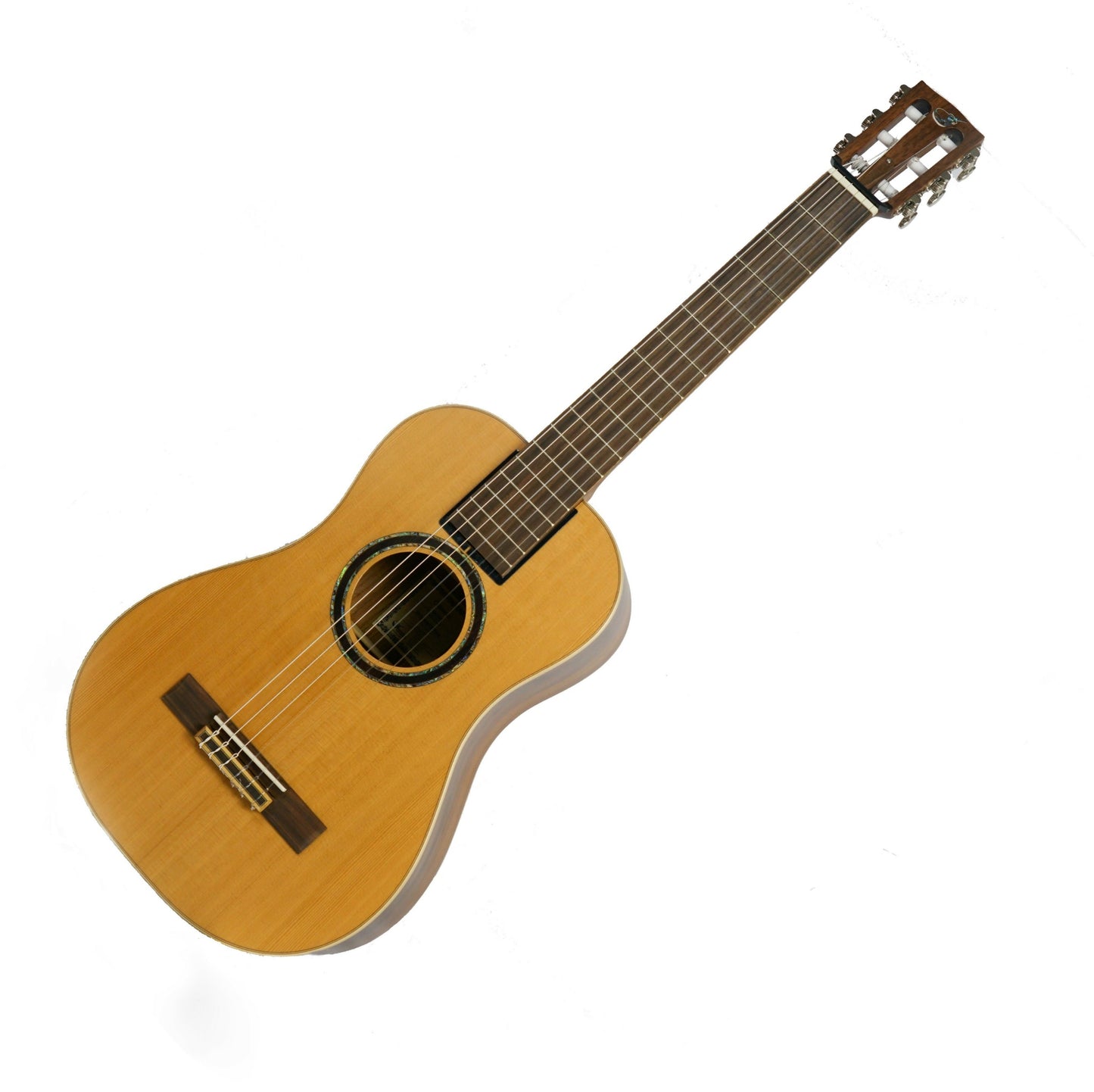

Solid Cedar / Pau Ferro Classical Travel Guitar - OC520

Solid Cedar / Pau Ferro Classical Travel Guitar - OC520

Regular price $999.00 AUD
Regular price Sale price $999.00 AUD
Sale Sold out
Price is GST inclusive
Shipping calculated at checkout.
  • Express Shipping available for special orders

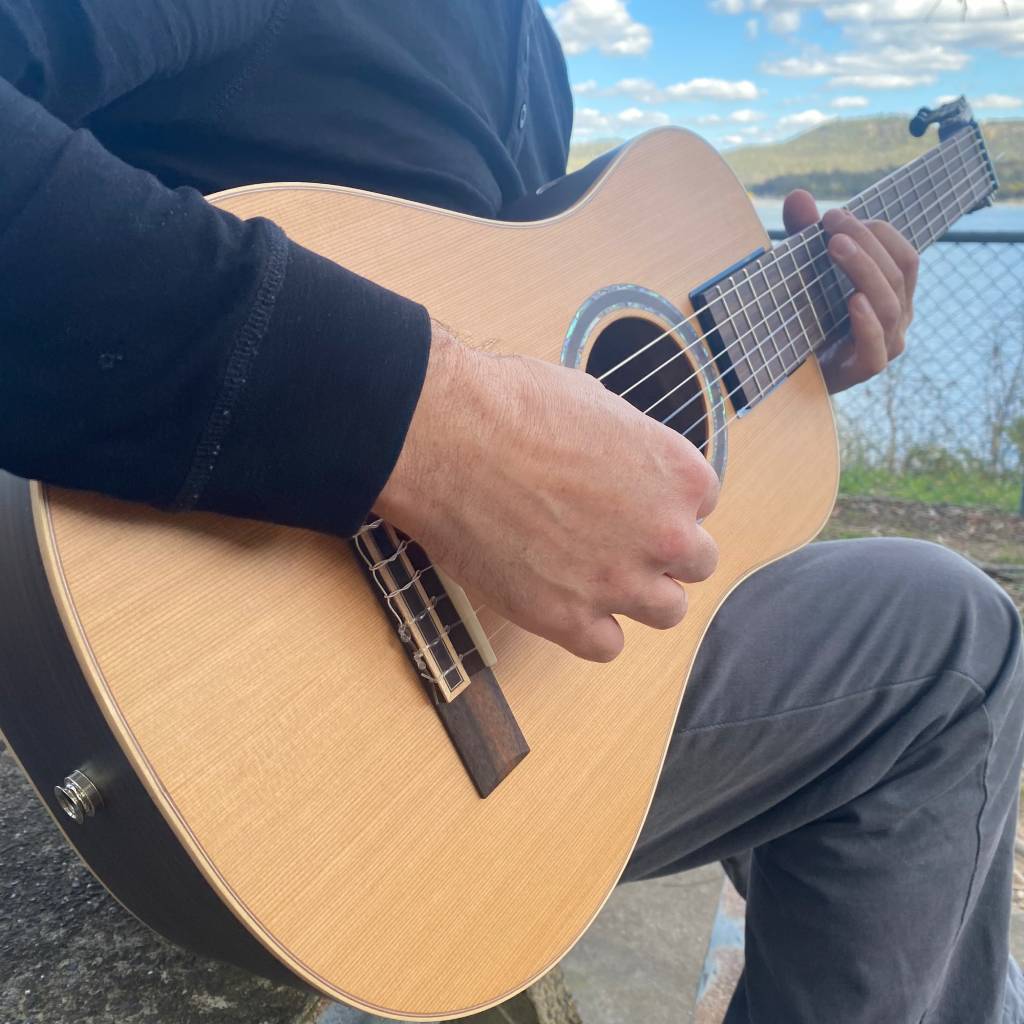

The Overhead OC520 is an amazing collapsible acoustic classical travel guitar with solid cedar top and pau ferro layered back and sides. It features a sound port in the upper bout and an inbuilt JourneyTek™ under-bridge passive 3-piezo transducer pickup system. It’s super ergonomic with the thicker Manzer© wedge and a smaller parlour sized body. The standard 52mm nut and 650mm scale, the Torres bracing, and a sound port make this guitar sound almost as loud as a standard classical guitar! Barre chords are easy, and the body shape makes for hours of playing without shoulder fatigue. It collapses to carry-on dims in our patented bag that has more than enough room for all your gear with amazing protection. Premium appointments make this guitar a great for classical guitarists who need a ultra-portable classical guitar that sounds and feels great to play!

  • This is a special order Item

Dimensions

Body Length: 45.7cm (18 in)
Lower Bout Width: 31.8 cm (12.5 in)

Weight

Weight: 1.9kg (3.8 lbs)
Weight With Case: 3.25kg (7.1 lbs)

View full details

Acoustic Life Review

More Details

Collapsible content

Additional Information

Designed for Travel

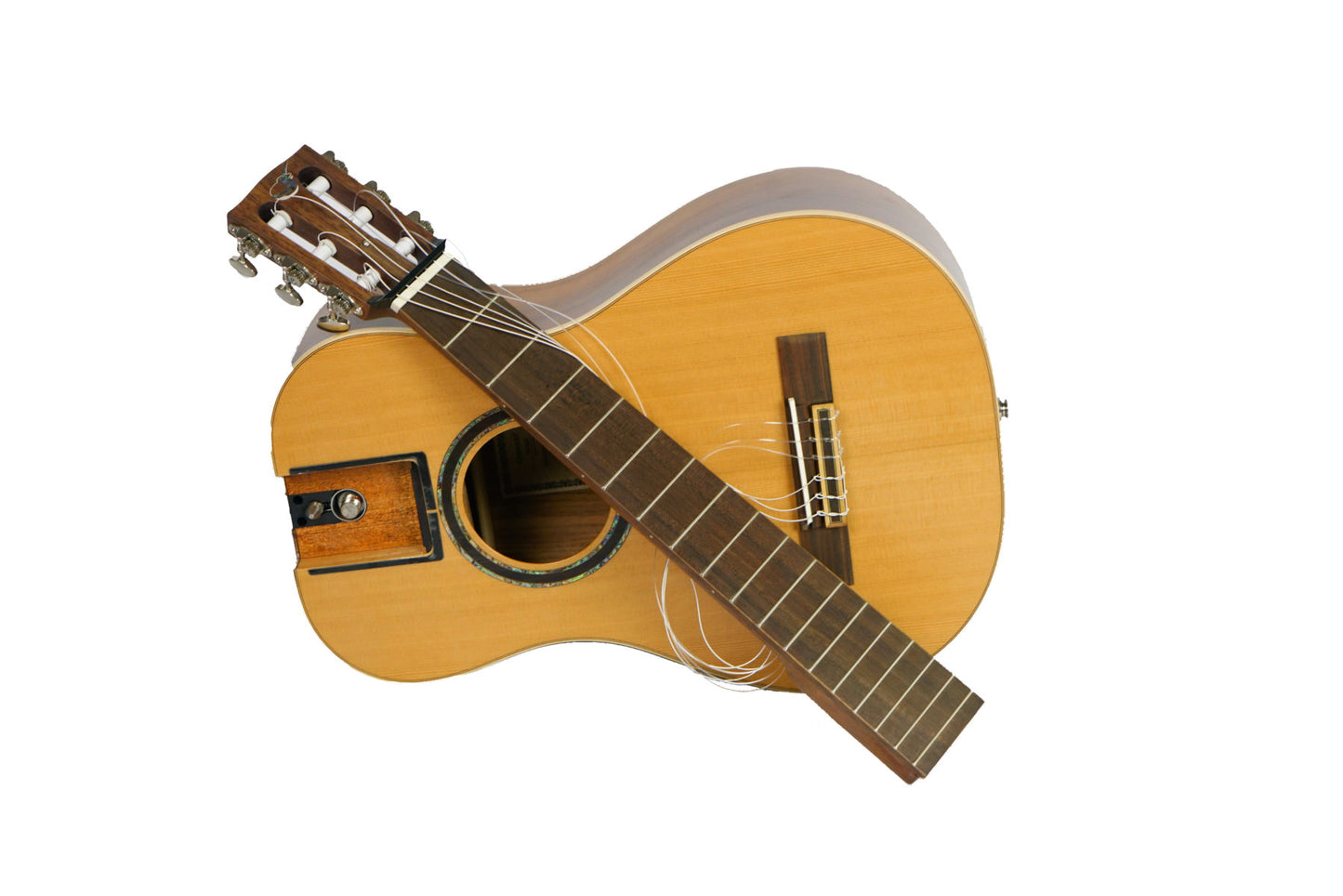

  • The Overhead travel guitar uses a patented collapsible neck system which allows for assembly/disassembly in a matter of seconds. [View Youtube Video]

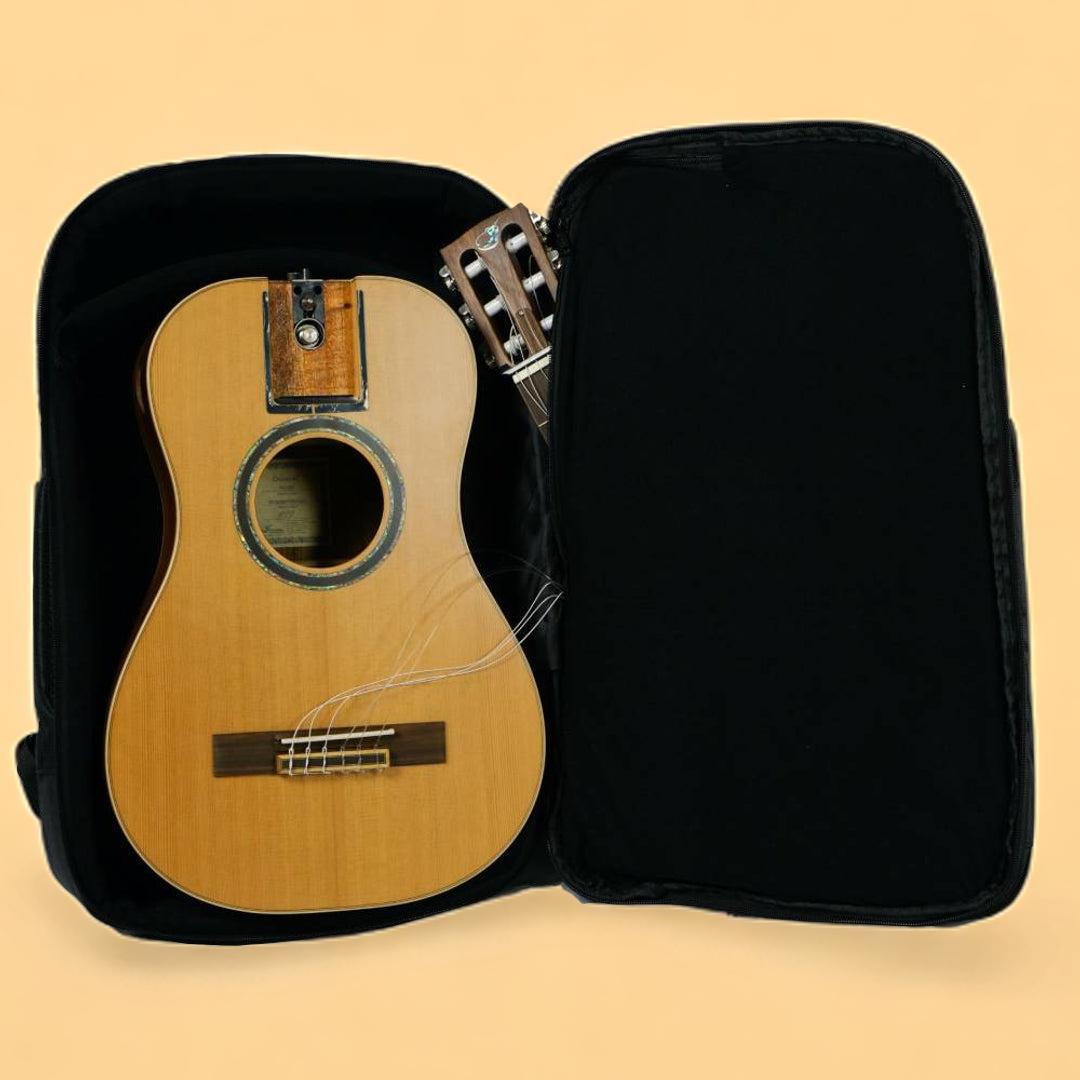

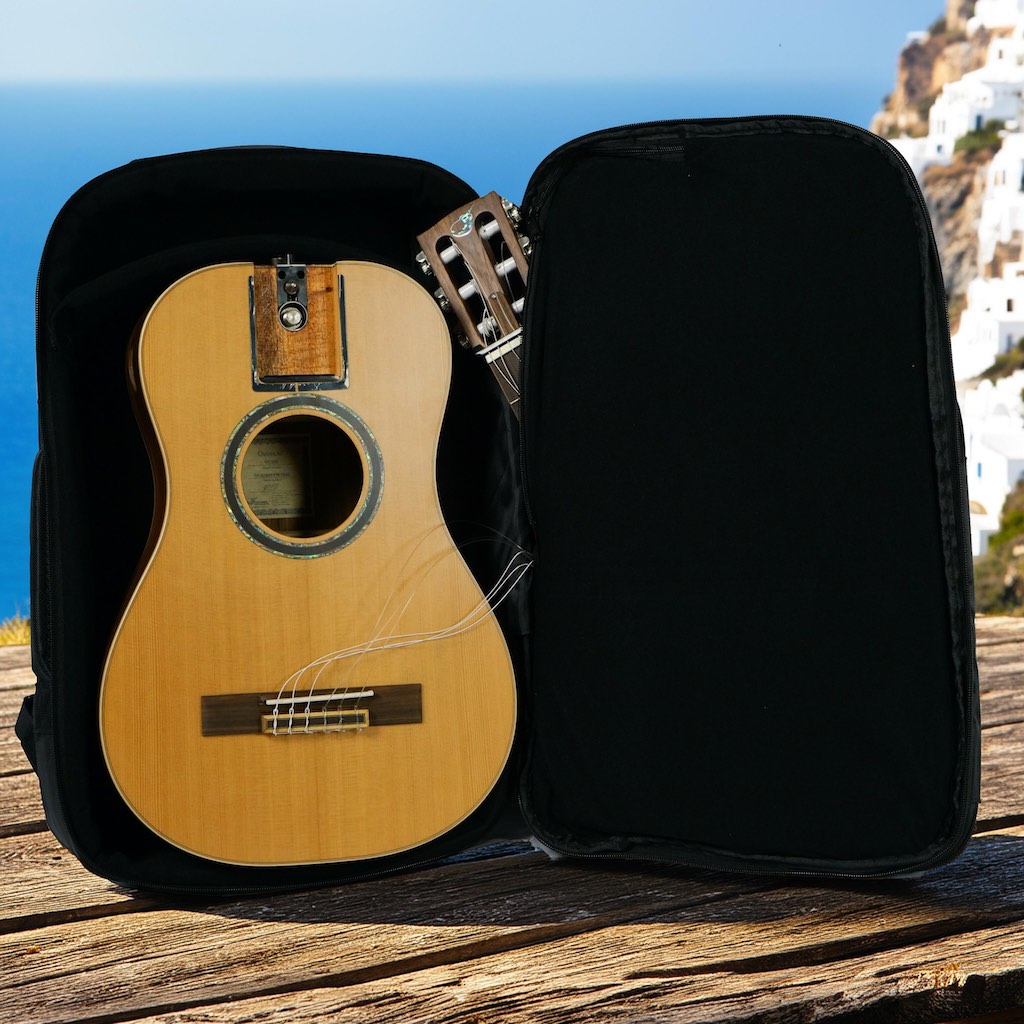

  • After packing in its travel backpack the Overhead travel guitar can be carried-on to most major airlines, easily fitting in the overhead bin compartment.
  • Travel backpack includes a TSA compliant laptop tablet fold-out panel which can be scanned by airport security without having to separately remove laptop.
  • Proprietary under-bridge transducer pickup system accurately amplifies the guitar and comes with all Overhead guitars.
  • You should tune each string down at least 1 full tone prior to disassembly for all nylon string collapsible models to prolong string life.

Full Tone in a Travel Body

  • The wedge design gives a lower shoulder/bout depth that’s deeper than a dreadnought, allowing the smaller body size to deliver great volume and booming bass.
  • Bone nut & saddle help produce the the tone preferred by classical guitarists.
  • Traditional sound-hole design with forward-shifted, classical Torres maximizes the resonance and volume of the soundboard.

Comfortable to Play

  • The wedge design angles the guitar into your body which places the guitar in a comfortable position for fingerboard access and viewing.
  • The dual-action steel truss-rod enables fine tuning of relief to suit any playing style.
  • Satin-finish low-c profile neck make this 650mm scale super comfortable to play.

Guitar Specifications

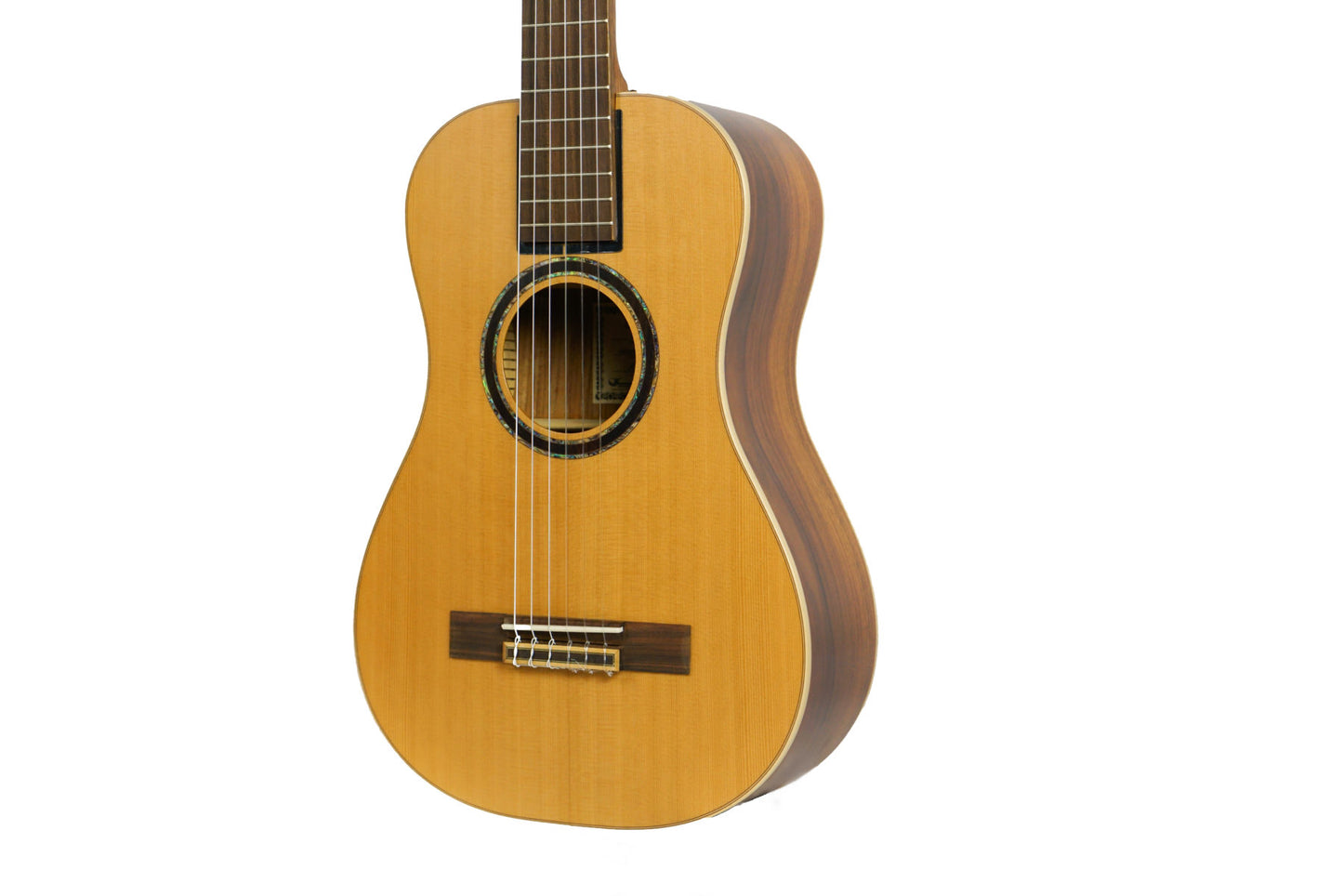

Proprietary Body Design:

Stylized 00 body shape

Center sound hole with Pau Ferro/MOP rosette

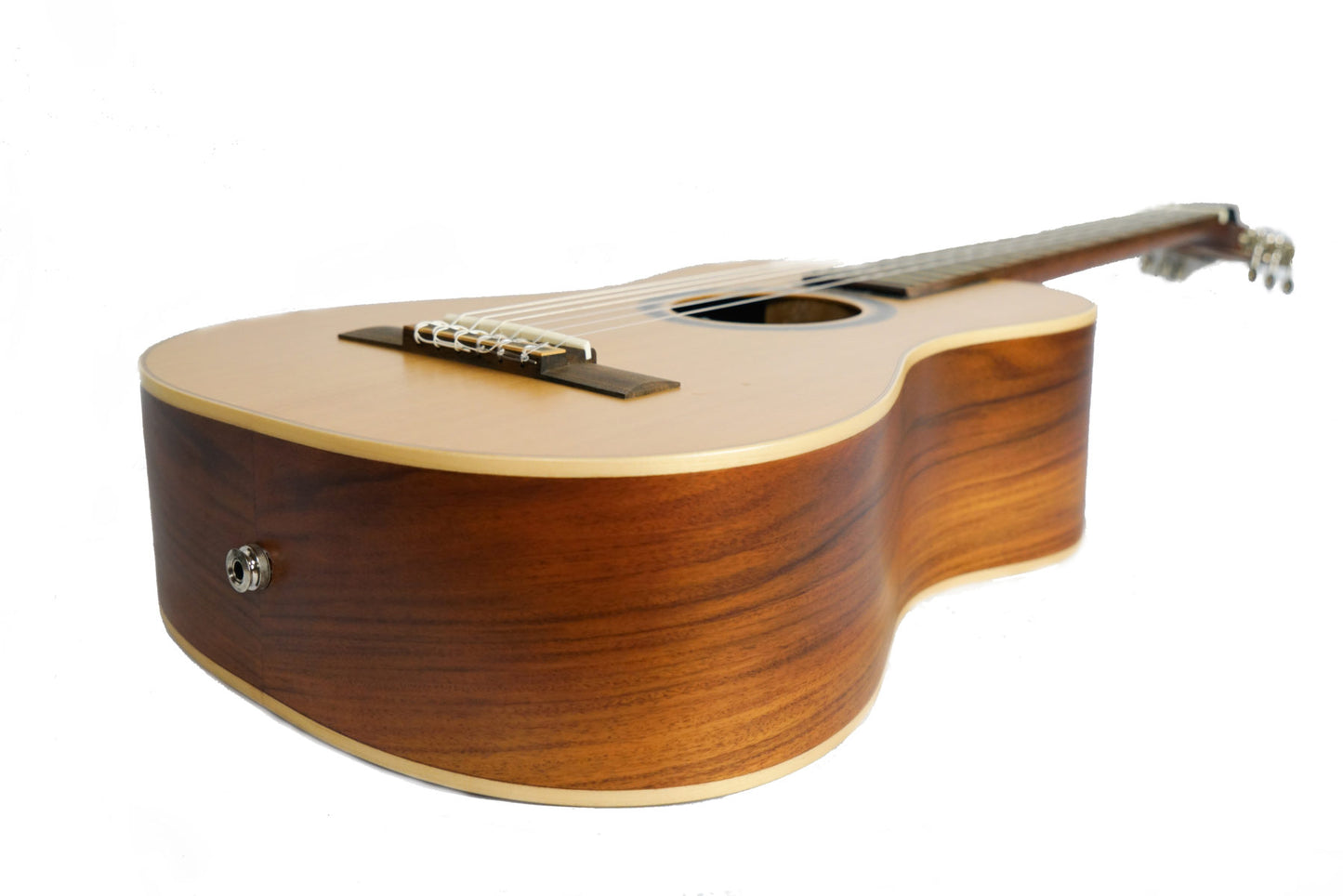

Wedge design for increased volume, comfort and efficiency

Soundboard:

Solid Cedar

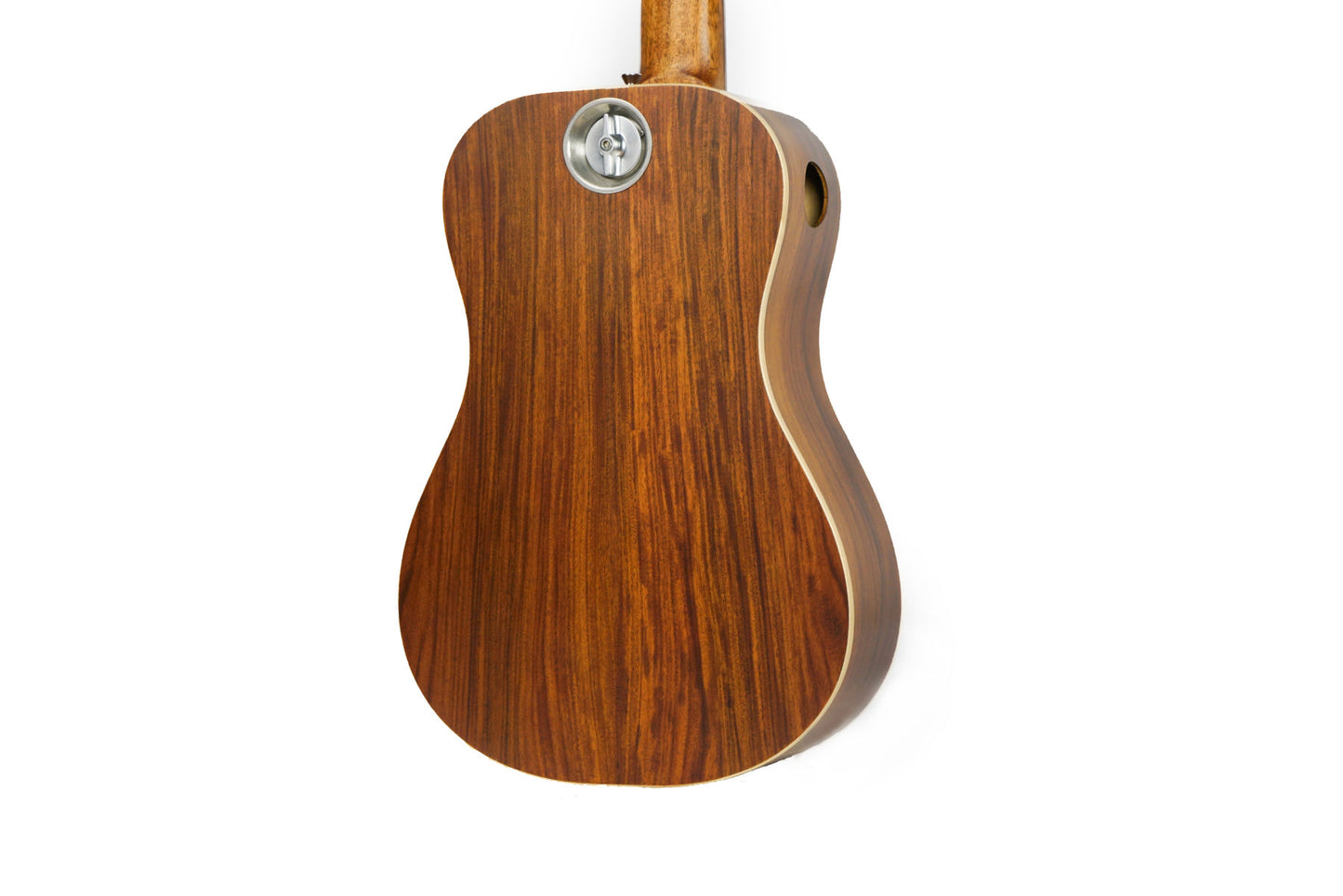

Back and Sides:

Premium Layered Pau Ferro

Bracing:

Classical Torres Bracing

Compound block for reduced weight and strengthened latch support

Binding and Markings:

MOP logo and position markings

Maple binding

Scale:

650mm Full Classical Scale

Finish:

Matte polyurethane on soundboard & Matte polyurethane on back and sides

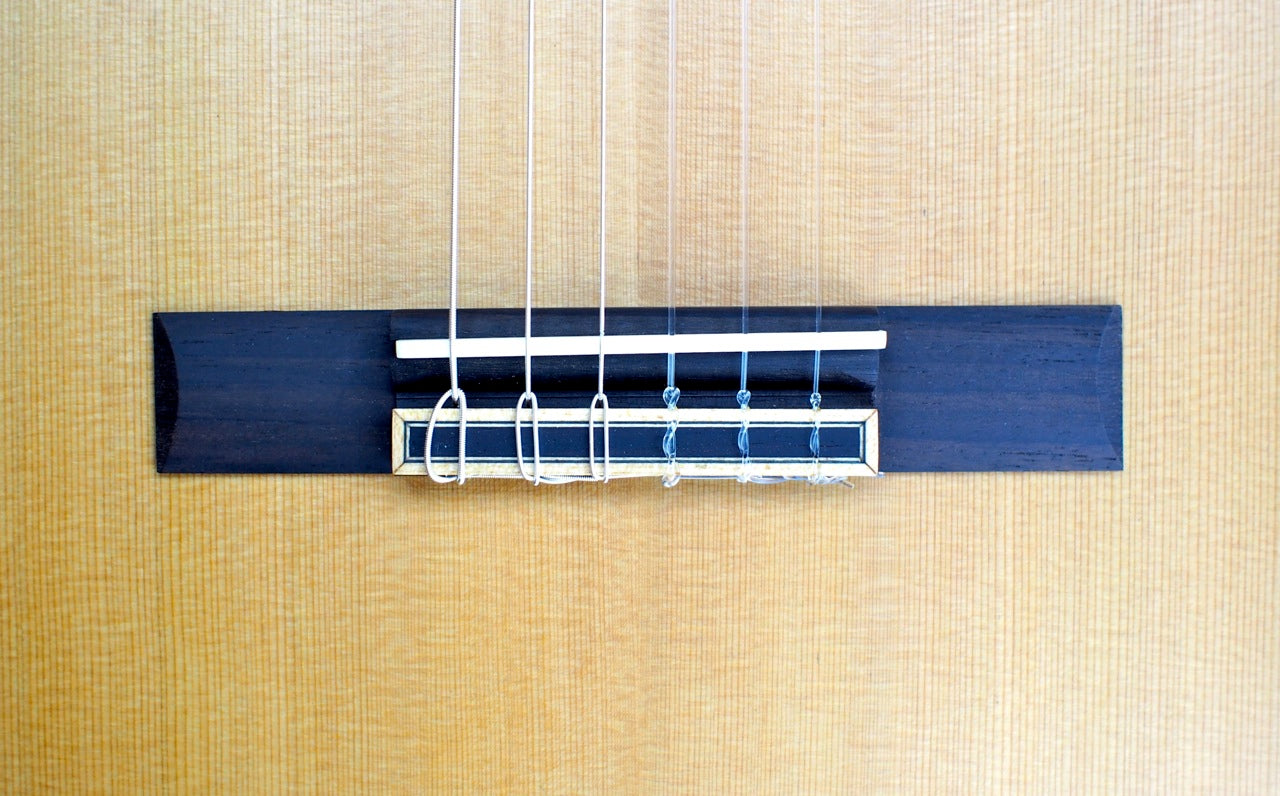

Bridge:

Ovangkol, high break-angle

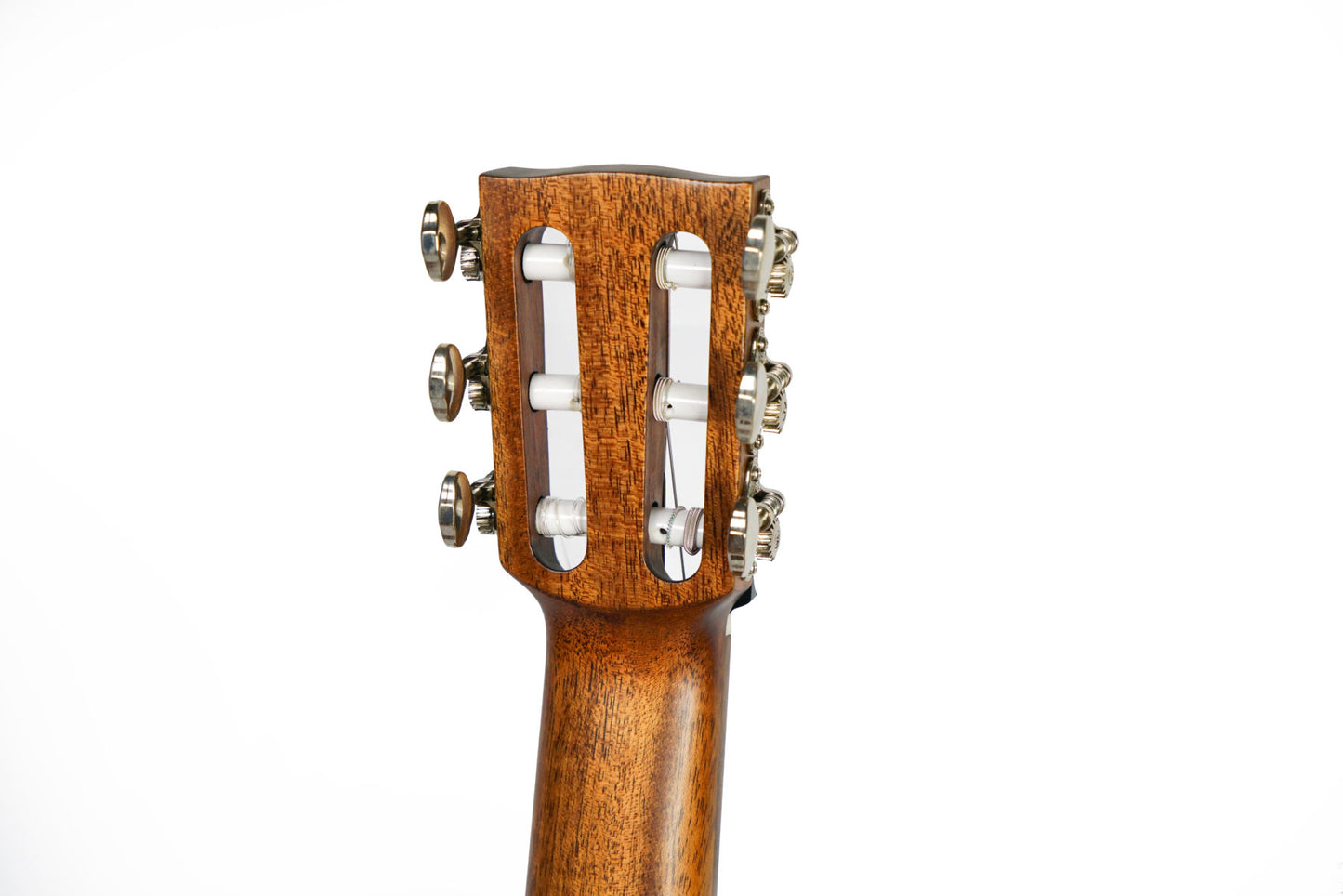

Tuners:

18:1 Precision Open Tuners

Electronics:

Included JourneyTek™ under-bridge passive 3-piezo transducer pickup system delivers accurate and clear amplification for any PA system or amp.

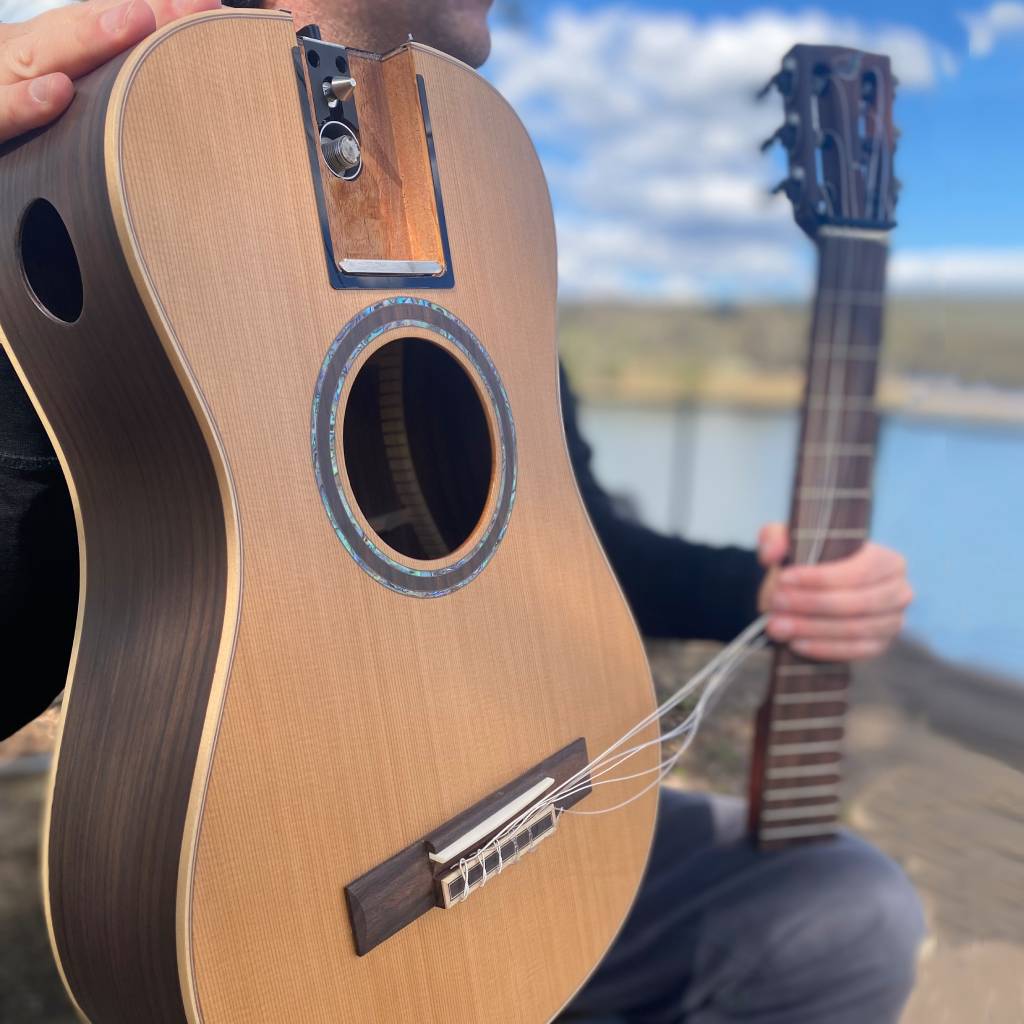

Removable Neck Assembly:

Stainless steel load-bearing components

Push-button release latch under neck

Large adjustment knob on back

Neck:

Carbon fiber reinforced Spanish shape with two-way adjustable truss rod

Solid African Mahogany

Neck width at nut: 52mm

12 Frets to body

17 Frets total

Fret Board:

Ovangkol

Medium brass fret wire

String Spacing:

42.5 mm at nut

59.7 mm at saddle

Compensated bone saddle

Strings:

Savarez 520B Low Tension

Guitar Dimensions and Weights:

Weight: 4.4 lbs (2.0kg)

Weight With Case: 7.4 lbs (3.3kg)

Maximum depth: 4.64 in (11.8cm)

Minimum Depth: 3.5 in (8.9 cm)

Body Length: 18 in (45.7cm)

Lower Bout Width: 12.5 in (31.8 cm)

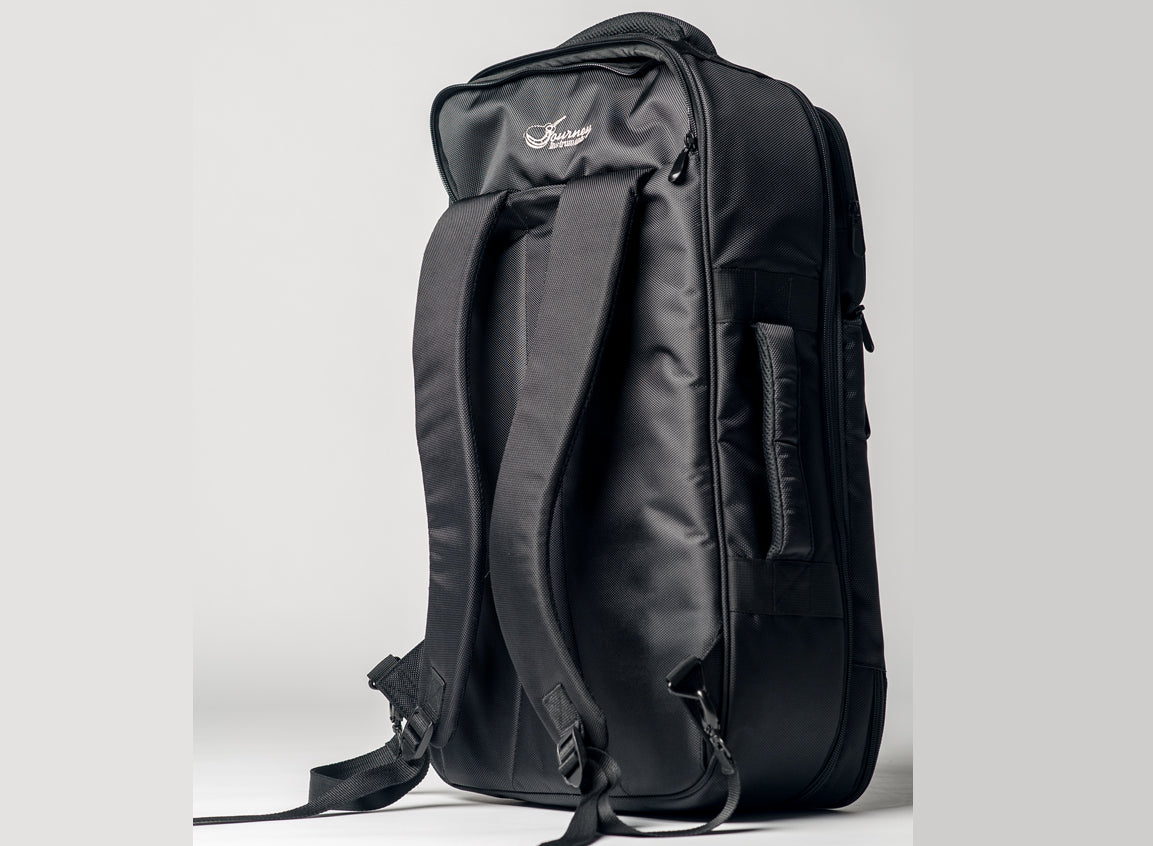

Travel Backpack Specifications

Tech Travel Ready:

TSA compliant 14-inch computer compartment for optimal airport security inspection

Easy-access tablet pocket for up to 9.5 inch tablet devices

All- Premium Material Construction:

Extra-durable Ballistic Polyester external case with premium polyester and velour lining

Extra-padded Body compartment with premium velour

Internally-accessible padded neck compartment with premium velour and string slot

Padded string panel with strings positioning tab

Padded Top and Side handles

Extra Compartments for Your Journey:

Internal/externally accessible compartment for accessories

Additional external topside pocket for additional accessories

Additional elastic pockets in computer compartment

Hideaway, reinforced padded backpack straps with padded back

Maximum Case Dimensions: L*W*H: 22*14*9 in ( 55.9*35.5* 22.9 cm)

UPC:643485843382
