Designed for Travel

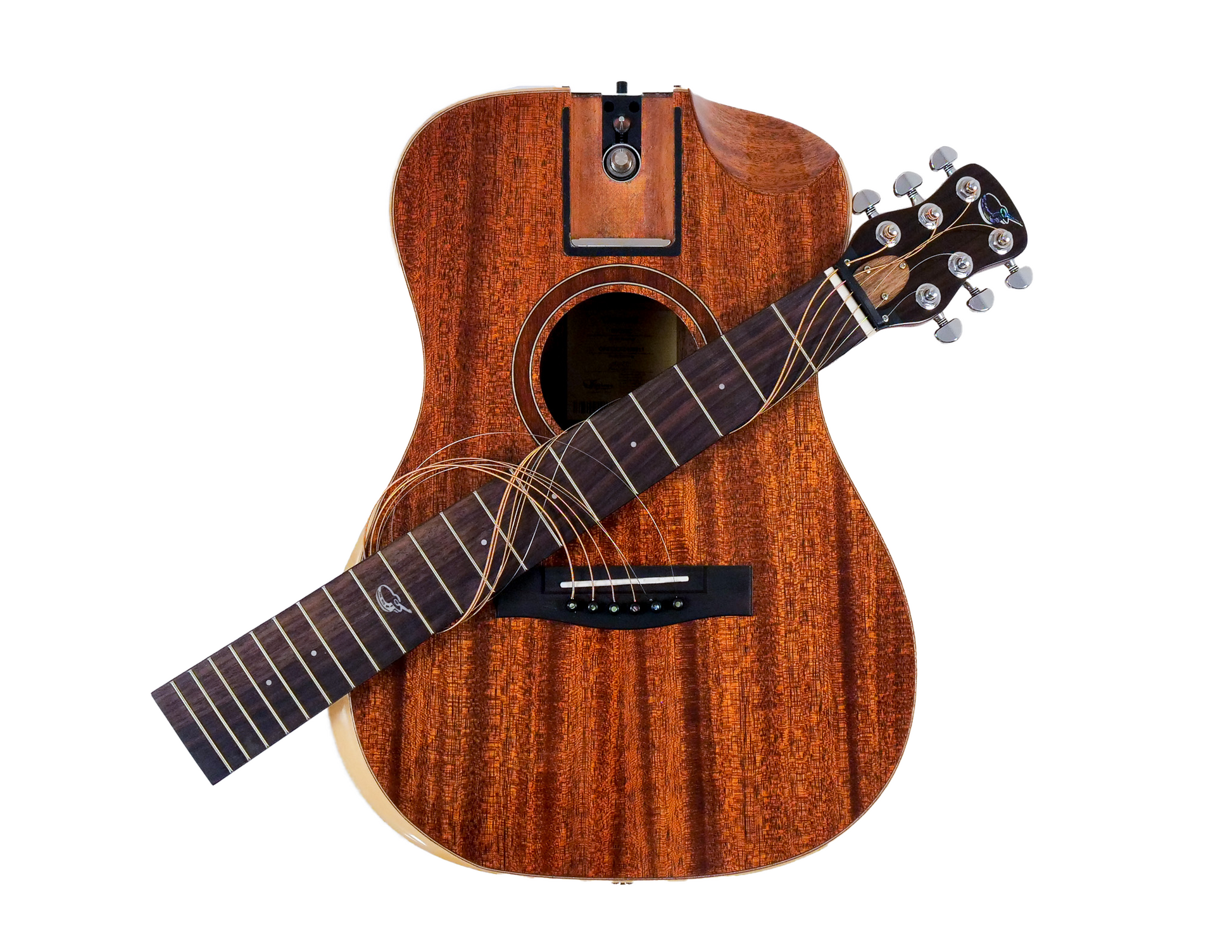

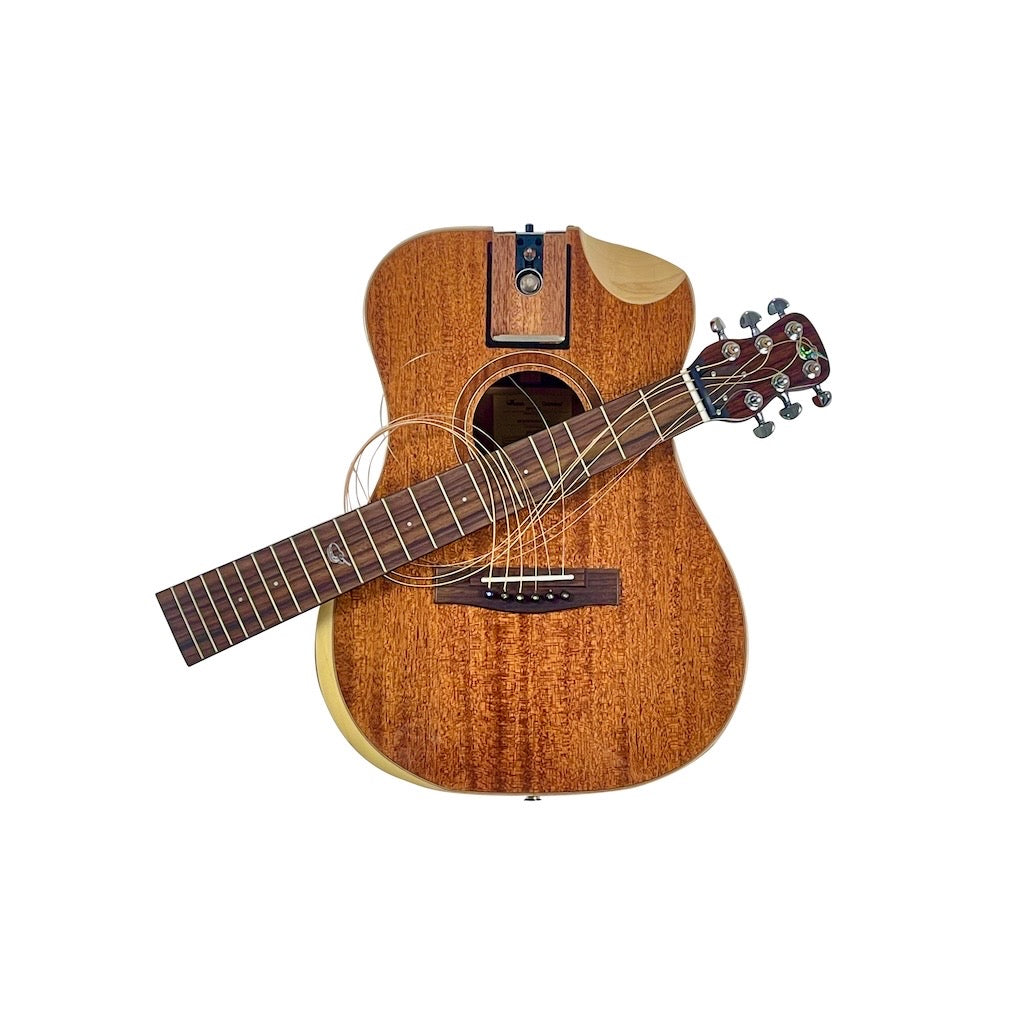

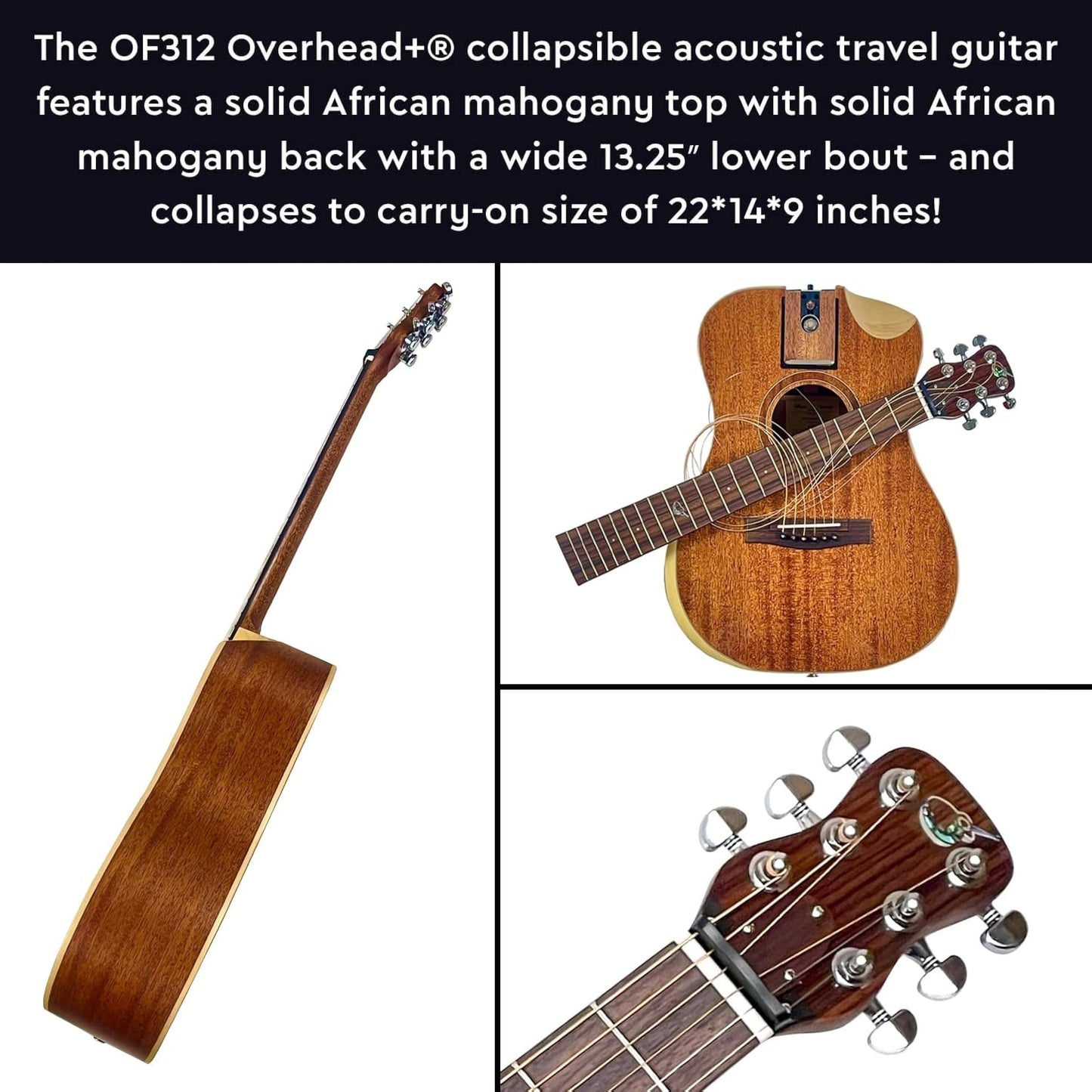

- The Overhead travel guitar uses a patented collapsible neck system which allows for assembly/disassembly in a matter of seconds. [View Youtube Video]

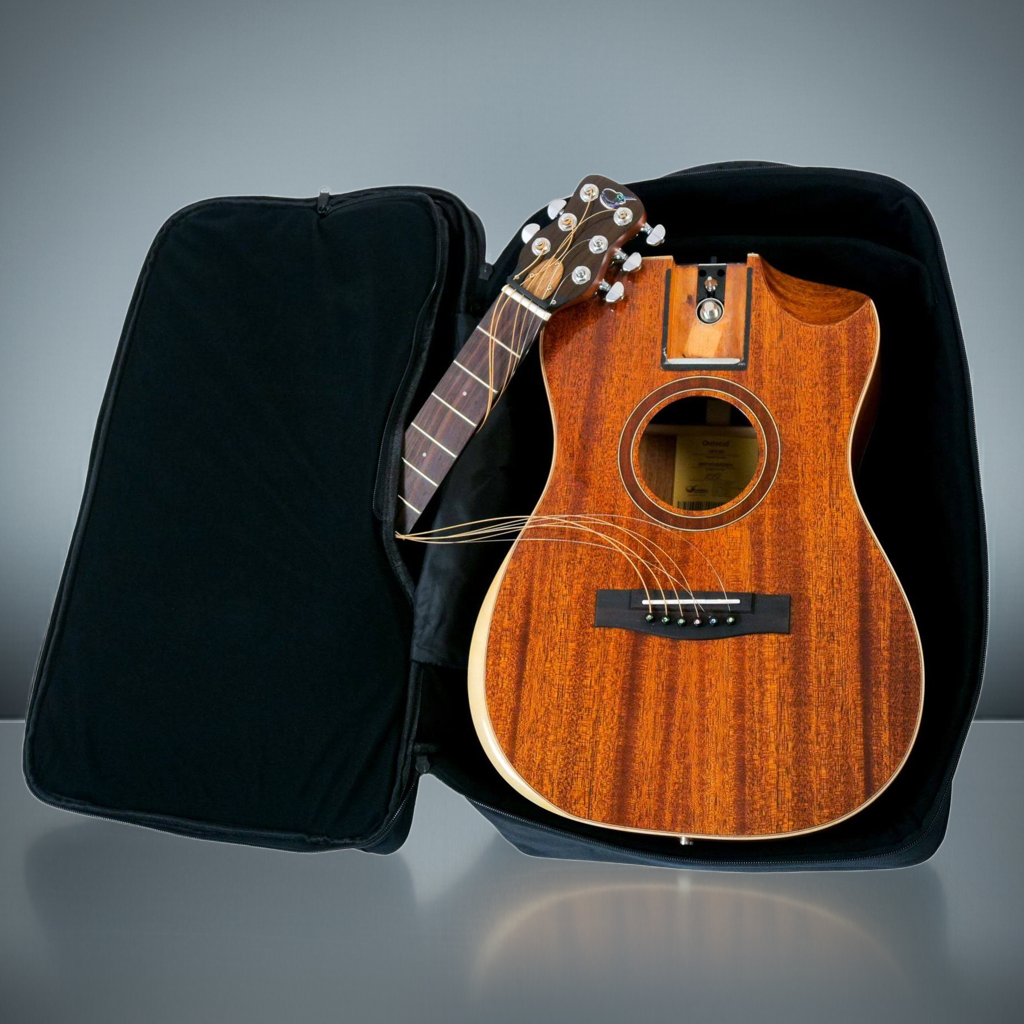

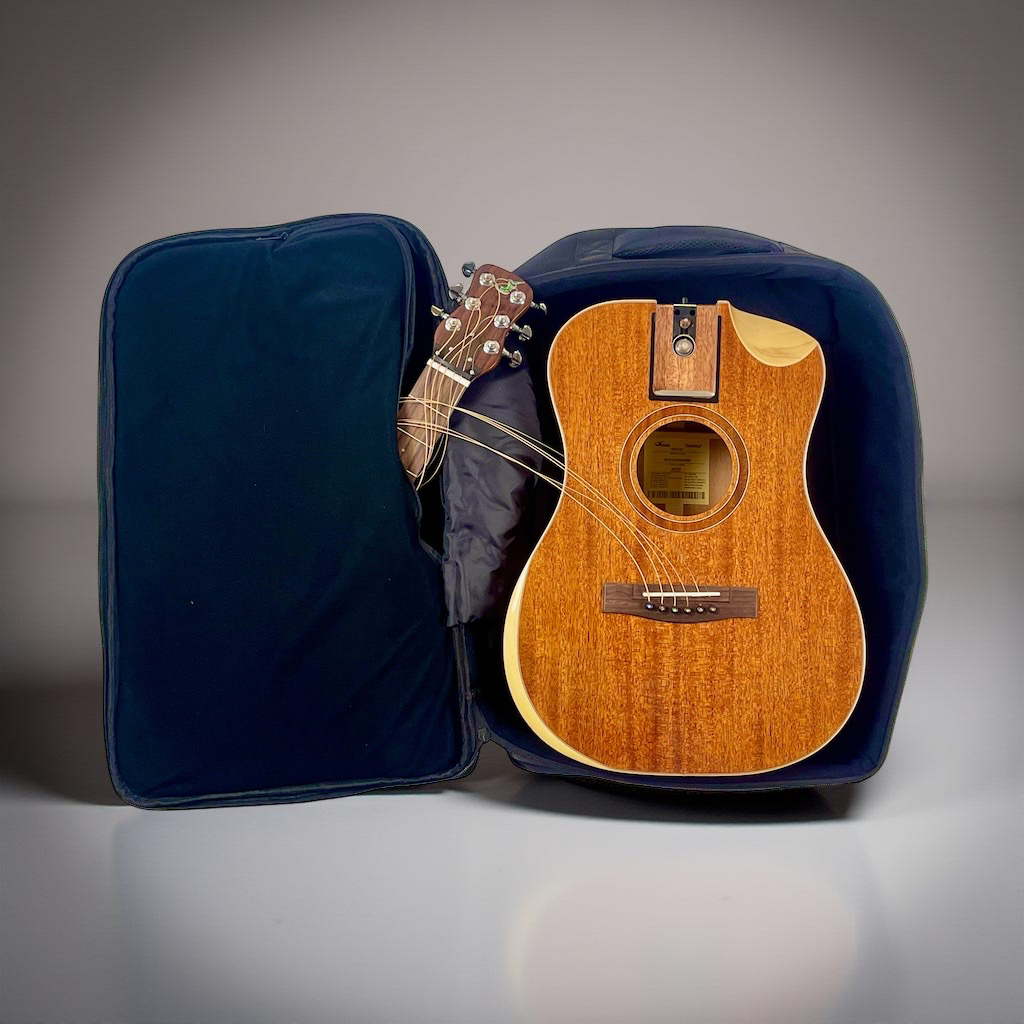

- After packing in its travel backpack the Overhead travel guitar can be carried-on to most major airlines, easily fitting in the overhead bin compartment.
- Travel backpack includes a TSA compliant laptop tablet fold-out panel which can be scanned by airport security without having to separately remove laptop.
- Proprietary under-bridge transducer pickup system accurately amplifies the guitar and comes with all Overhead guitars.
Full Tone in a Travel Body

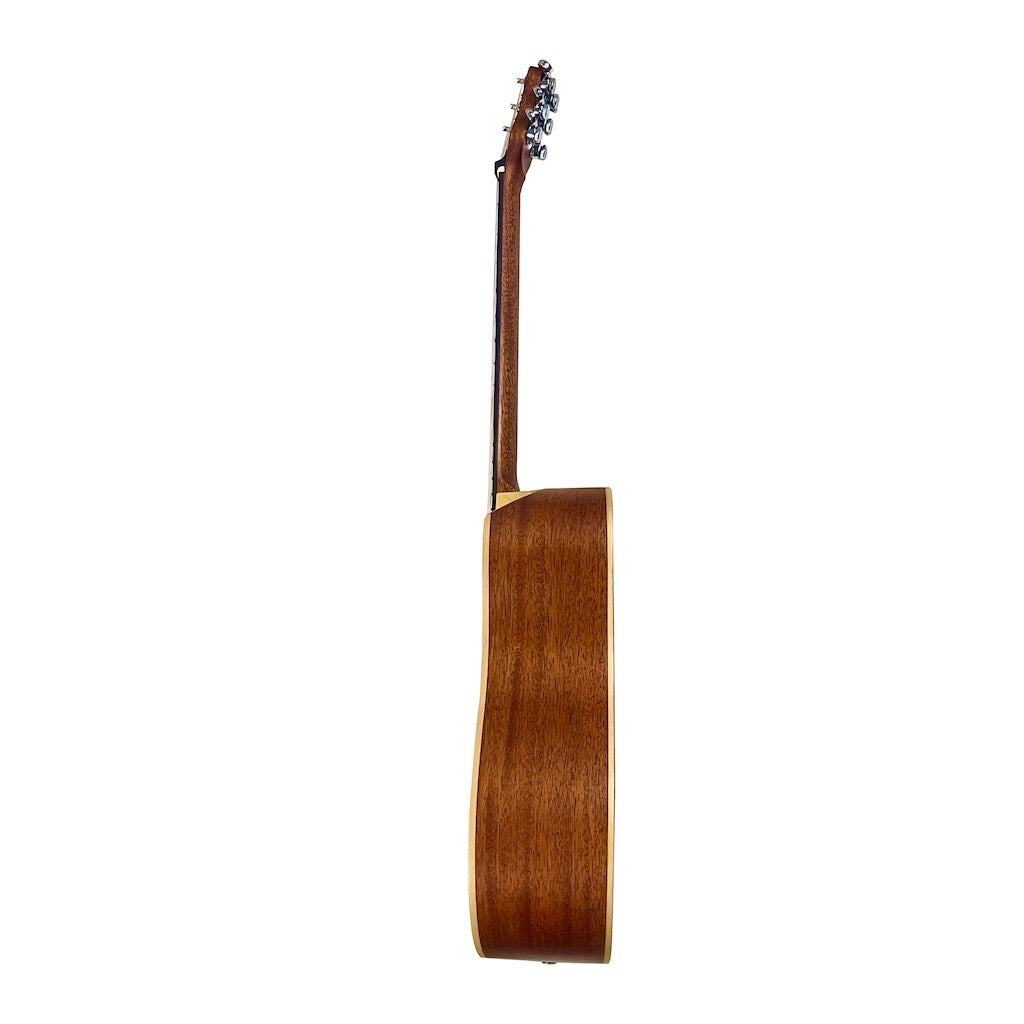

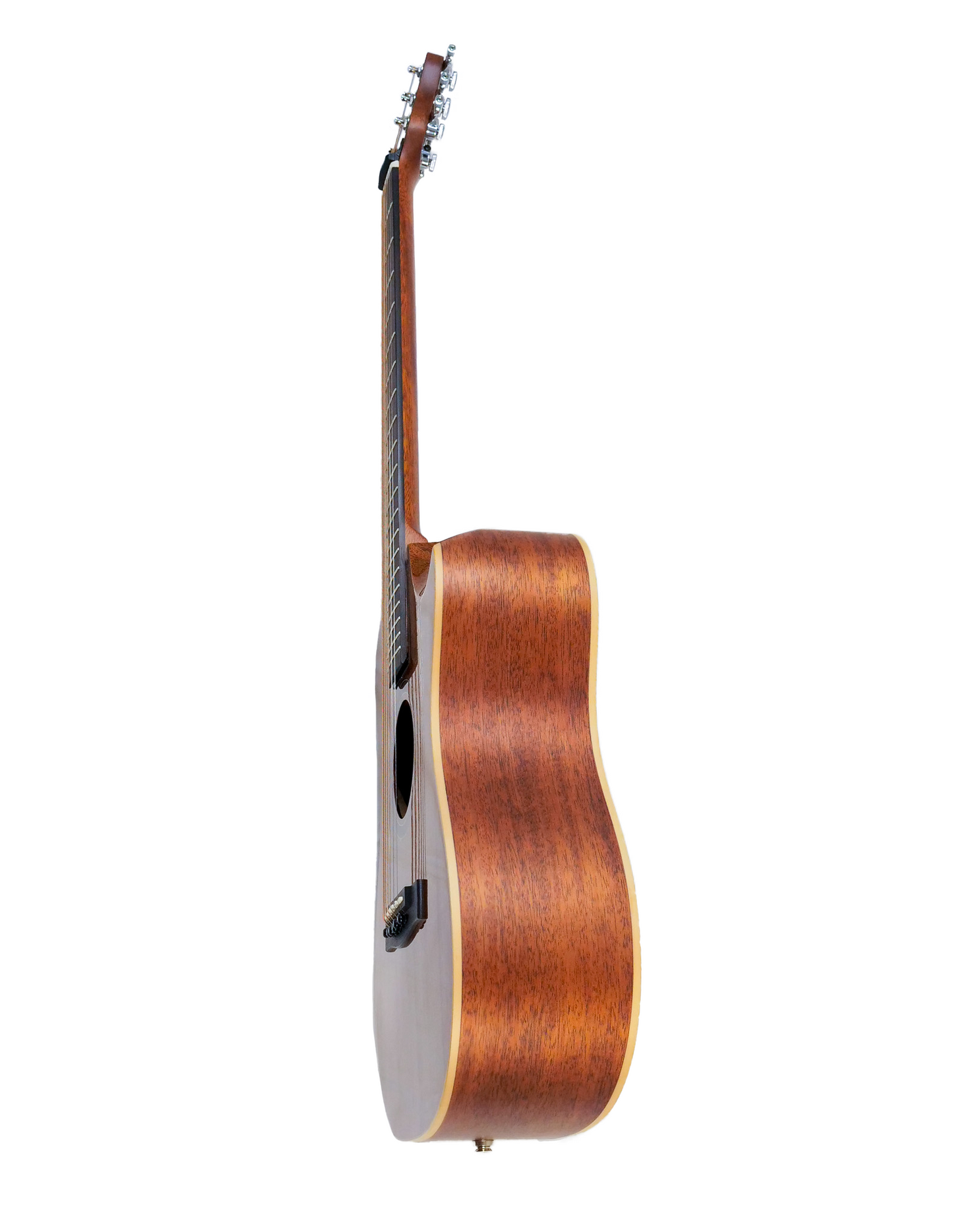

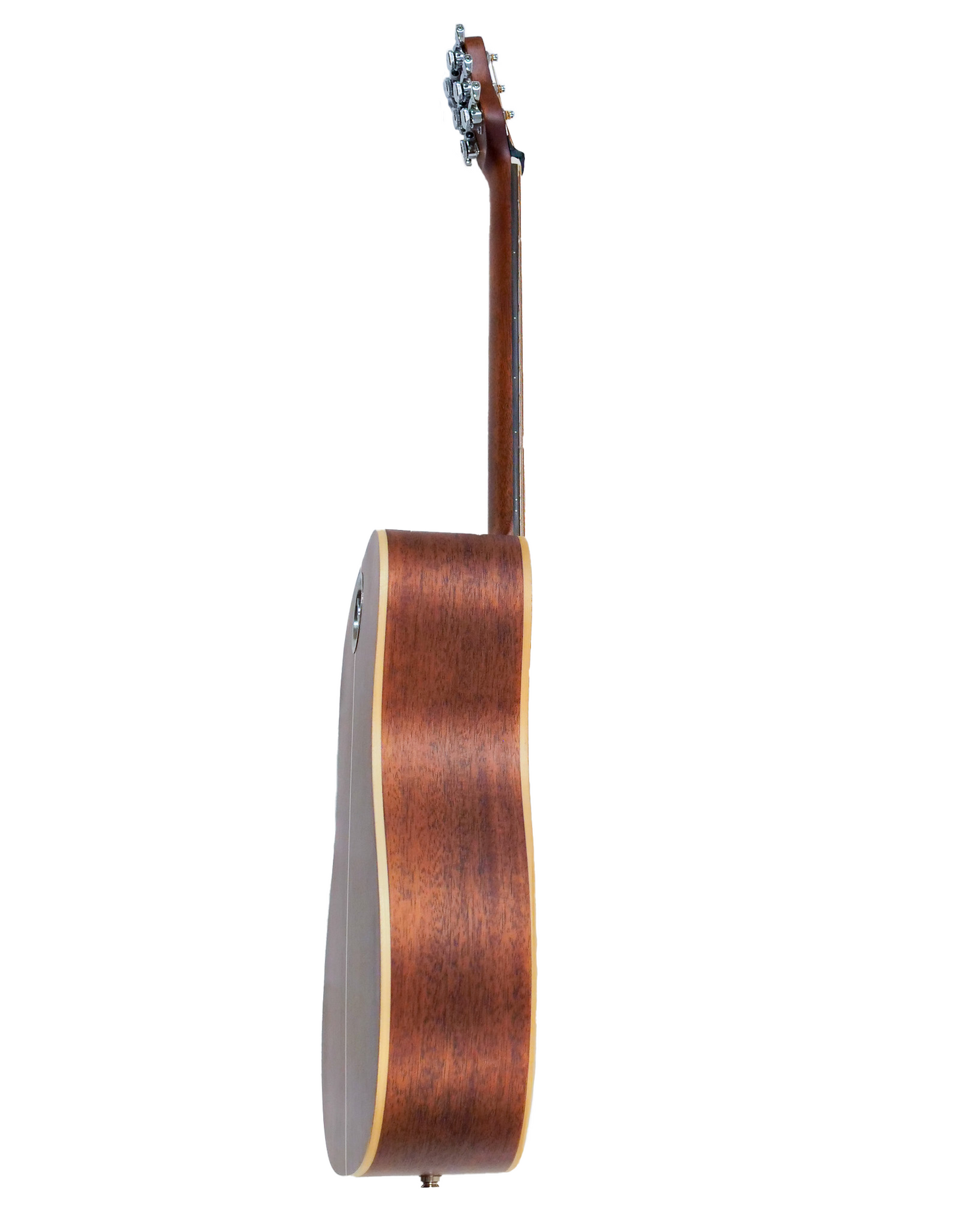

- The wedge design gives a lower shoulder/bout depth that’s deeper than a dreadnought, allowing the smaller body size to deliver great volume and booming bass.
- Beveled arm rest makes playing for long stretches a breeze.
- Bone nut, compensated bone saddle, and ebony bridge pins all help produce the the tone preferred by acoustic guitarists.
- Traditional sound-hole design with forward-shifted, tapered X-bracing maximizes the resonance and volume of the soundboard.
Comfortable to Play
- The wedge design angles the guitar into your body which places the guitar in a comfortable position for fingerboard access and viewing.
- Beveled arm rest makes playing for long stretches a breeze.
- Scoop-Away for easy access to upper frets.
- The dual-action steel truss-rod enables fine tuning of relief to suit any playing style.
- Satin-finish low-c profile neck make this 24.5 inch scale super comfortable to play.
Guitar Specifications

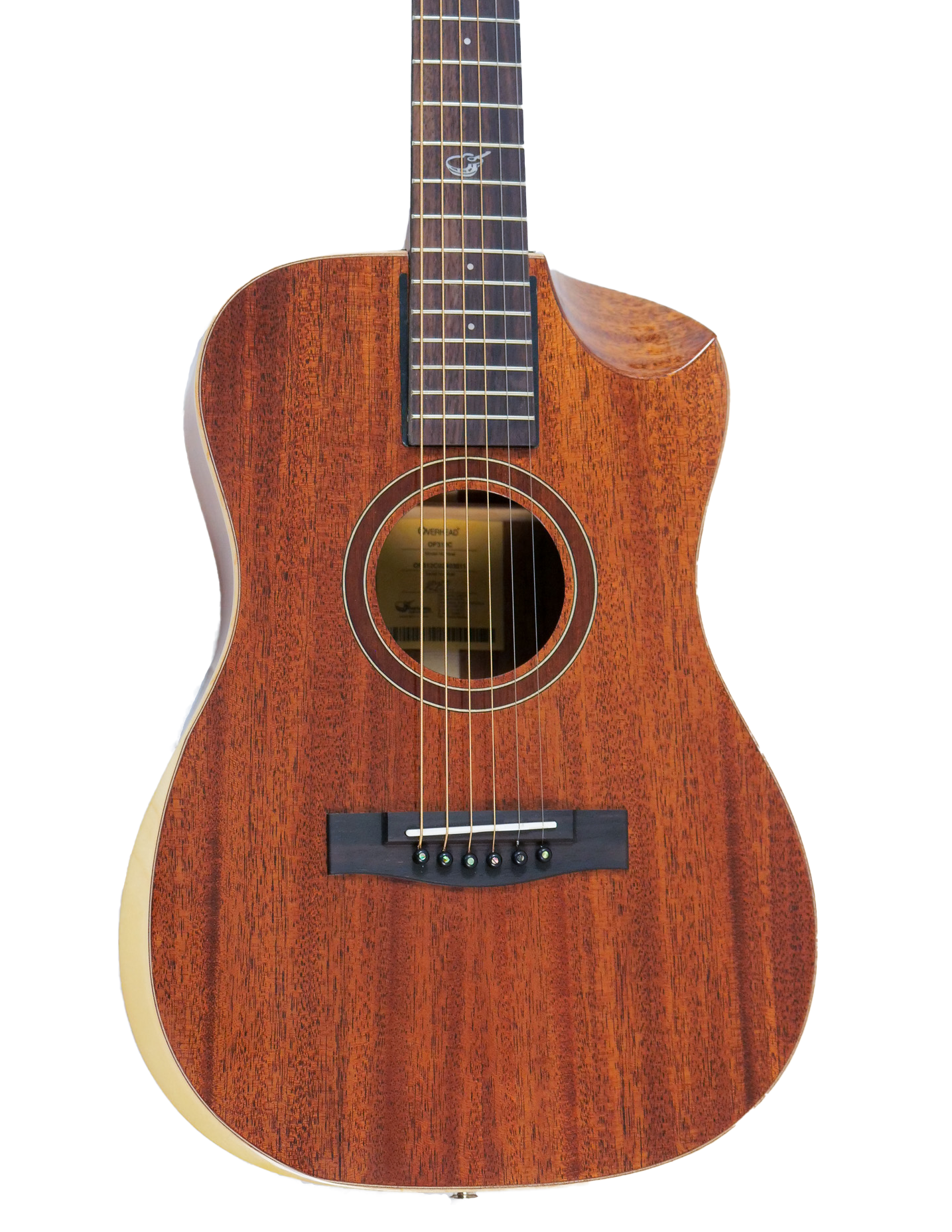

Proprietary Body Design:
Stylized 00 body shape
Center sound hole with African Mahogany rosette
Wedge design for increased volume, comfort and efficiency
Soundboard:
Hand-selected premium solid African Mahogany
Scoop-Away
Beveled Arm Rest
Back and Sides:
Premium solid African Mahogany back, laminate sides
Bracing:
Forward-shifted tapered X-bracing
Compound block for reduced weight and strengthened latch support
Binding and Markings:
MOP logo and position markings
Maple binding
Scale:
24.5 in (622.3 mm)
Finish:
Gloss Soundboard,
Satin Back and Sides
Bridge:
Rosewood, high break-angle

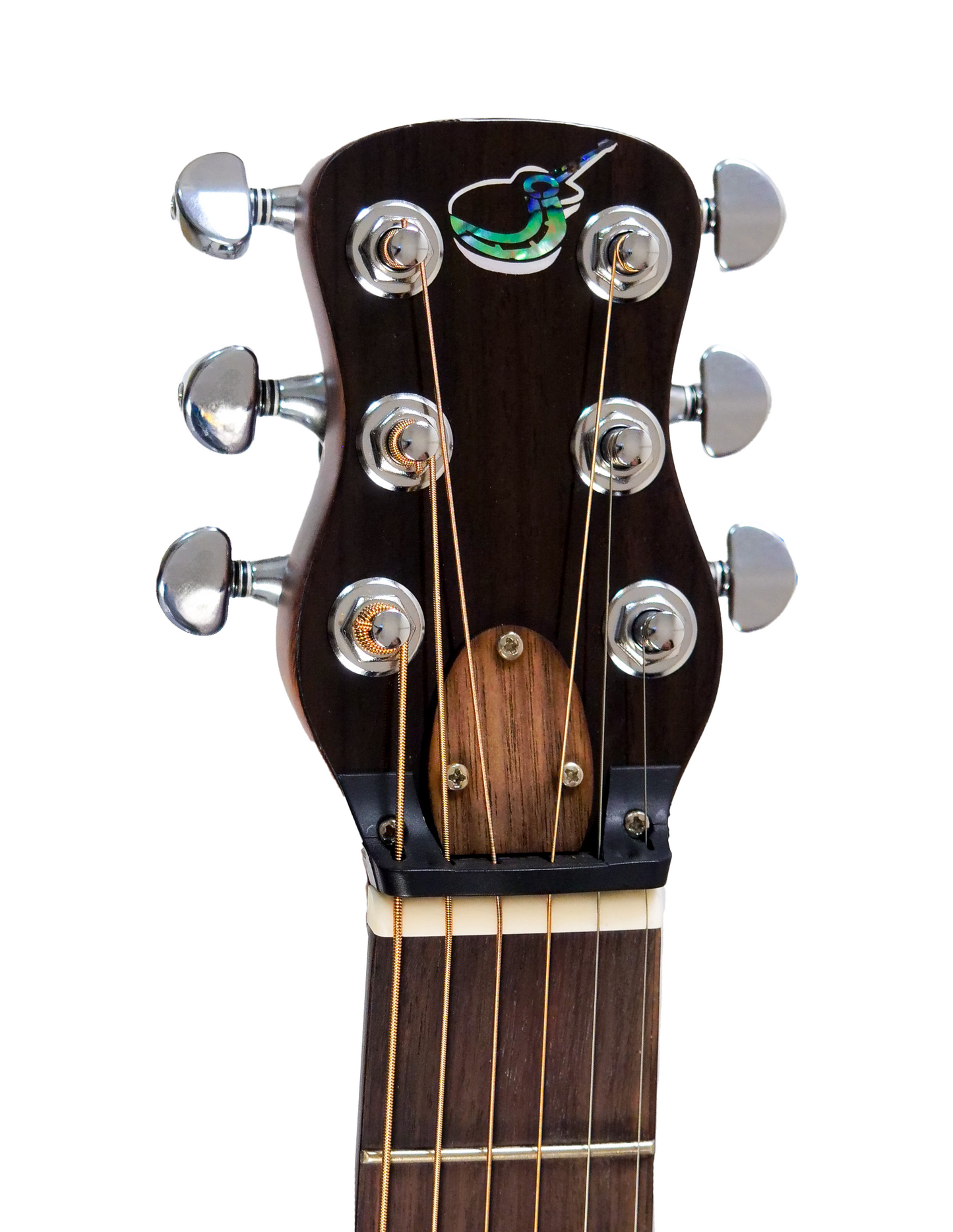

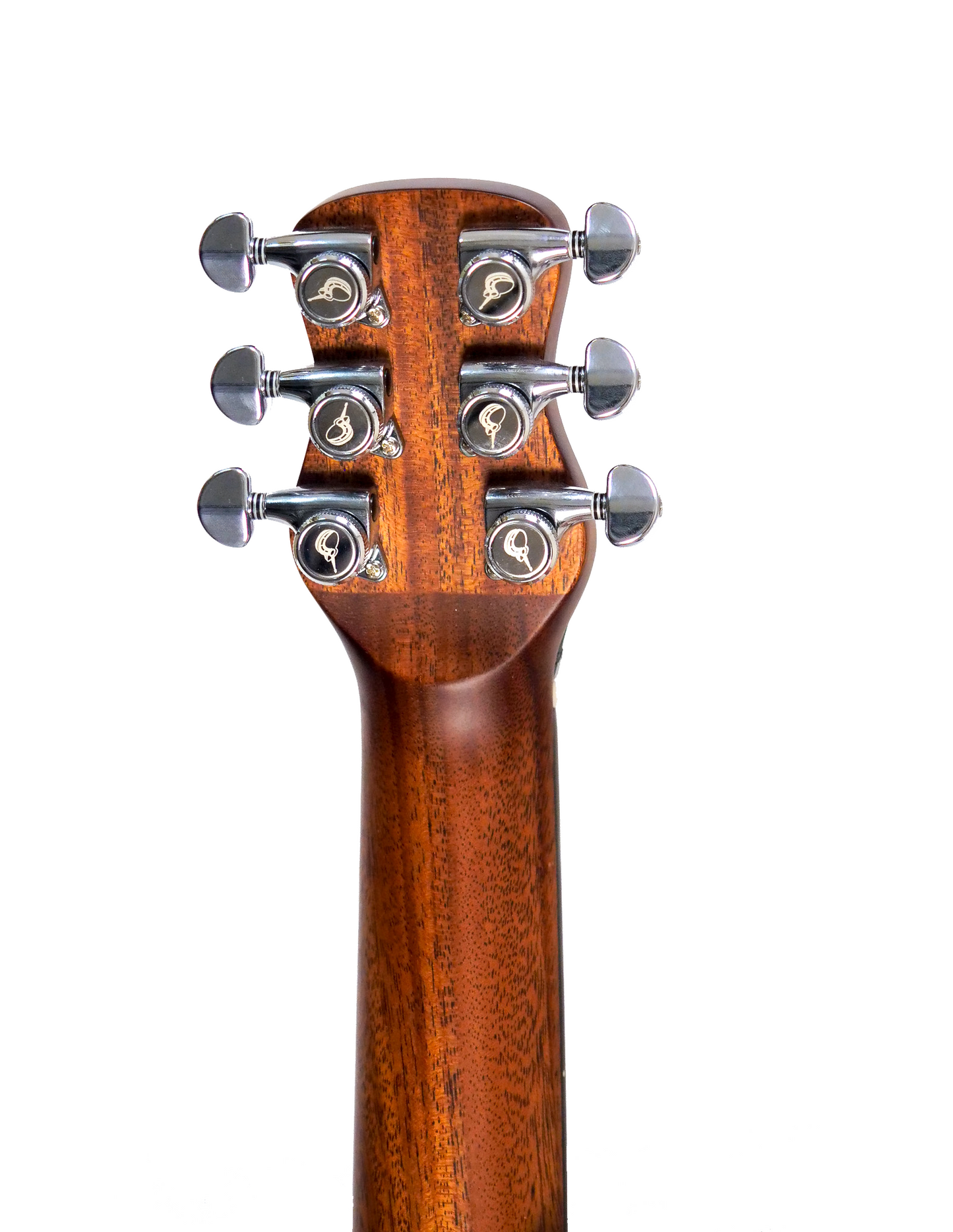

Tuners:
Grover® 18:1 or Journey 18:1 Locking Tuners
Electronics:
Included JourneyTek™ under-bridge upgradeable passive 3-piezo transducer pickup system delivers accurate and clear amplification for any PA system or amp.
Volume Wheel for pickup
Removable Neck Assembly:
Stainless steel load-bearing components
Push-button release latch under neck

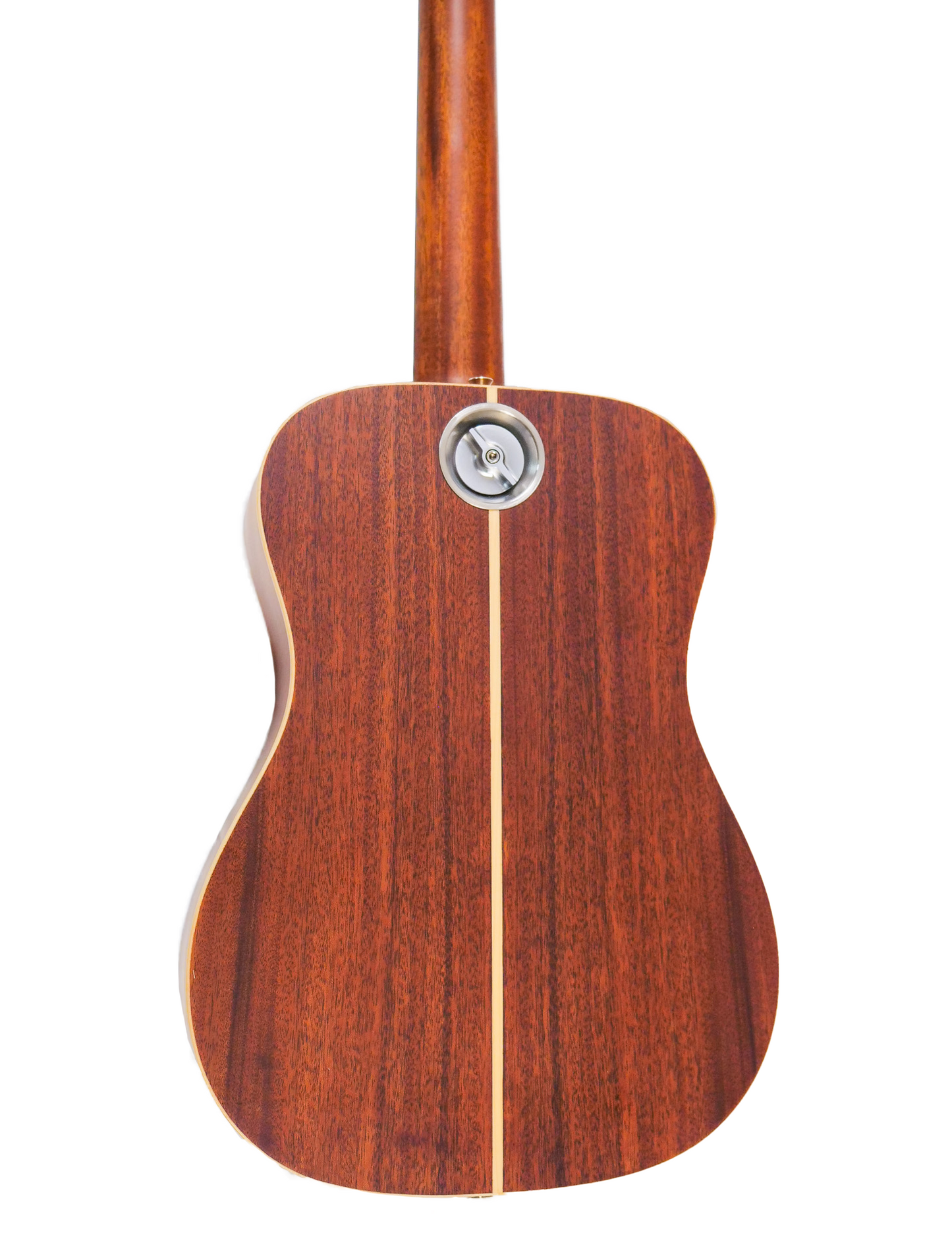

Large adjustment knob on back
Neck:
Carbon fiber reinforced traditional C shape with two-way adjustable truss rod
Solid African Mahogany
Deep-slotted bone nut
Neck width at nut: 1 ¾ in (44.5 mm)
Neck width at 12th fret: 2.2 in (56 mm)
14 Frets to body
20 Frets total
Fret Board:
16 inch Radius, Rosewood
Medium brass fret wire
String Spacing:
39.3 mm at nut
59.2 mm at saddle
Compensated bone saddle
Strings:
Elixir® Phosphor-Bronze Lights
Guitar Dimensions and Weights:
Weight: 4.4 lbs (2.0kg)
Weight With Case: 7.4 lbs (3.3kg)
Maximum depth: 4.64 in (11.8cm)
Minimum Depth: 3.5 in (8.9 cm)
Body Length: 18 in (45.7cm)
Total Length: 35.5 in (90cm)
Lower Bout Width: 13.25 in (33.7 cm)

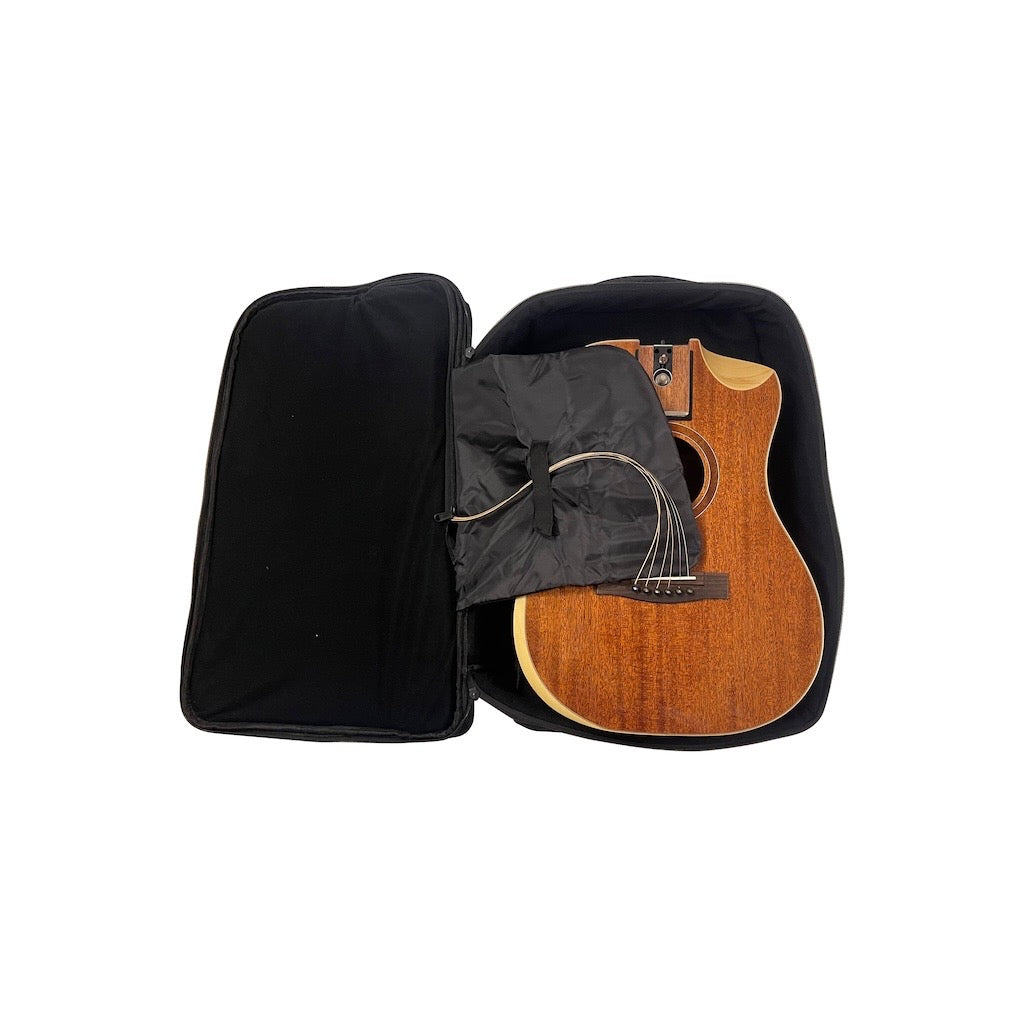

Travel Backpack Specifications
Tech Travel Ready:
TSA compliant 14-inch computer compartment for optimal airport security inspection
Easy-access tablet pocket for up to 9.5 inch tablet devices
All- Premium Material Construction:
Extra-durable Ballistic Polyester external case with premium polyester and velour lining
Extra-padded Body compartment with premium velour
Internally-accessible padded neck compartment with premium velour and string slot
Padded string panel with strings positioning tab
Padded Top and Side handles
Extra Compartments for Your Journey:
Internal/externally accessible compartment for accessories
Additional external topside pocket for additional accessories
Additional elastic pockets in computer compartment
Hideaway, reinforced padded backpack straps with padded back
Maximum Case Dimensions: L*W*H: 22*14*9 in ( 55.9*35.5* 22.9 cm)
Note: Some cases may open from the opposite side to accomodate additional guitar models that share the same guitar case.
UPC: 677355872202 (OF312C)
