Overhead+ Solid Acacia Koa - OF882C
Overhead+ Solid Acacia Koa - OF882C
- Express Shipping available for special orders
Couldn't load pickup availability

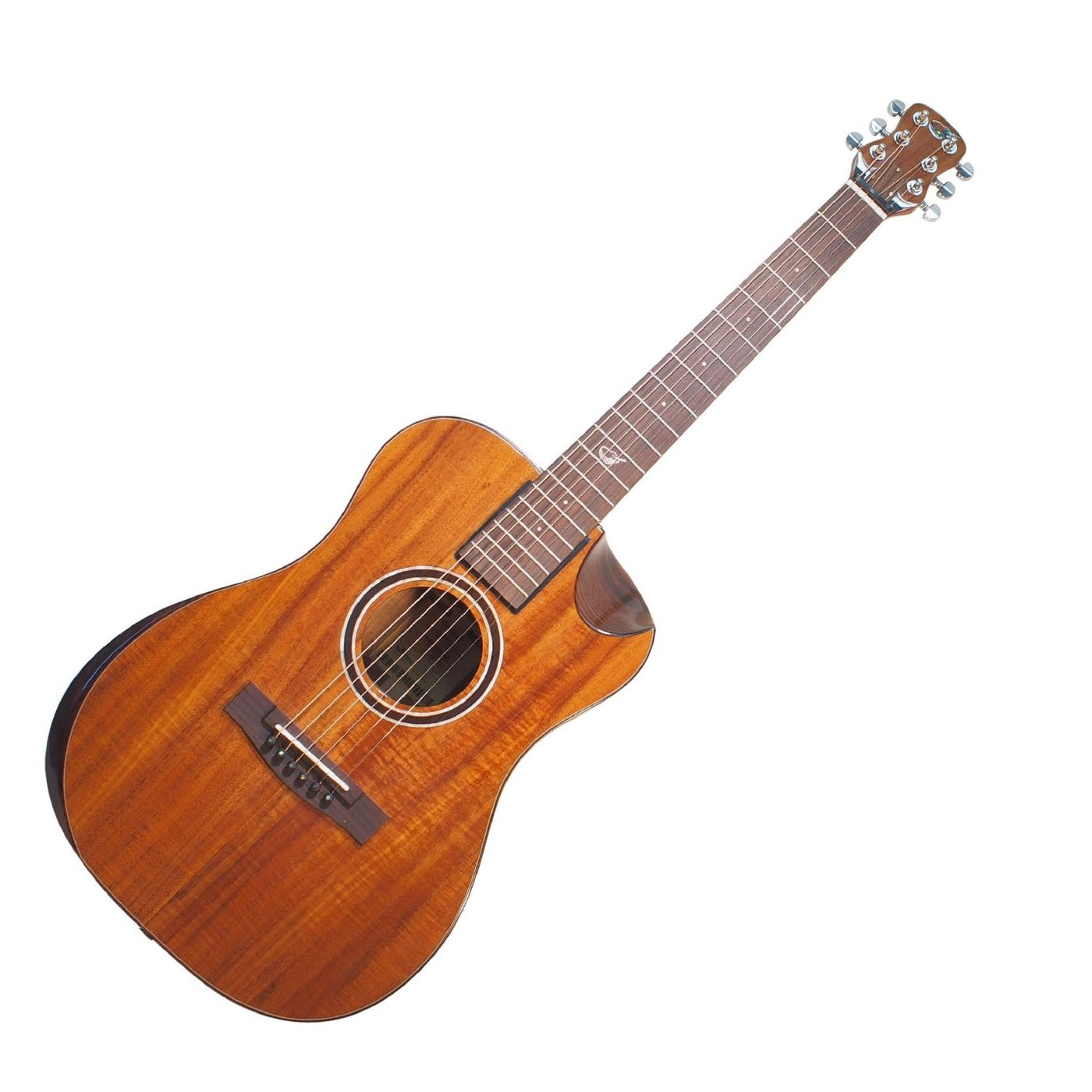

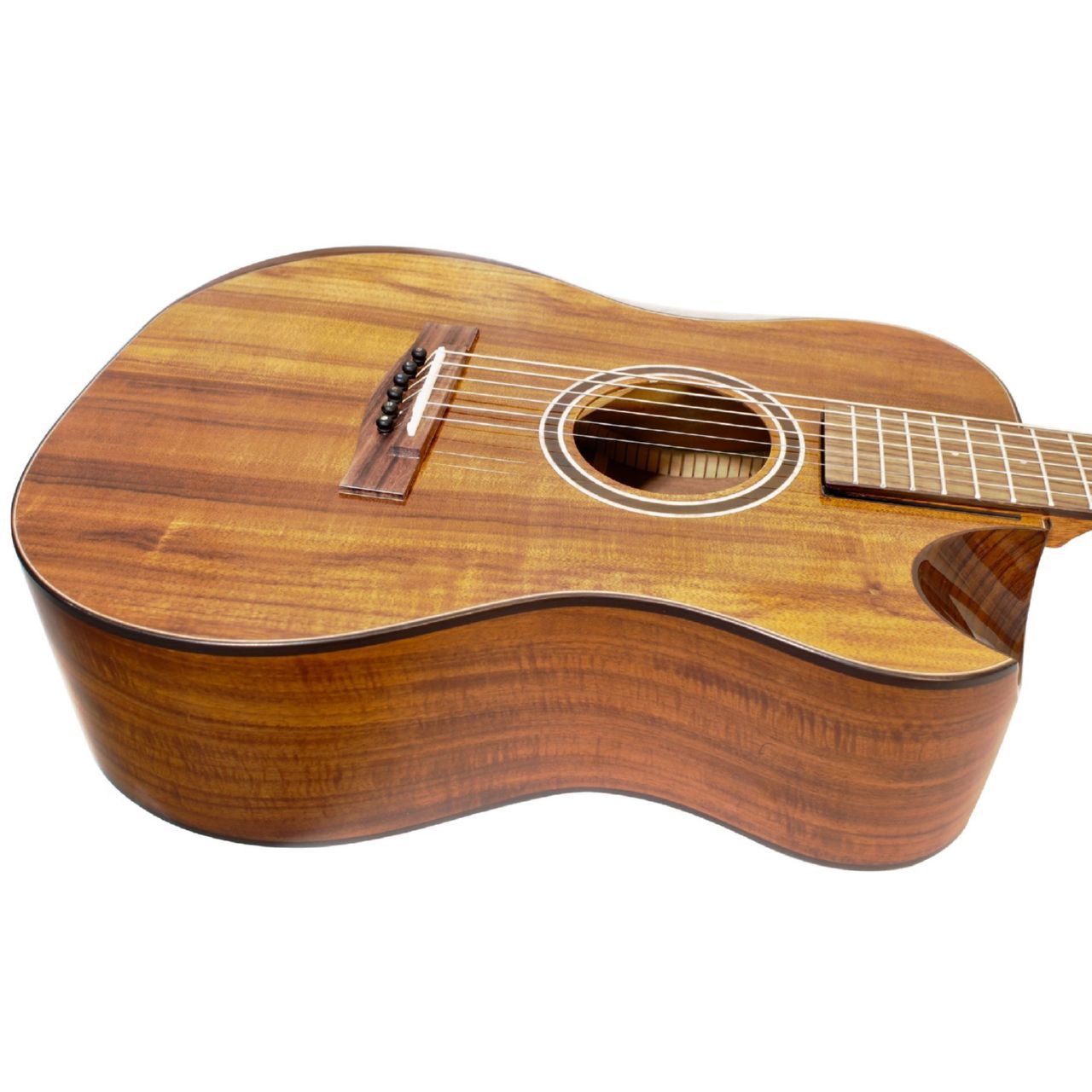

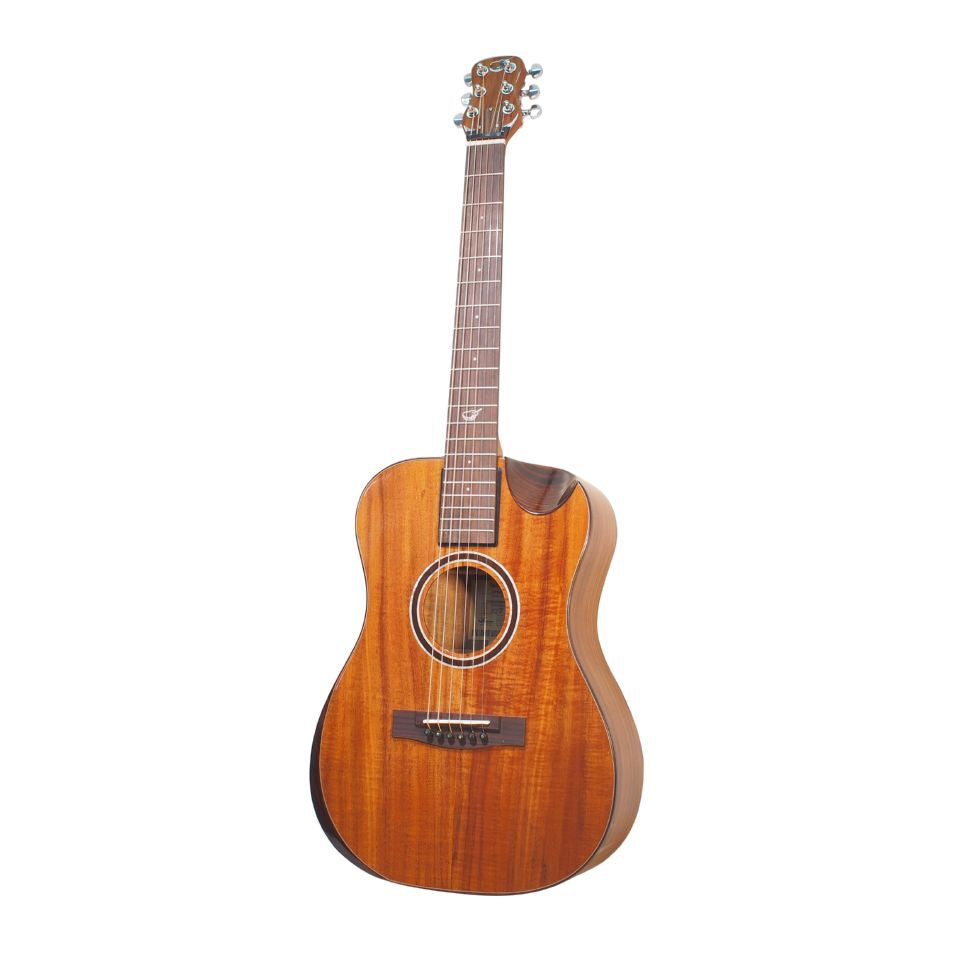

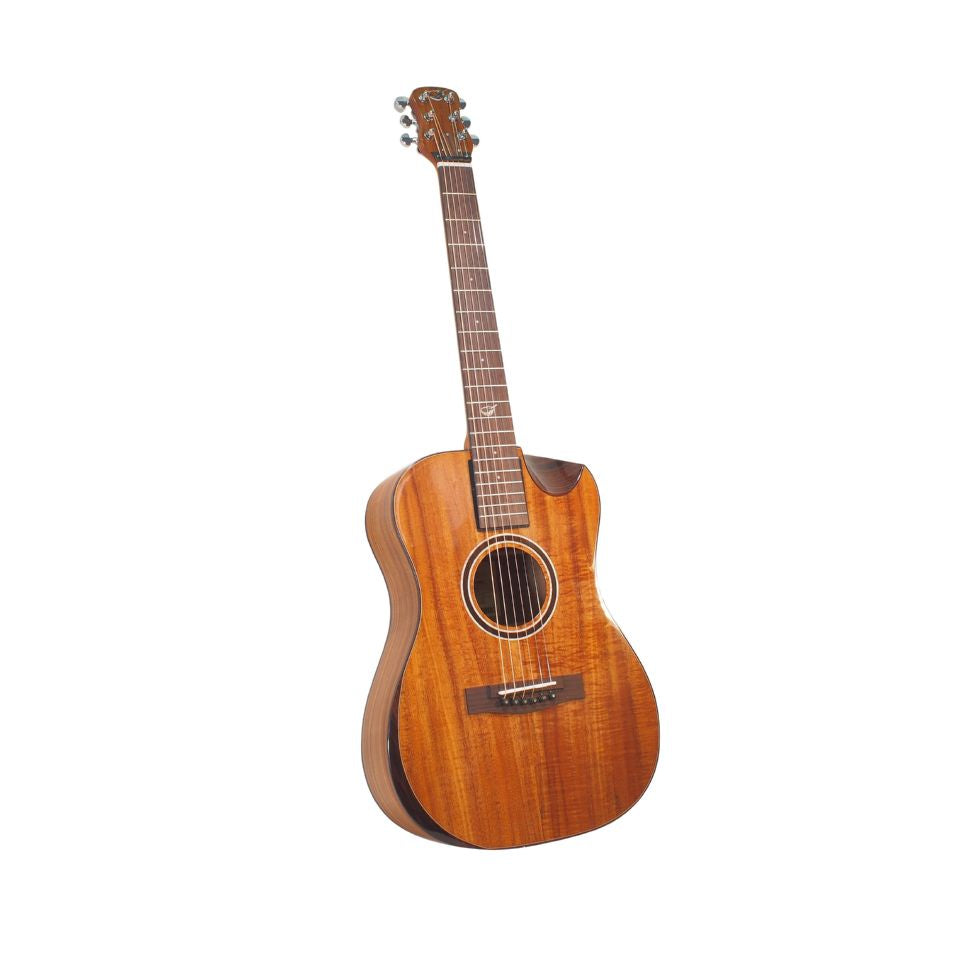

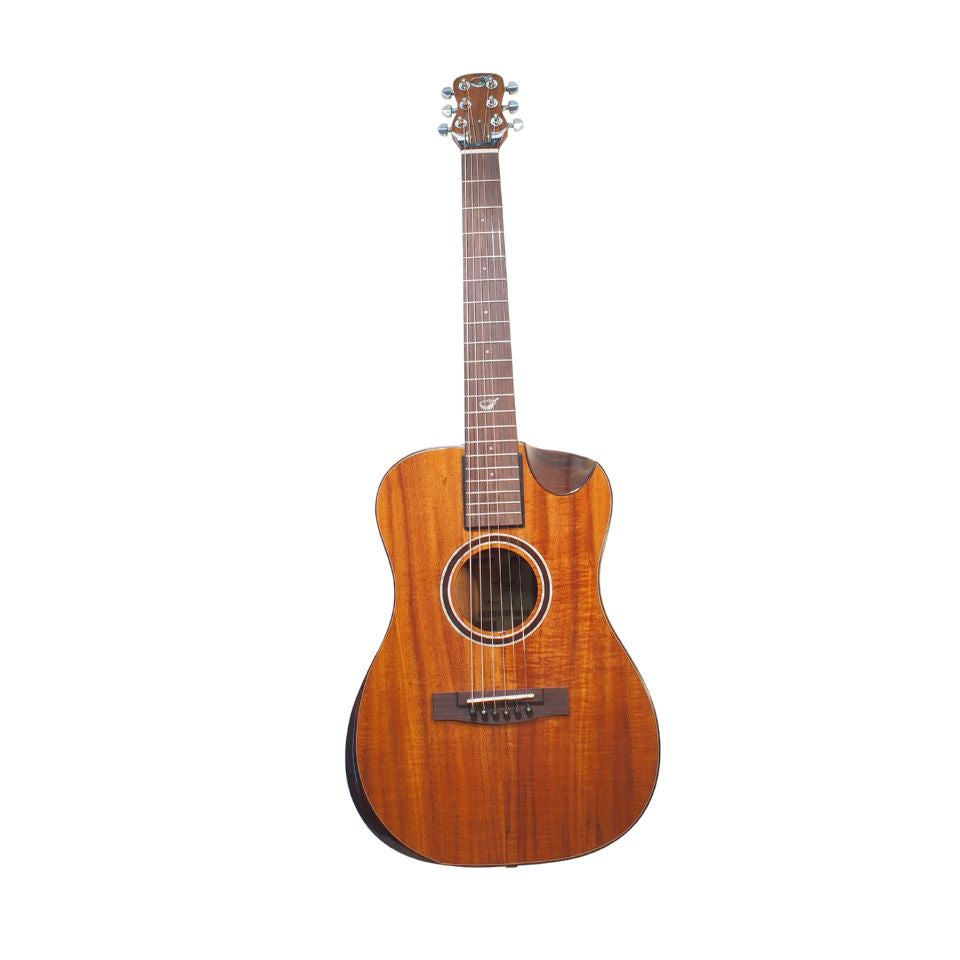

The OF882 Overhead® collapsible acoustic travel guitar features a solid Acacia Koa gloss top with scoop and arm bevel and solid Acacia Koa matte back with a wider 13.25″ lower bout. It collapses to carry-on size of 22*14*9 inches! It assembles in 20 seconds with our patented detachable neck system that’s guaranteed for life. A full 24.5 inch scale, a versatile 1 3/4 nut width, locking 18:1 Journey Tuners, best-in-class components, and a wedged ergonomic design make this the most enjoyable guitar you’ll ever play! Tri-piezo pickup and a full-featured airline compliant carry-on backpack included.
Tags: Acoustic, Acoustic travel guitar, Collapsible acoustic guitar, Collapsible travel guitar, Folding travel guitar, Full scale, Guitar, Overhead, Portable acoustic guitar, Portable guitar, Portable guitar australia, Special order, Travel acoustic guitar australia, Travel guitar, Travel guitar australia

- This is a special order Item
Share
Dimensions
Dimensions
Body Length: 45.7 cm (18 in)
Total Length: 90 cm (35.5 in)
Lower Bout Width: 33.7 cm in (13.25)
Weight
Weight
Weight: 1.9kg (3.8 lbs)
Weight With Case: 3.25kg (7.1 lbs)







Groovy Guitar Dude Review
Acoustic Uprising - The Definitive FingerStyle Documentary - Free DVD With Every Purchase!
More Details
Collapsible content
Reviews
“It’s friggin awesome!”
- Janet J, OH – Received OC66M
"With composite construction and easily detachable neck, the Journey OF660 is truly a guitar you can take anywhere. ... impervious to the elements."
- Acoustic Guitar Magazine
"Assembling the guitar is simple. Pull back on the neck until you hear the “click,” and then tighten the inner screw by hand, from the back of the guitar."
- Acoustic Guitar
“Triple Threat Guitar” - Roger from Arizona
"Despite all the positive reviews, I still had a little bit of doubt, but it was completely unnessecary. This guitar is fantastic. It sounds better than guitars I have that are quite a bit larger than it which is pretty impressive. "
- Logan Johnston from Novato, CA
Additional Information
Designed for Travel

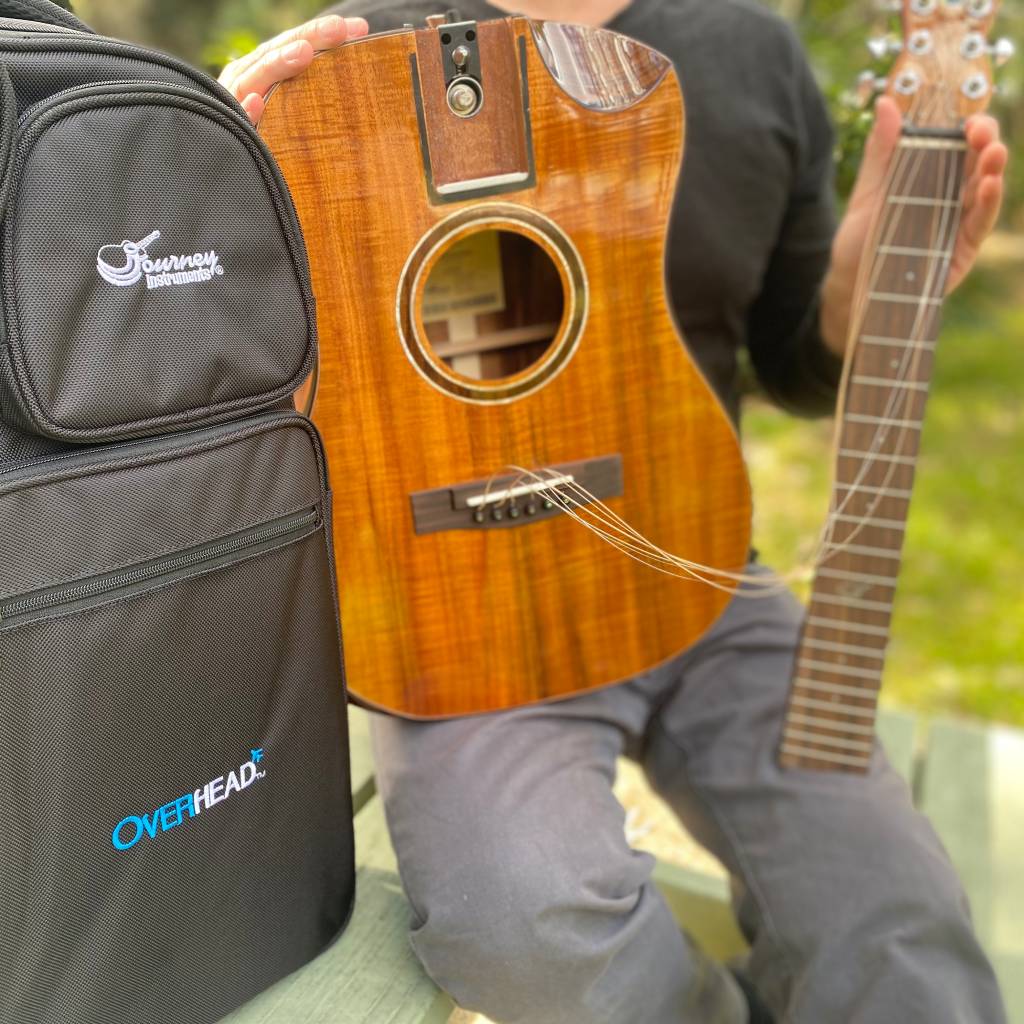

- The Overhead travel guitar uses a patented collapsible neck system which allows for assembly/disassembly in a matter of seconds. [View Youtube Video]
- After packing in its travel backpack the Overhead travel guitar can be carried-on to most major airlines, easily fitting in the overhead bin compartment.
- Travel backpack includes a TSA compliant laptop tablet fold-out panel which can be scanned by airport security without having to separately remove laptop.
- Proprietary under-bridge transducer pickup system accurately amplifies the guitar and comes with all Overhead guitars.
Full Tone in a Travel Body
- The wedge design gives a lower shoulder/bout depth that’s deeper than a dreadnought, allowing the smaller body size to deliver great volume and booming bass.

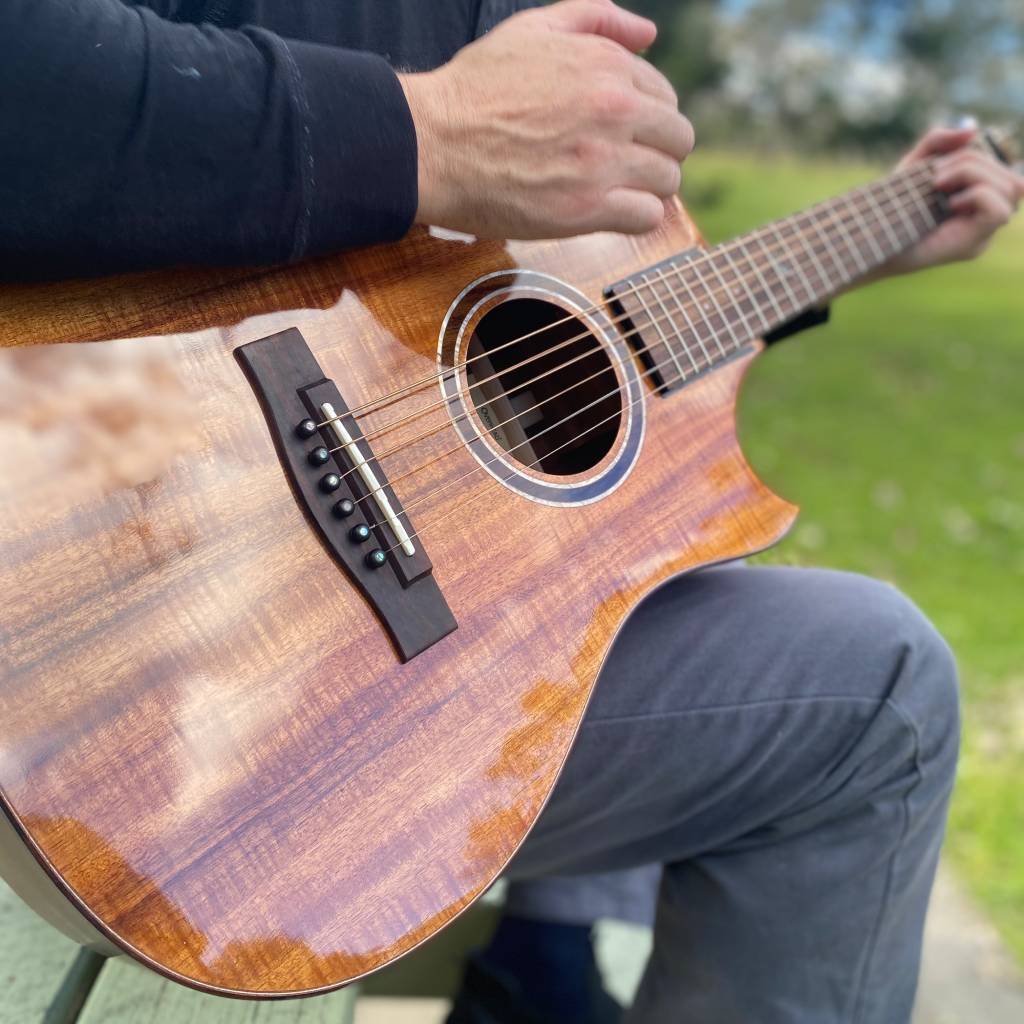

- Bone nut, compensated bone saddle, and ebony bridge pins all help produce the the tone preferred by acoustic guitarists.
- Traditional sound-hole design with forward-shifted, tapered X-bracing maximizes the resonance and volume of the soundboard.
Comfortable to Play
- The wedge design angles the guitar into your body which places the guitar in a comfortable position for fingerboard access and viewing.
- The dual-action steel truss-rod enables fine tuning of relief to suit any playing style.
- Satin-finish low-c profile neck make this 24.5 inch scale super comfortable to play.
Guitar Specifications
Proprietary Body Design:
Stylized 00 body shape
Center sound hole with Rosewood and MOP rosette
Wedge design for increased volume, comfort and efficiency
Soundboard:
Hand-selected Premium Solid Acacia Koa gloss
Back and Sides:
Premium Solid Acacia Koa satin back/sides
Ergonomics:
Rosewood scoop and arm bevel
Bracing:
Forward-shifted tapered X-bracing
Compound block for reduced weight and strengthened latch support
Binding and Markings:
MOP logo and position markings
Maple binding
Scale:
24.5 in (622.3 mm)
Finish:
Gloss on soundboard, bevel, scoop. Satin on back, sides, neck
Bridge:
Ovangkol, high break-angle
Tuners:
Journey 18:1 Locking Tuners
Electronics:

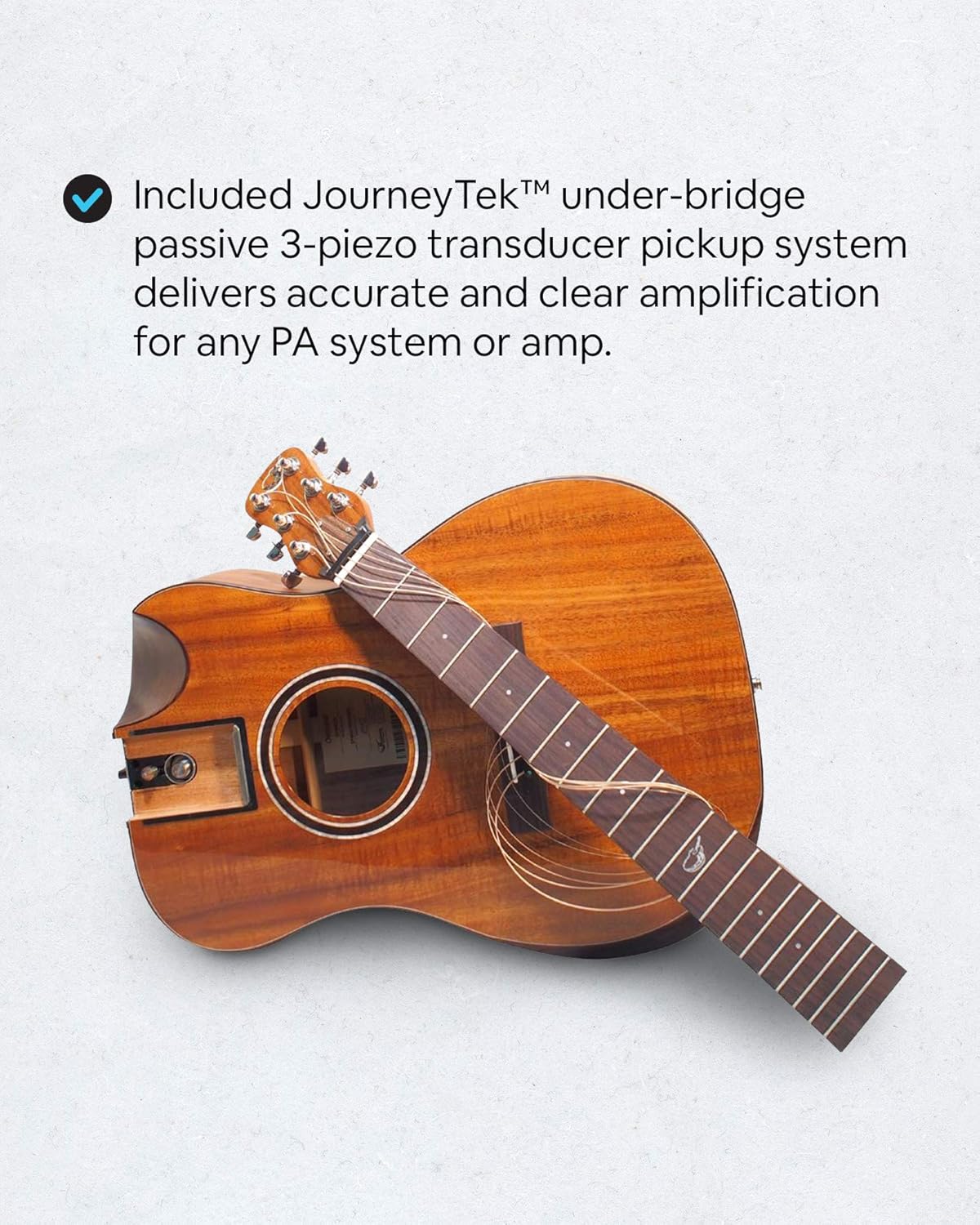

Included JourneyTek™ under-bridge upgradeable passive 3-piezo transducer pickup system delivers accurate and clear amplification for any PA system or amp.

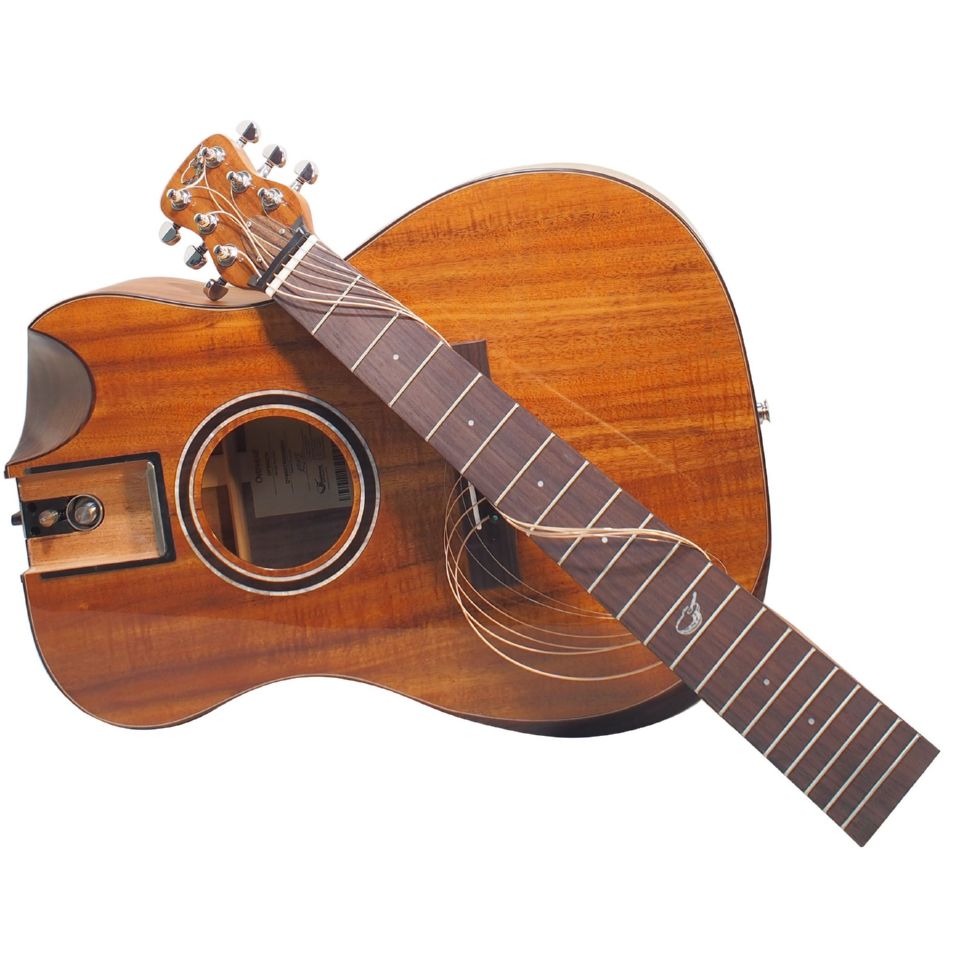

Removable Neck Assembly:
Stainless steel load-bearing components
Push-button release latch under neck
Large adjustment knob on back
Neck:
Carbon fiber reinforced traditional C shape with two-way adjustable truss rod
Solid African Mahogany
Deep-slotted bone nut
Neck width at nut: 1 ¾ in (44.5 mm)
Neck width at 12th fret: 2.2 in (56 mm)
14 Frets to body
20 Frets total
Fret Board:
16 inch Radius, Rosewood
Medium brass fret wire
String Spacing:
2 ¼ in (>57.2mm)
Compensated bone saddle
Strings:
Elixir® Phosphor-Bronze Lights
Guitar Dimensions and Weights:
Weight: 5 lbs (2.3 kg)
Weight With Case: 8.2 lbs (3.7 kg)
Maximum depth: 4.64 in (11.8 cm)
Minimum Depth: 3.5 in (8.9 cm)
Body Length: 18 in (45.7 cm)
Total Length: 35.5 in (90 cm)
Lower Bout Width: 13.25 in (33.7 cm)
Travel Backpack Specifications
Tech Travel Ready:
TSA compliant 14-inch computer compartment for optimal airport security inspection
Easy-access tablet pocket for up to 9.5 inch tablet devices
All- Premium Material Construction:
Extra-durable Ballistic Polyester external case with premium polyester and velour lining
Extra-padded Body compartment with premium velour
Internally-accessible padded neck compartment with premium velour and string slot
Padded string panel with strings positioning tab
Padded Top and Side handles
Extra Compartments for Your Journey:
Internal/externally accessible compartment for accessories
Additional external topside pocket for additional accessories
Additional elastic pockets in computer compartment
Hideaway, reinforced padded backpack straps with padded back
Maximum Case Dimensions: L*W*H: 22*14*9 in ( 55.9*35.5* 22.9 cm)
Note: Some cases may open from the opposite side to accomodate additional guitar models that share the same guitar case.
UPC:677355871595
