Overhead Electric Black Travel Guitar – OE990BK

Designed for Travel

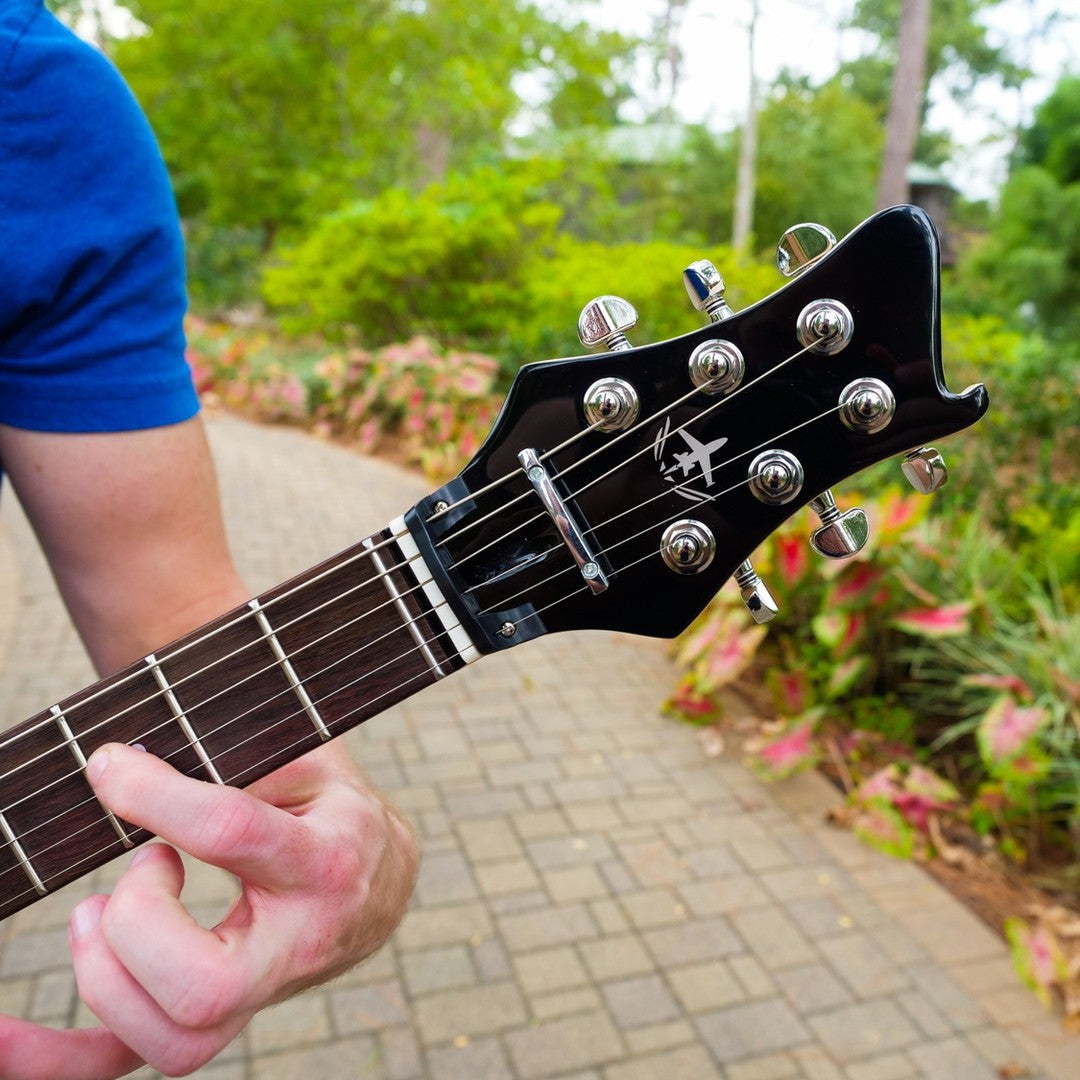

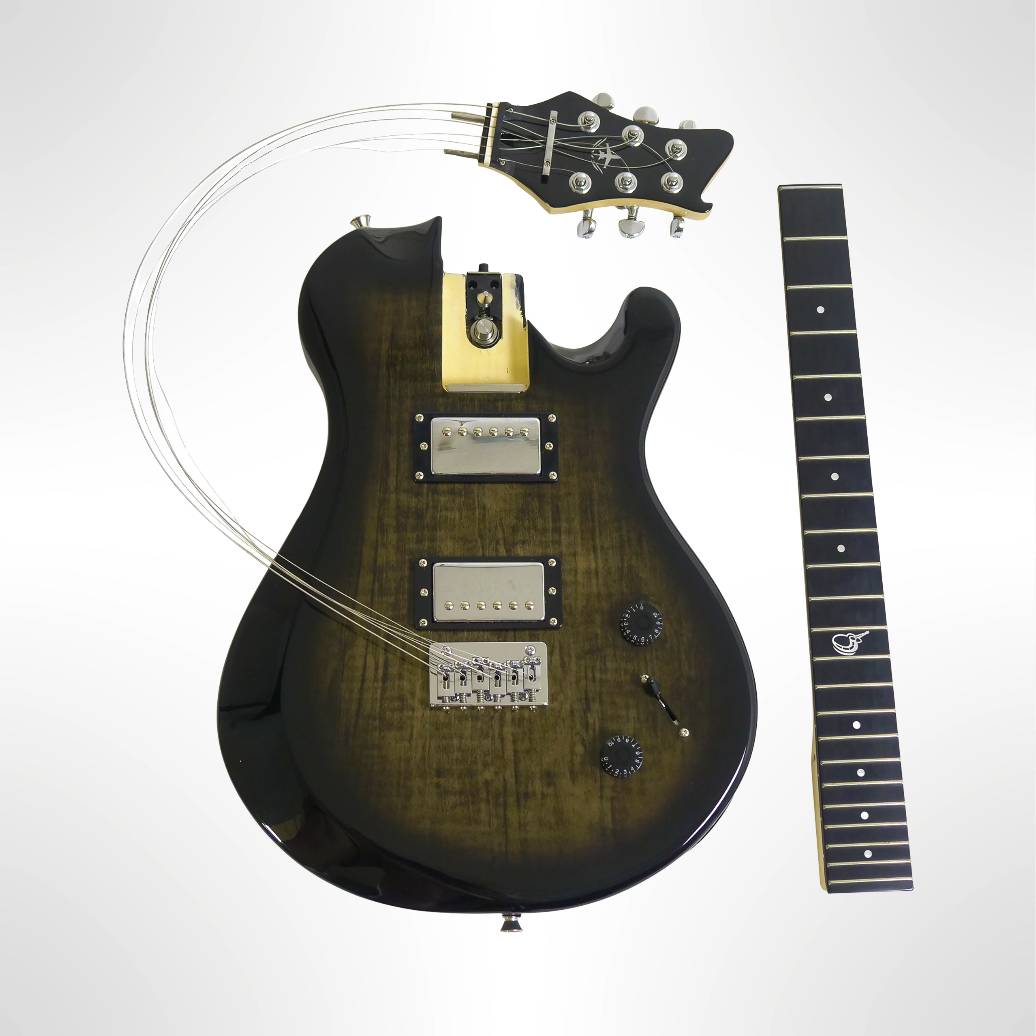

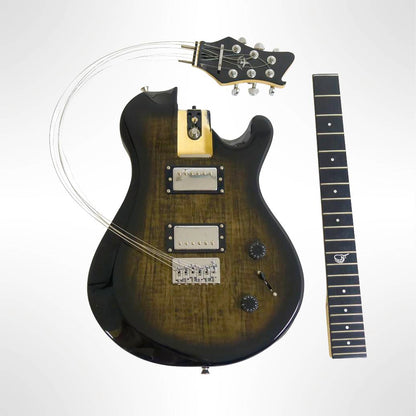

• The Overhead™ Electric travel guitar uses a patented collapsible neck system along with a removable headstock that enables assembly/disassembly in under a minute
• Custom full-featured travel backpack fits the entire collapsed guitar with ample room for all your gear – cables, pedals, laptop, clothes and more! It even converts to carry the fully-assembled guitar.

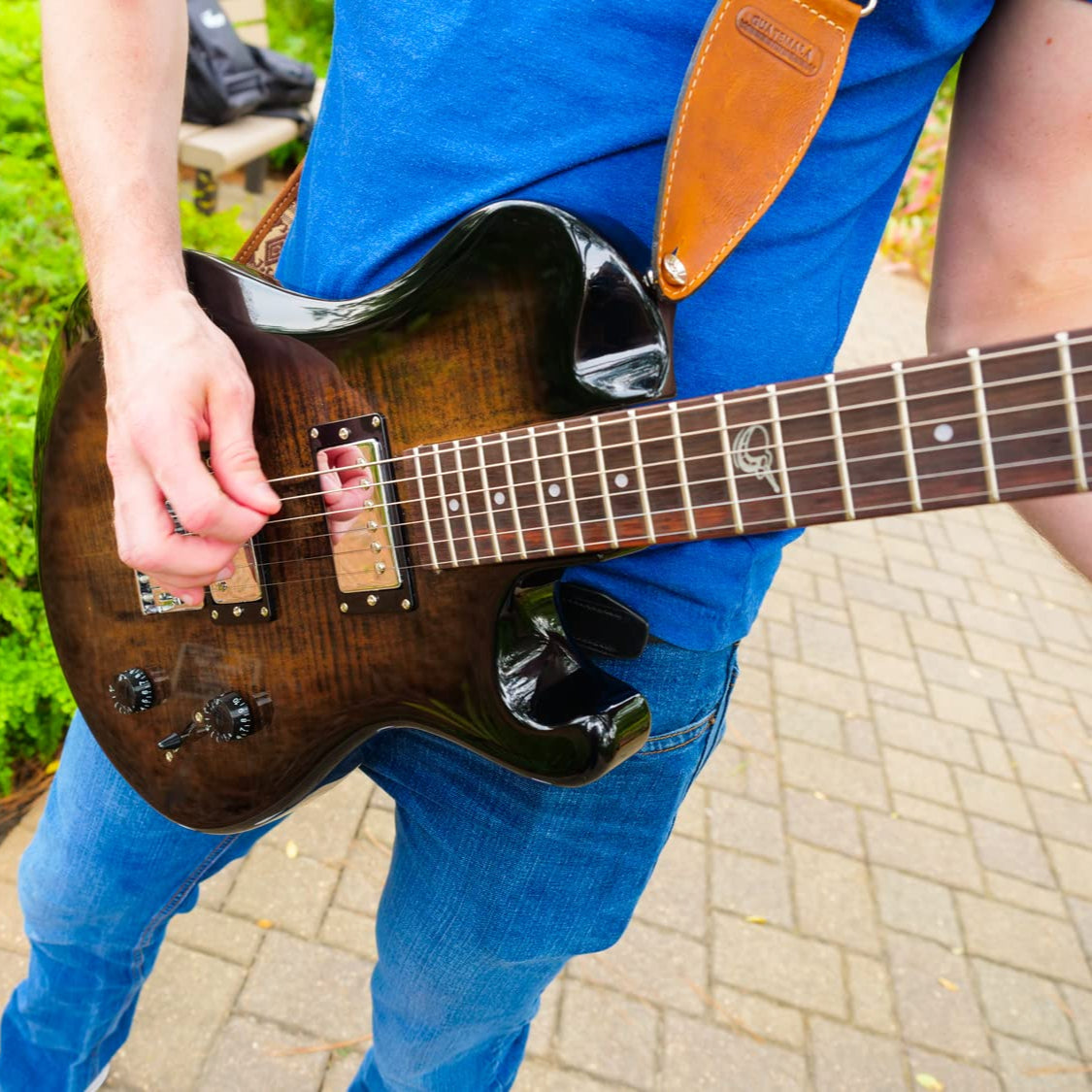

Feature-Packed Full-Sized Electric Guitar

• The OE990 Series collapsible electric guitar is engineered to feel and play like a full-sized electric, yet packs away for stress-free travel convenience.

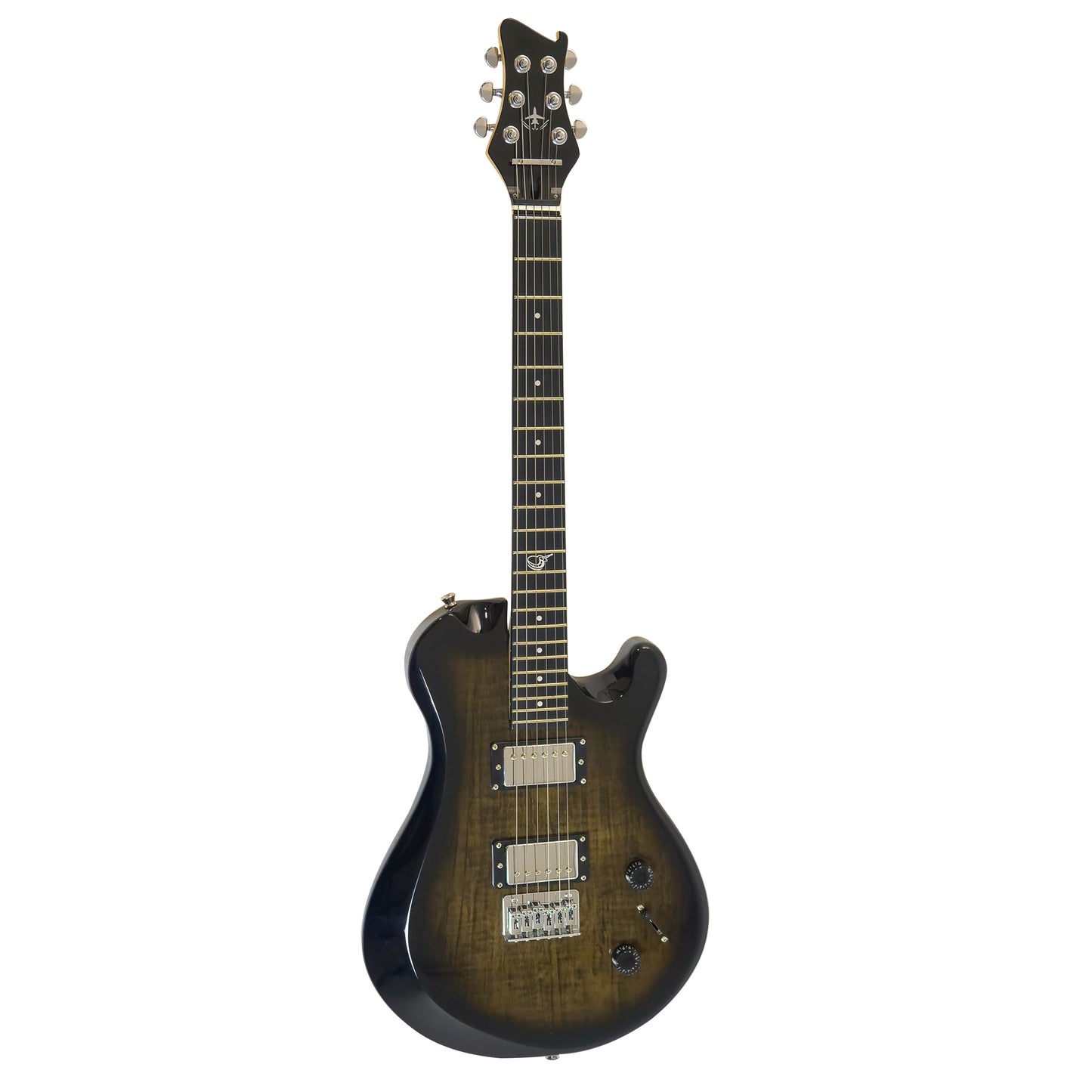

• The standard-sized solid wood body with full 25” scale, 1 11/16 nut, 22 frets and standard-sized headstock performs and feels like a full-sized electric guitar should – and looks great whether you’re rocking out on stage or just jamming with friends.
• Features premium specs such as full-gloss body with ergonomic bevels, flamed maple top, and satin maple neck. On top of that, it also includes a bone nut, Rosewood or Composite fingerboard, locking Journey 18:1 tuners, steel hardtail bridge, and dual coil-splitting humbucker pickups.
• Super stable and tested for thousands of assemblies: steel hard tail bridge, zero nut, carbon fiber neck rod reinforcement, patented stainless steel latch and bolt mechanism, stainless steel headstock assembly rods.
• Full-featured premium travel backpack: padded guitar body compartment with string protector panel, pockets for headstock and neck, laptop pocket, full-sized backpack compartment, organizer pocket, iPad pocket, water bottle holders, and converts to carry assembled guitar.

Detailed Specifications

Body Shape:
Ergonomic Single Cutaway with arm, back, and cutaway bevels

Body:
Solid Poplar With Flamed Maple Top

Markings:
Standard Dot Position Markers With Journey Logo Inlay On 12th Fret

Scale:
25 In (635 Mm)

Finish:
High Gloss Polyurethane finish on body, Matte Polyurethane neck finish

Bridge:
Adjustable Steel Through-Body Hardtail

Tuners:
Journey 18:1 Locking Chrome Tuners

Electronics:

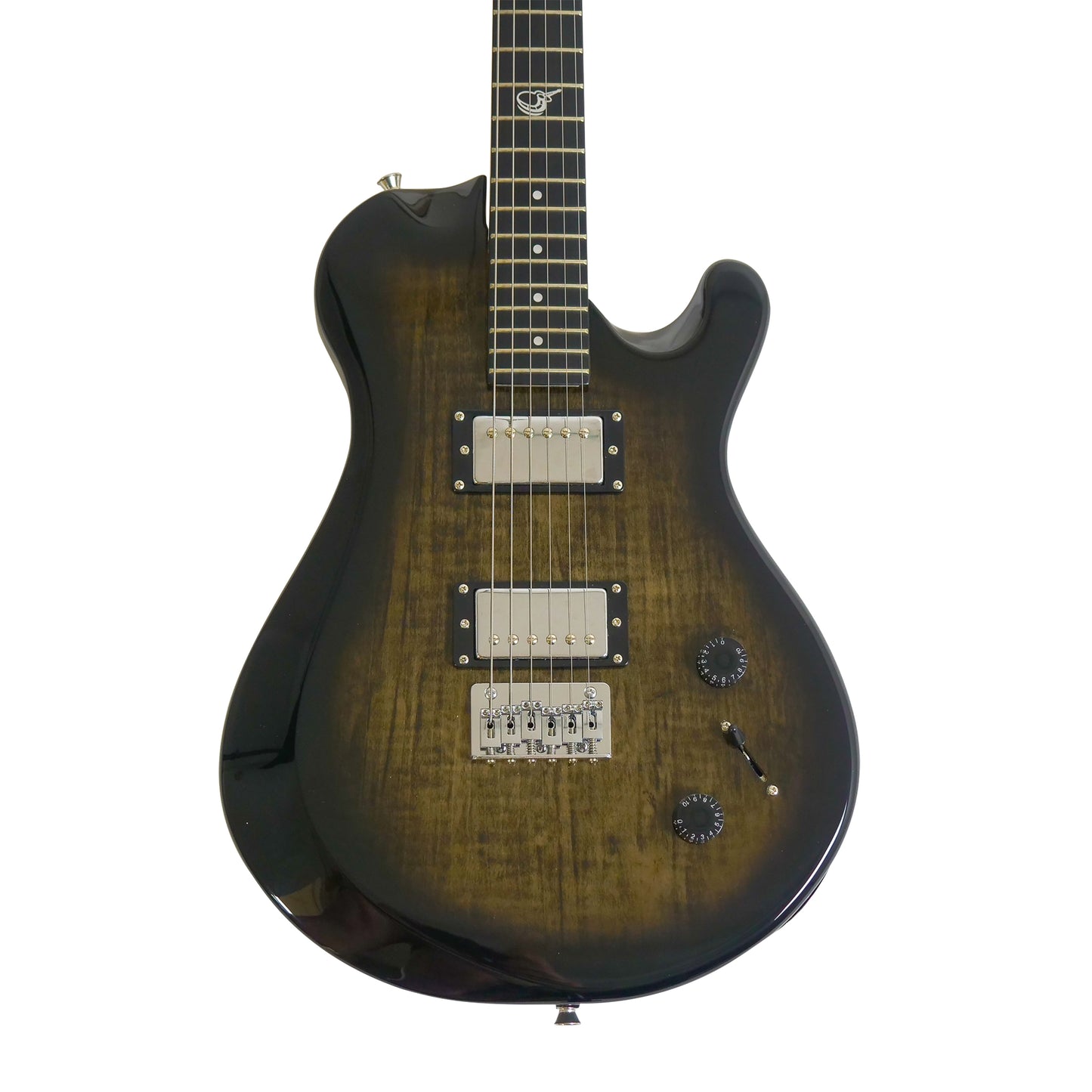

Dual Coil-Splitting Humbucker Pickups With 3-Way Switch

Controls include Master Volume and Tone (push/pull coil-tap)

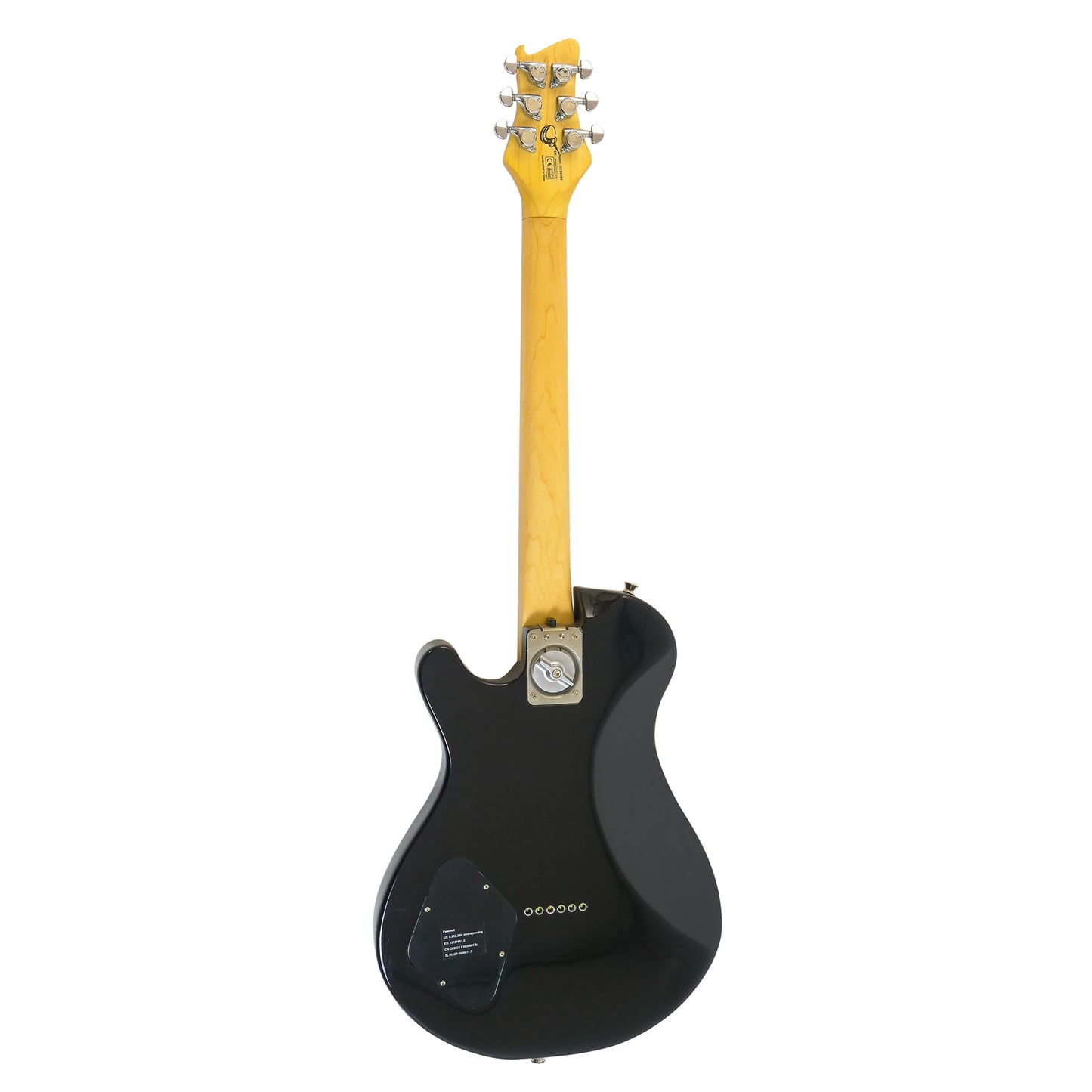

Removable Neck Assembly:

Patented Journey Instruments Stainless Steel Latch And Bolt Neck Assembly

Nut:

Deep-Slotted Bone Nut With Custom Designed Removable String Retainer And Zero Fret.

Neck:

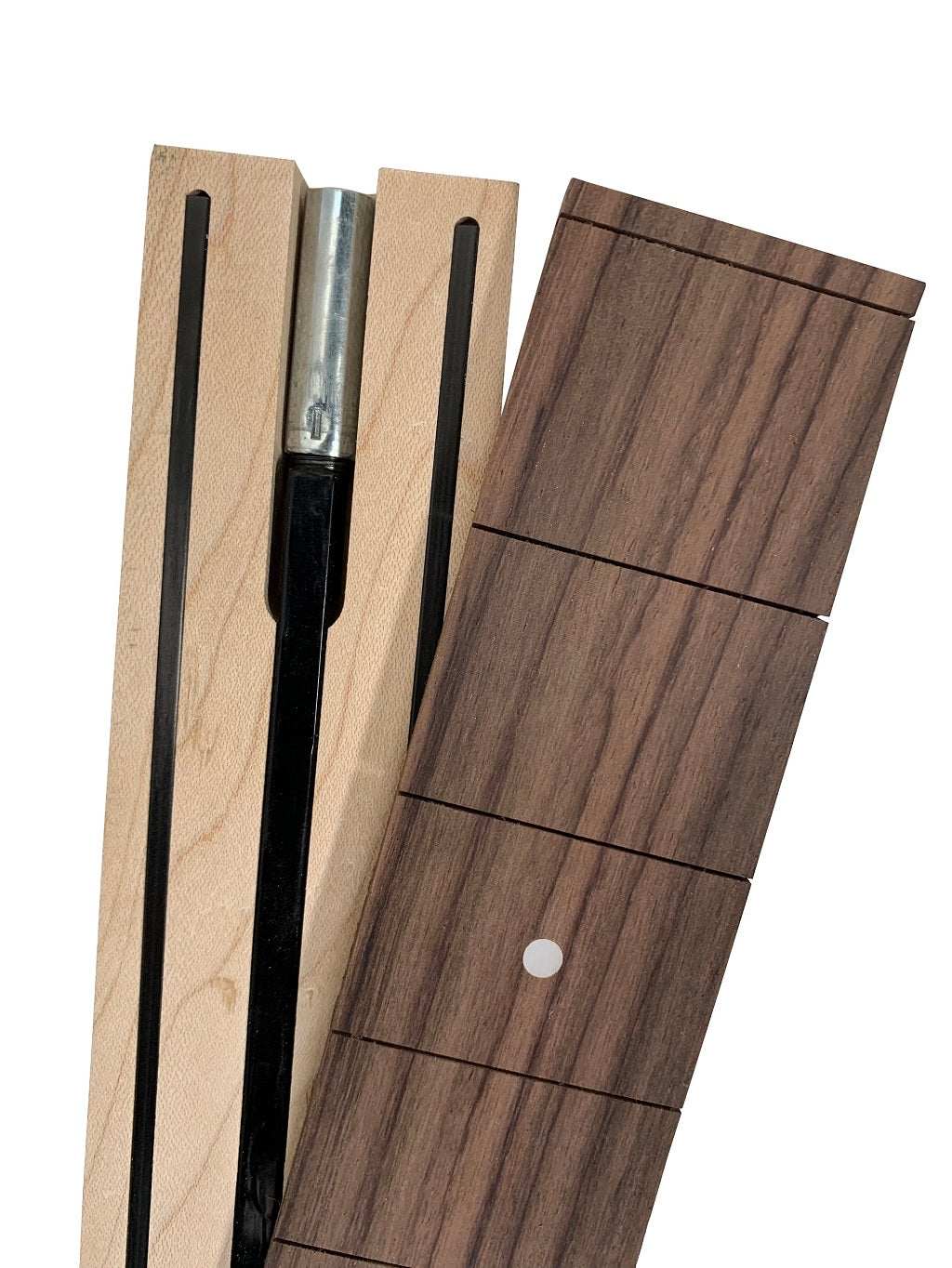

Medium U-Shaped Maple Neck Reinforced With Dual Carbon Rods And A Two-Way Adjustable Truss Rod

Neck Width At Nut: 1 11/16 In (43 Mm)

Neck Width At 12th Fret: 1.96 In (50 Mm)

Neck  Thickness At 1st Fret: 0.88 In(22.5mm)

Neck  Thickness At 5th Fret: 0.91 In(23mm)

Neck  Thickness At 9th Fret: 0.92 In(23.5mm)

16 Frets To Body On Cutaway Side

22 Frets Total

Fret Board:
16-Inch Radius, Rosewood or Composite

Medium Hardened Nickel-Brass Alloy Fret Wire

Strings:
Light Gauge Nickel Wound Nano-Coated

Strings Spacing:

34.5 mm at nut

51.8 mm at saddle

Guitar Dimensions And Weights:
Weight: 7.6 Lbs (3.5kg)
Weight With Case: 11.5 Lbs (5.2 kg)
Maximum Depth: 4.64 In (4.5 cm)
Minimum Depth: 1.77 In (8.9 cm)
Body Length: 17.5 In (44.5 cm)
Total Length: 38 In (96.5 cm)
Lower Bout Width: 13.25 In (33.7 cm)
Maximum Case Dimensions: L*W*H: 20.5*13.4*7.4 In (52*34* 19 cm)

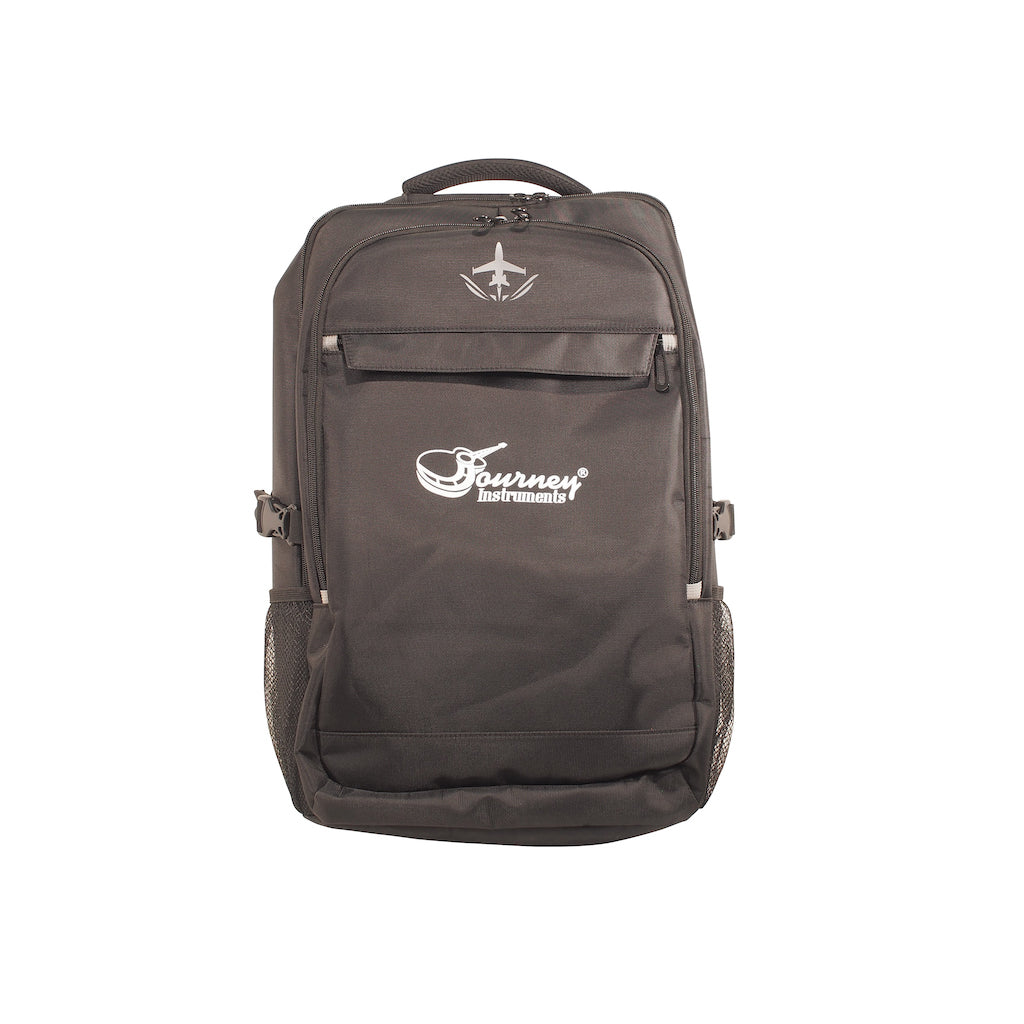

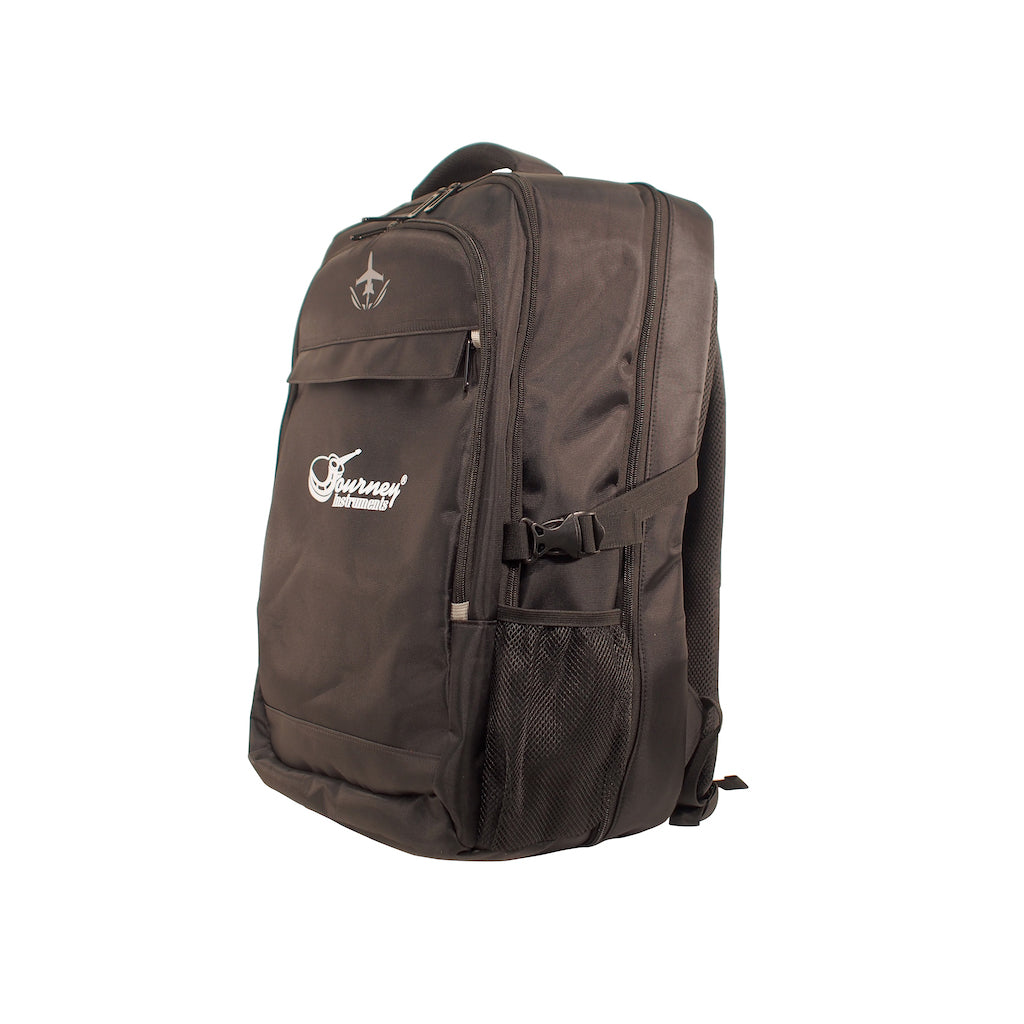

Travel Backpack Specifications

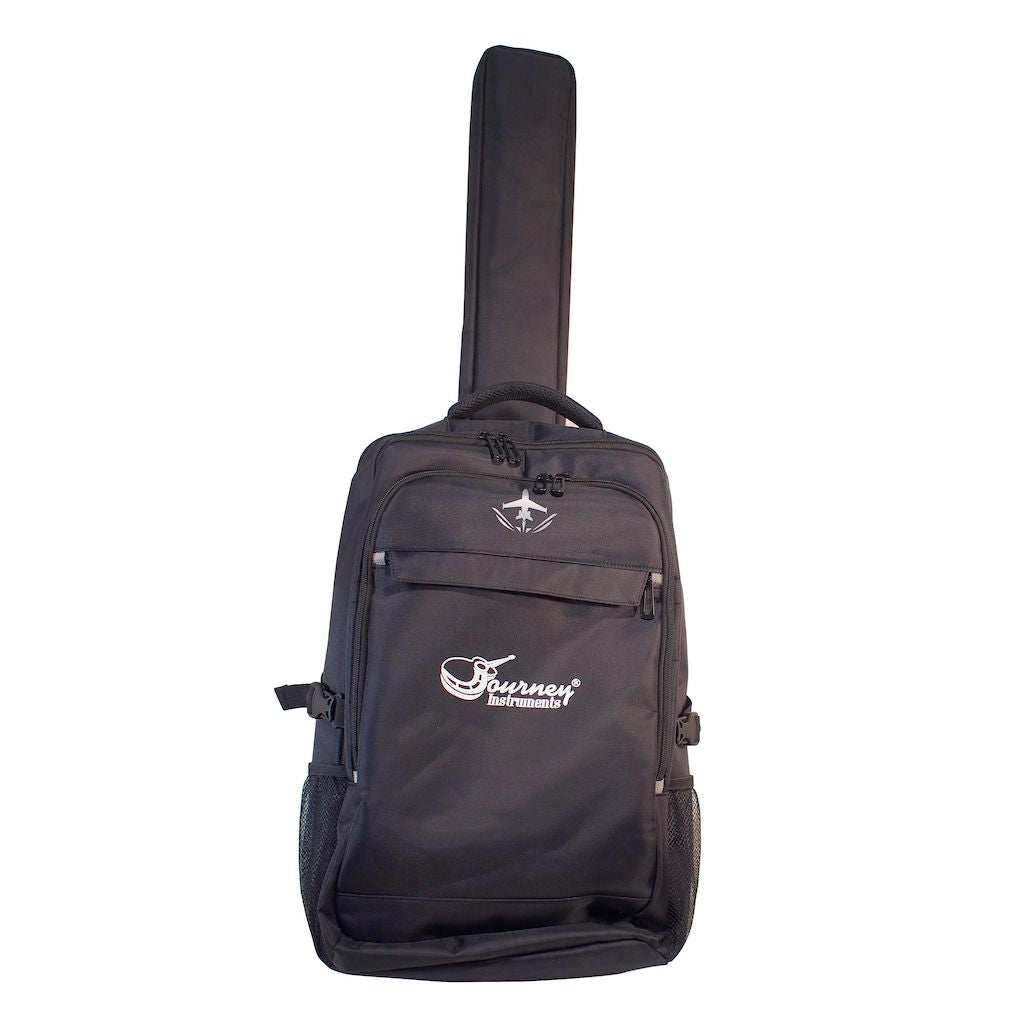

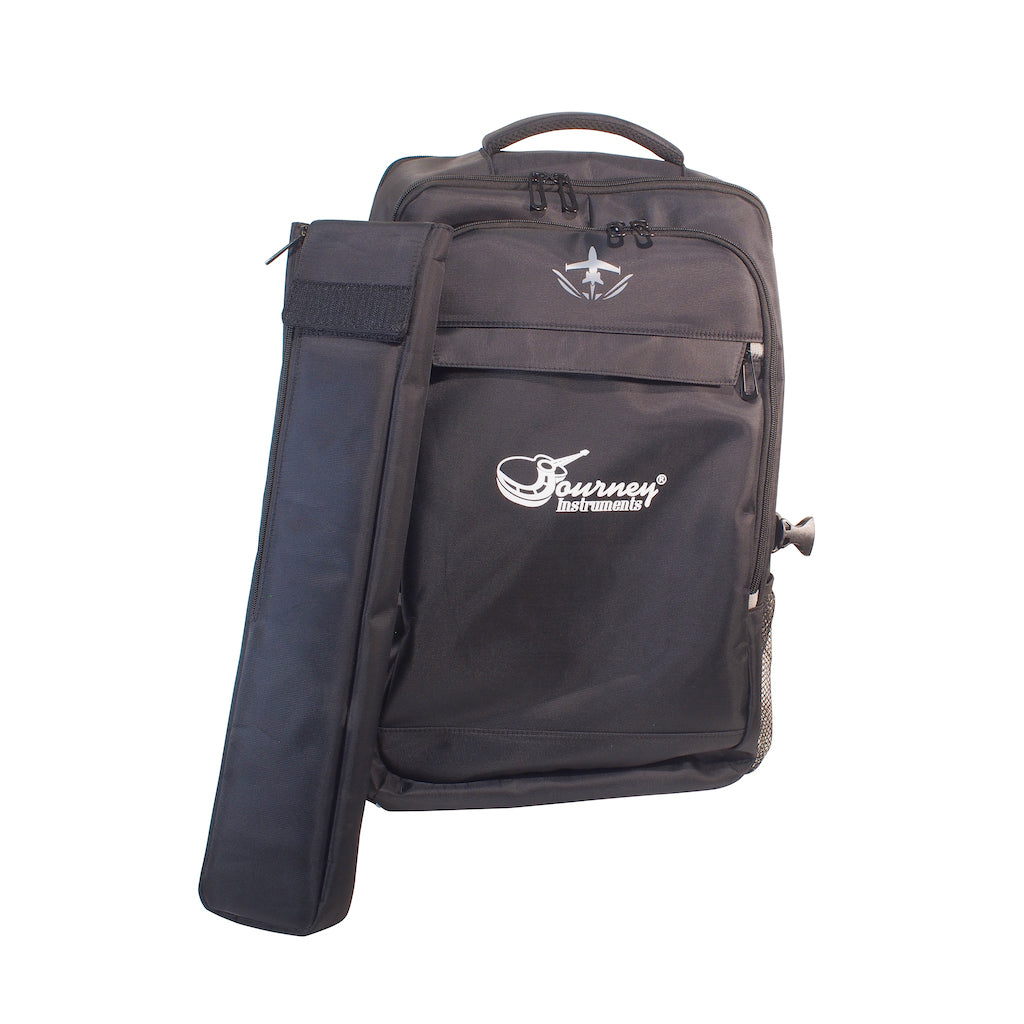

Convertible Design:

Transport your guitar completely disassembled for convenient packing and traveling, or use the neck sleeve to convert the case into an assembled guitar backpack.

Carry-On and Travel Friendly:
Total backpack size fits within most carry-on baggage requirements – with room for extra gear!
Durable 1050D high-grade ballistic weave polyester external case with premium polyester and velour lining

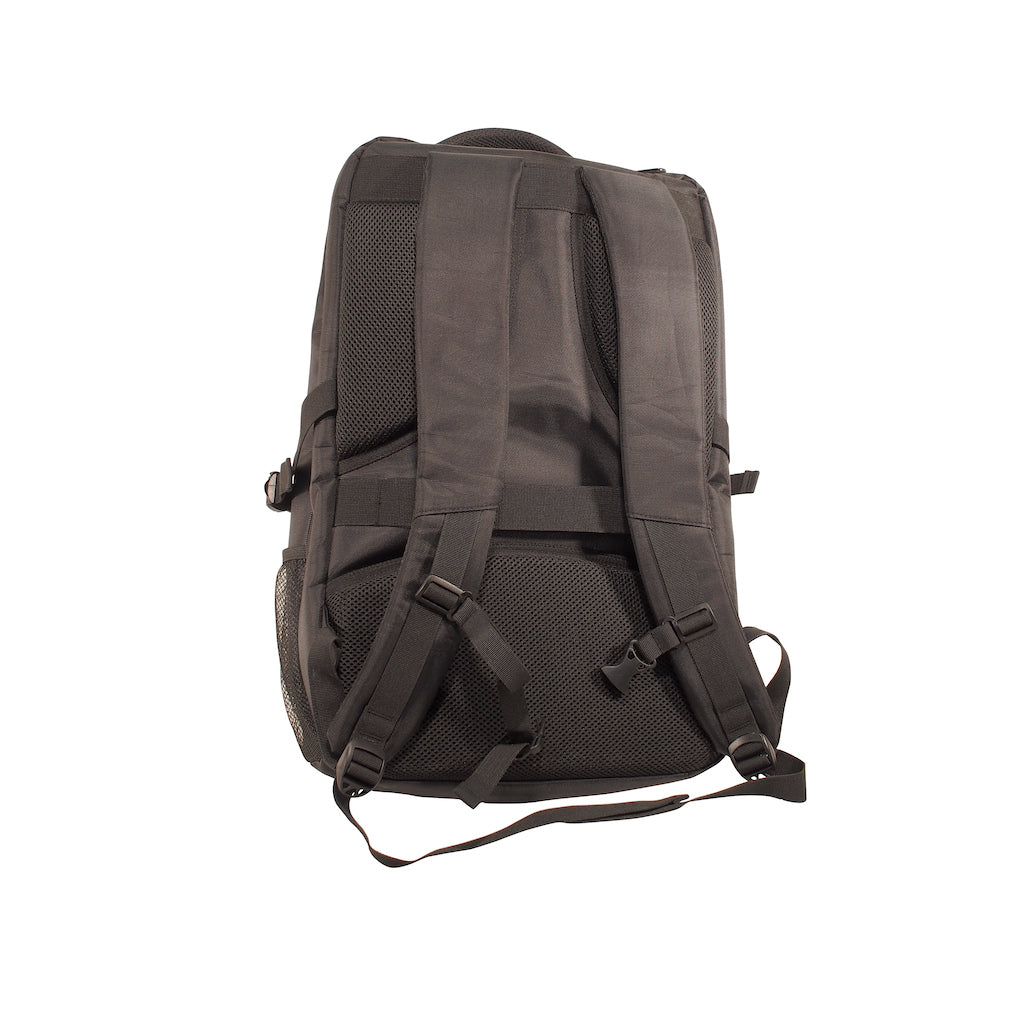

Padded backpack straps with adjustable chest strap

Padded top grip handle

Padded and vented mesh back for extra comfort

Horizontal Strap to secure onto a rolling luggage or carry-on roller case.

Dual side mesh water bottle pockets

Side compression straps to keep gear in place

Superior Guitar Protection:

Extra-padded guitar body compartment with premium velour and padded panel to prevent string abrasion

Padded neck sleeve (19*4*1 in)  and headstock pocket (9*3.25*1 in)

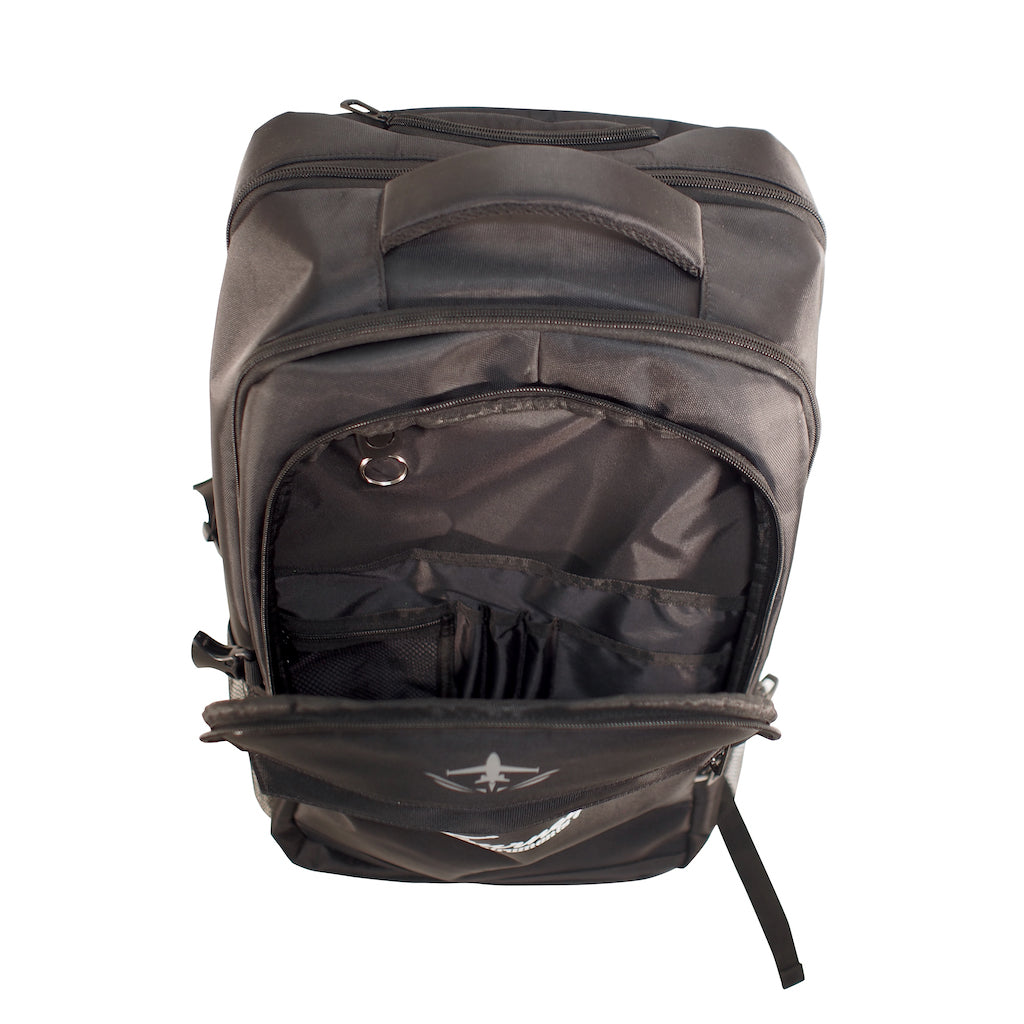

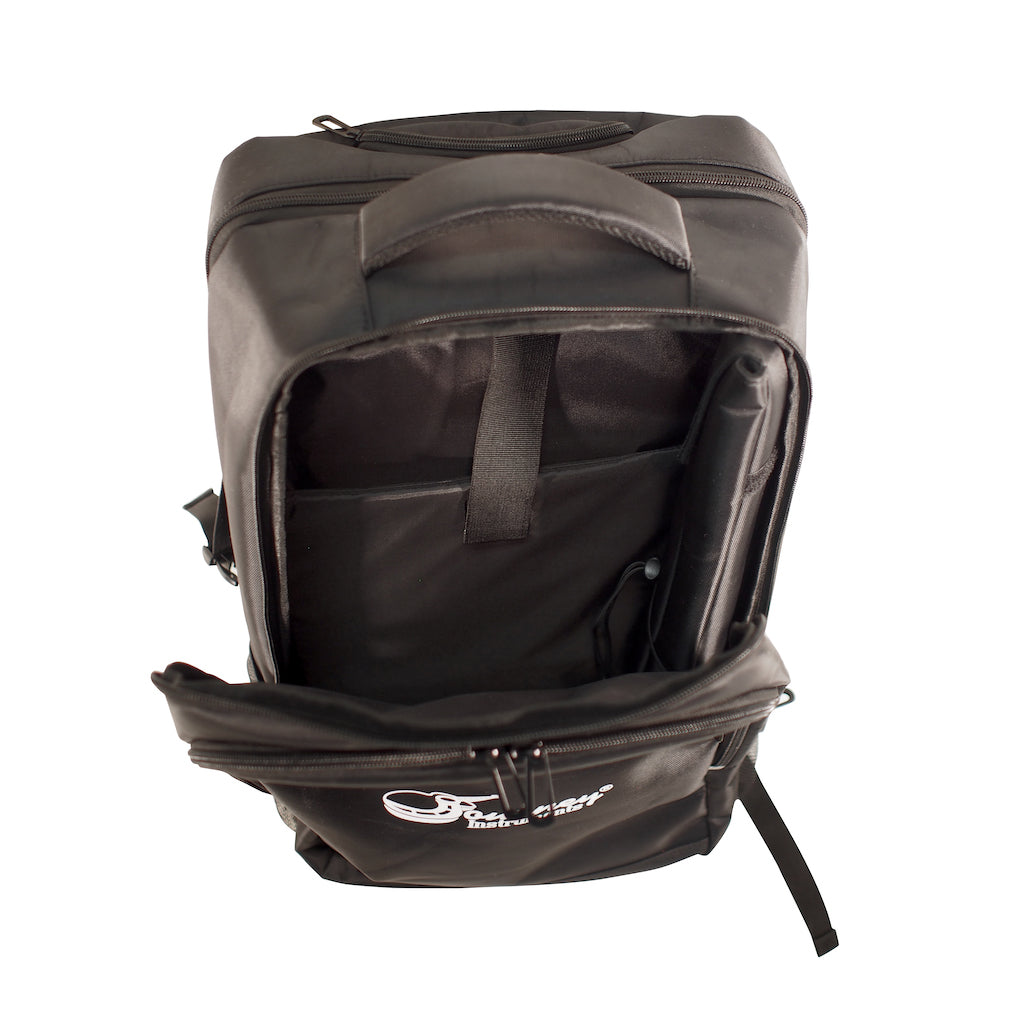

Extra Features and Pockets for Your Journey:
Massive 40L+ main storage compartment to fit all your main gear: pedalboard, cables, gear, clothing…

Full-sized padded internal laptop pocket fits laptops up to 18 inches!

Elastic cord to secure neck sleeve

Organizer Pocket with removable key fob

Front Tablet Pocket

Maximum Case Dimensions:

L*W*H: 20.5*13.4*7.4 in (52*34* 19 cm)
