Designed for Travel

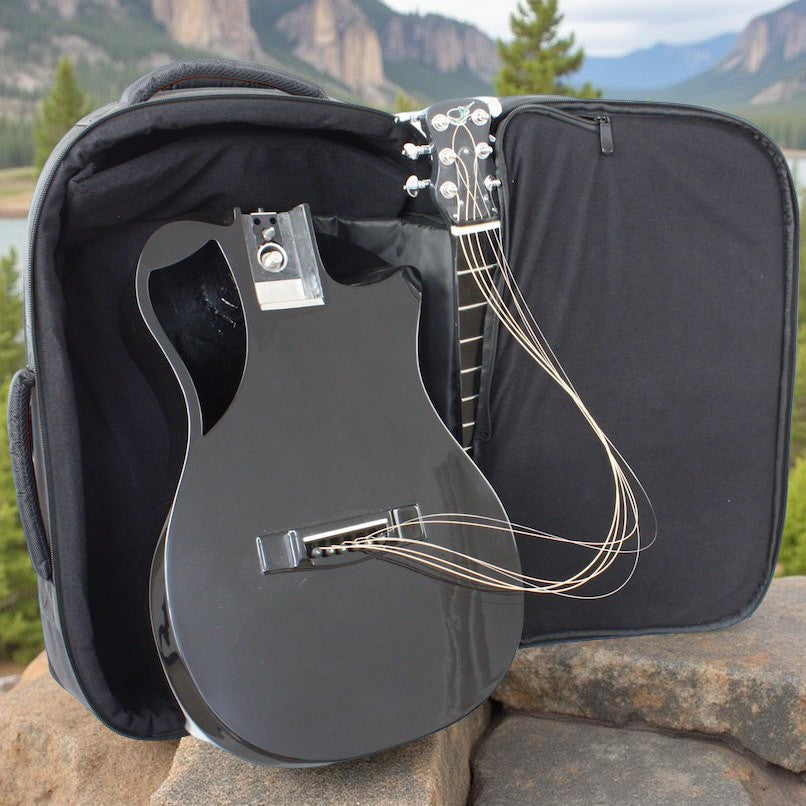

The Overhead™ travel guitar uses a patented collapsible neck system which allows for assembly/disassembly in a matter of seconds.
After packing in its travel backpack the Overhead travel guitar can be carried-on to most major airlines, easily fitting in the overhead bin compartment.
Travel backpack includes a airline compliant laptop tablet fold-out panel which can be scanned by airport security without having to separately remove laptop.
Proprietary under-bridge transducer pickup system accurately amplifies the guitar and comes with all Overhead guitars.
Full Tone in a Travel Body
The wedge design gives a lower shoulder/bout depth that’s deeper than a dreadnought, allowing the smaller body size to deliver great volume and booming bass.
Bone nut, compensated bone saddle, and ebony bridge pins all help produce the tone preferred by acoustic guitarists.
Offset sound-hole design maximizes the resonance and volume of the soundboard and proprietary bracing and layup structure produce a spectacular tone for such a compact instrument.
Comfortable to Play
The wedge design angles the guitar into your body which places the guitar in a comfortable position for fingerboard access and viewing.
The dual-action steel truss-rod enables fine tuning of relief to suit any playing style.
Satin-finish low-c profile neck make this 24.5 inch scale super comfortable to play.
Scoop-away™ design gives full access to all 20 frets, yet maximizes inner air volume of the instrument for maximum acoustical volume.
Guitar Specifications
Proprietary Body Design:
Stylized 00 body shape
Mid-position offset sound hole for maximum resonance
Scoopaway™ for access to all 20 frets while maintaining maximum volume
Beveled back for maximum playing comfort
Wedge design for increased volume, comfort and efficiency
Beveled soundboard armrest for maximum comfort
Soundboard:
Unidirectional carbon fiber with proprietary carbon fiber bracing
Back and Sides:
Fiberglass reinforced carbon fiber
Markings:
MOP logo and position markings
Scale:
24.5 in (622.3 mm)
Finish:
High gloss polyurethane
Bridge:
Carbon Fiber, high break-angle

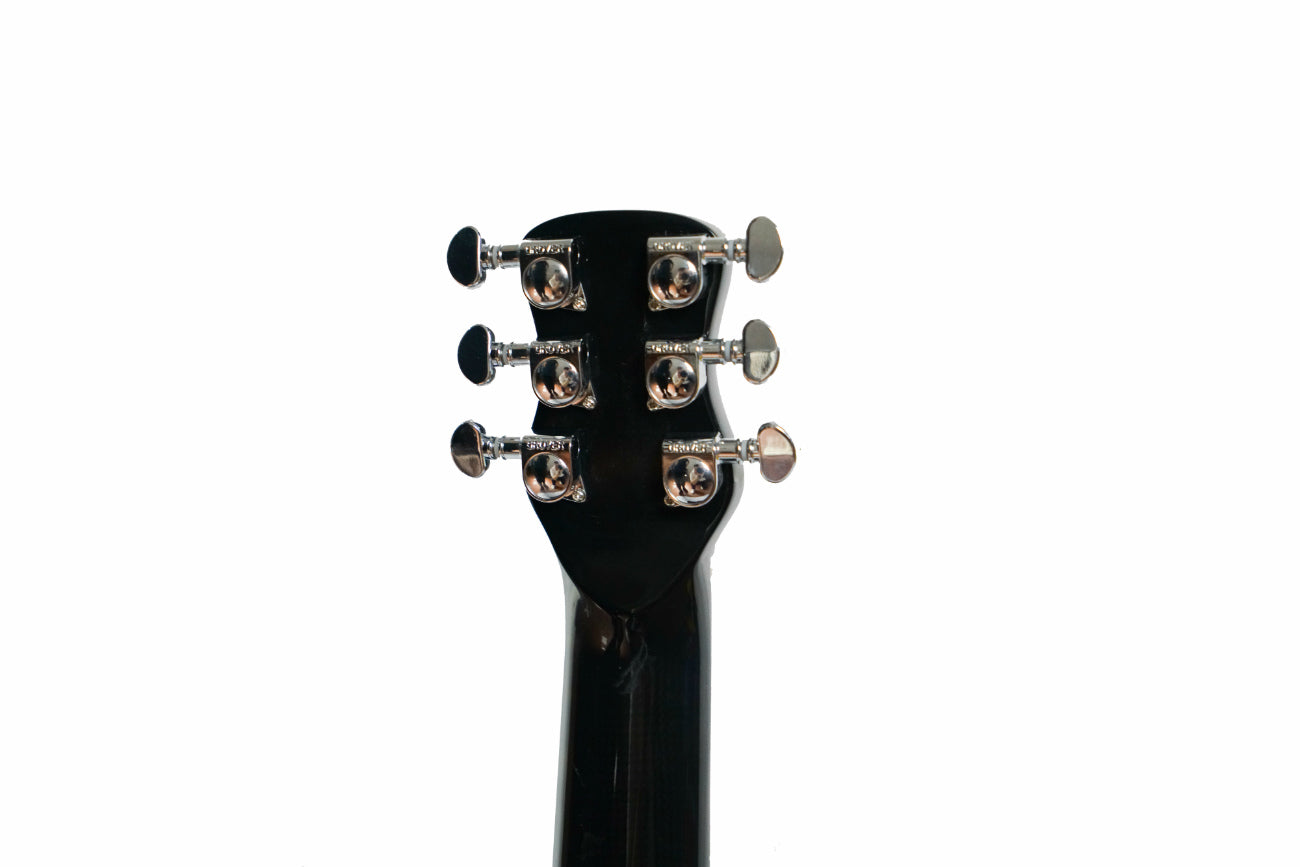

Tuners:
Grover® 18:1 or Journey 18:1 Locking Tuners
Electronics:
Included JourneyTek™ under-bridge passive 3-piezo transducer pickup system delivers accurate and clear amplification for any PA system or amp.
Removable Neck Assembly:
Stainless steel load-bearing components
Push-button release latch under neck
Large adjustment knob on back
Neck: Carbon fiber reinforced thin D profile shape with two-way adjustable truss rod
Deep-slotted bone nut
Neck width at nut: 1 ¾ in (44.5 mm)
Neck width at 12th fret: 2.2 in (56 mm)
Neck Thickness at 1st fret: 0.86 in(21.8mm)
Neck Thickness at 5th fret:0.91 in(23mm)
Neck Thickness at 9th fret:0.96 in(24.5mm)
14 Frets to body
20 Frets total
Fret Board:
16 inch Radius, Carbon Fiber
Jumbo hardened nickel-brass alloy fret wire
String Spacing:
38 mm at nut
56.6 mm at saddle
Compensated bone saddle
Strings:
D’Addario EXP16 Coated Phosphor Bronze Acoustic Guitar Strings, Light, 12-53
Guitar Dimensions and Weights:
Weight: 5 lbs (2.2kg)
Weight With Case: 7.9 lbs (3.6kg)
Maximum depth: 4.64 in (11.8cm)
Minimum Depth: 3.5 in (8.9 cm)
Body Length: 18 in (45.7cm)
Total Length: 35.5 in (92cm)
Lower Bout Width: 12.5 in (31.8 cm)
Maximum Case Dimensions: L*W*H: 22*14*10 in (55.9*35.5* 22.9 cm)
Travel Backpack Specifications
Tech Travel Ready:
TSA compliant 14-inch computer compartment for optimal airport security inspection
Easy-access tablet pocket for up to 9.5 inch tablet devices
All- Premium Material Construction:
Extra-durable Ballistic Polyester external case with premium polyester and velour lining
Extra-padded Body compartment with premium velour
Internally-accessible padded neck compartment with premium velour and string slot
Padded string panel with strings positioning tab
Padded Top and Side handles
Extra Compartments for Your Journey:
Internal/externally accessible compartment for accessories
Additional external topside pocket for additional accessories
Additional elastic pockets in computer compartment
Hideaway, reinforced padded backpack straps with padded back
Maximum Case Dimensions: L*W*H: 55.9*35.5* 22.9 cm
