Designed for Travel

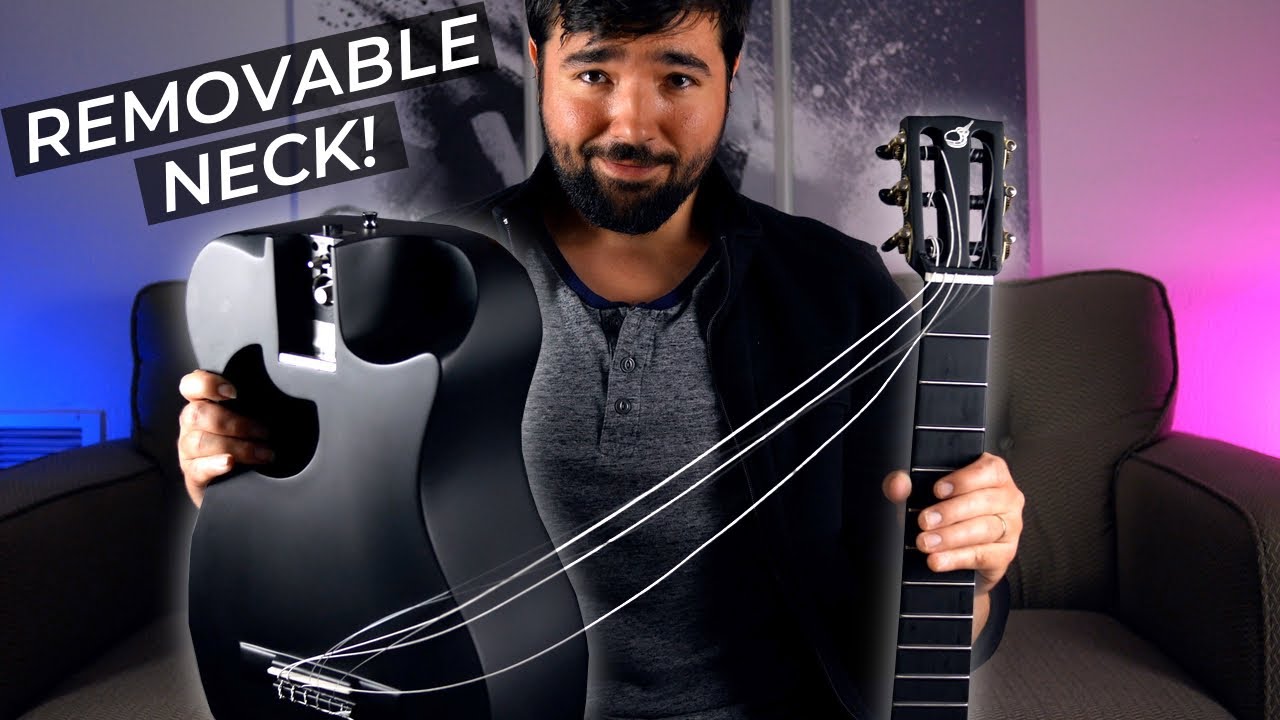

- The Overhead™ travel guitar uses a patented collapsible neck system which allows for assembly/disassembly in a matter of seconds. [View Youtube Video]

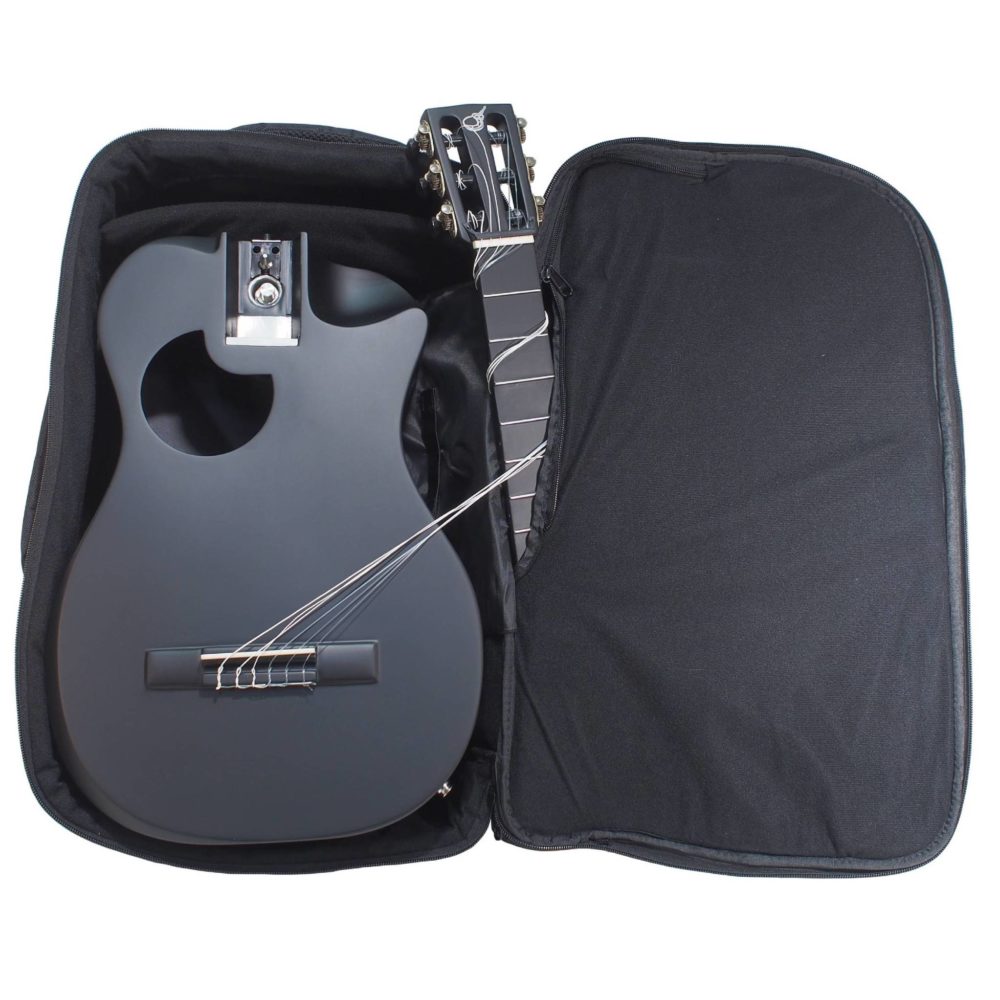

- After packing in its travel backpack the Overhead travel guitar can be carried-on to most major airlines, easily fitting in the overhead bin compartment.
- Travel backpack includes a TSA compliant laptop tablet fold-out panel which can be scanned by airport security without having to separately remove laptop.
- Proprietary UPGRADEABLE under-bridge transducer pickup system accurately amplifies the guitar and comes with all Overhead guitars.
Full Tone in a Travel Body
- The wedge design gives a lower shoulder/bout depth that’s deeper than a dreadnought, allowing the smaller body size to deliver great volume and booming bass.
- Bone nut and saddle with Savarez standard tension strings, gives the guitar an amazingly traditional tone.
- Offset sound-hole design maximizes the resonance and volume of the soundboard and patented bracing and layup structure produce a spectacular tone for such a compact instrument.
Comfortable to Play
- The wedge design angles the guitar into your body which places the guitar in a comfortable position for fingerboard access and viewing.
- Matte-finish low-c profile neck with 1 7/8 nut, make this 650 mm scale nylon string super comfortable to play.
- Scoop-away™ design gives full access to all 17 frets, yet maximizes inner air volume of the instrument for maximum acoustical volume.
Guitar Specifications
Proprietary Body Design:
Stylized 00 body shape
Mid-position offset sound hole for maximum resonance
Scoopaway™ for access to all 17 frets while maintaining maximum volume
Beveled back for maximum playing comfort
Wedge design for increased volume, comfort and efficiency
Beveled soundboard armrest for maximum comfort
*comes with strap buttons – though not shown in featured images.
Soundboard:
Unidirectional carbon fiber with proprietary carbon fiber bracing
Back and Sides:
6K carbon fiber
Markings:
Logo on headstock and position markings on side of neck
Scale:
25.5 in (650 mm)
Finish:
Matte polyurethane
Bridge:
Carbon Fiber, high break-angle
Tuners:
18:1 precision antique brass tuners with black knobs.
Electronics:
Included JourneyTek™ under-bridge passive 4-piezo transducer upgradeable pickup system delivers accurate and clear amplification for any PA system or amp.

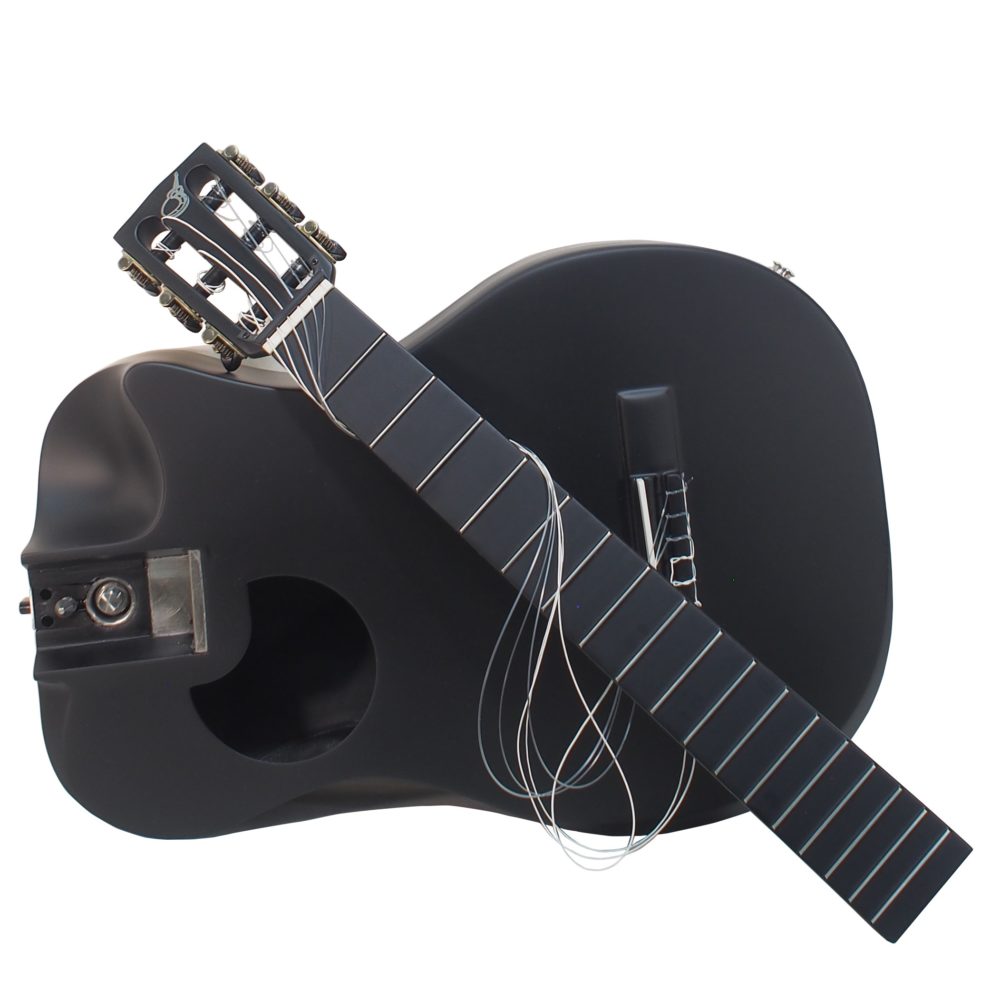

Removable Neck Assembly:
Stainless steel load-bearing components
Push-button release latch under neck

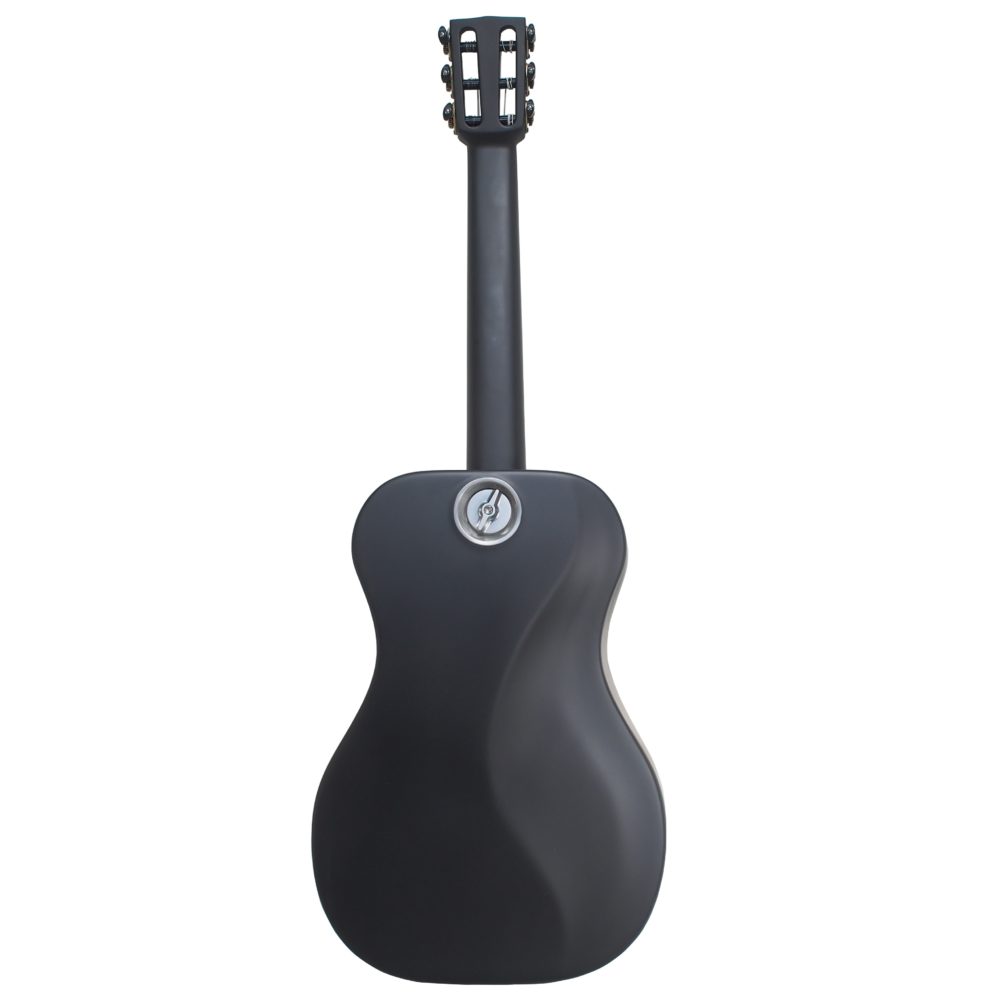

Large adjustment knob on back
Neck:
Low Profile Classical Profile. No Trussrod.
Deep-slotted bone nut
Neck width at nut: 1 7/8 in (48 mm)
Neck Thickness at 1st Fret : 0.8 in (20.3mm)
Neck Thickness at 5th Fret : 0.9 in ( 22.6 mm)
Neck Thickness at 9th Fret : 0.97 in ( 24.7 mm)
12 Frets to body
17 Frets total
Fret Board:
Carbon Fiber
Hardened nickel brass alloy jumbo frets
Strings:
Savarez 520J High Tension Traditional Series
Strings Spacing:
39 mm at nut
59.8 mm at saddle
*note! To preserve string lift, you must detune 1 full tone before detaching neck. Also, this guitar can handle high-tensions strings, BUT because high tensions strings are more brittle, you must detune 3 full steps or your strings will wear out quickly and break.
Guitar Dimensions and Weights:
Weight: 3.8 lbs (1.9kg)
Weight With Case: 7.1 lbs (3.25kg)
Maximum depth: 4.64 in (11.8cm)
Minimum Depth: 3.5 in (8.9 cm)
Body Length: 18 in (45.7cm)
Total Length: 35.5 in (92cm)
Lower Bout Width: 12.5 in (31.8 cm)
Maximum Case Dimensions: L*W*H: 22*14*9 in (55.9*35.5* 22.9 cm)
Travel Backpack Specifications
Tech Travel Ready:
TSA compliant 14-inch computer compartment for optimal airport security inspection
Easy-access tablet pocket for up to 9.5 inch tablet devices
All- Premium Material Construction:
Extra-durable Ballistic Polyester external case with premium polyester and velour lining
Extra-padded Body compartment with premium velour
Internally-accessible padded neck compartment with premium velour and string slot
Padded string panel with strings positioning tab
Padded Top and Side handles
Extra Compartments for Your Journey:
Internal/externally accessible compartment for accessories
Additional external topside pocket for additional accessories
Additional elastic pockets in computer compartment
Hideaway, reinforced padded backpack straps with padded back
Maximum Case Dimensions: L*W*H: 22*14*9 in ( 55.9*35.5* 22.9 cm)
* Note: Some cases may open from the opposite side to accommodate additional guitar models that share the same guitar case.
UPC: 677355814011
