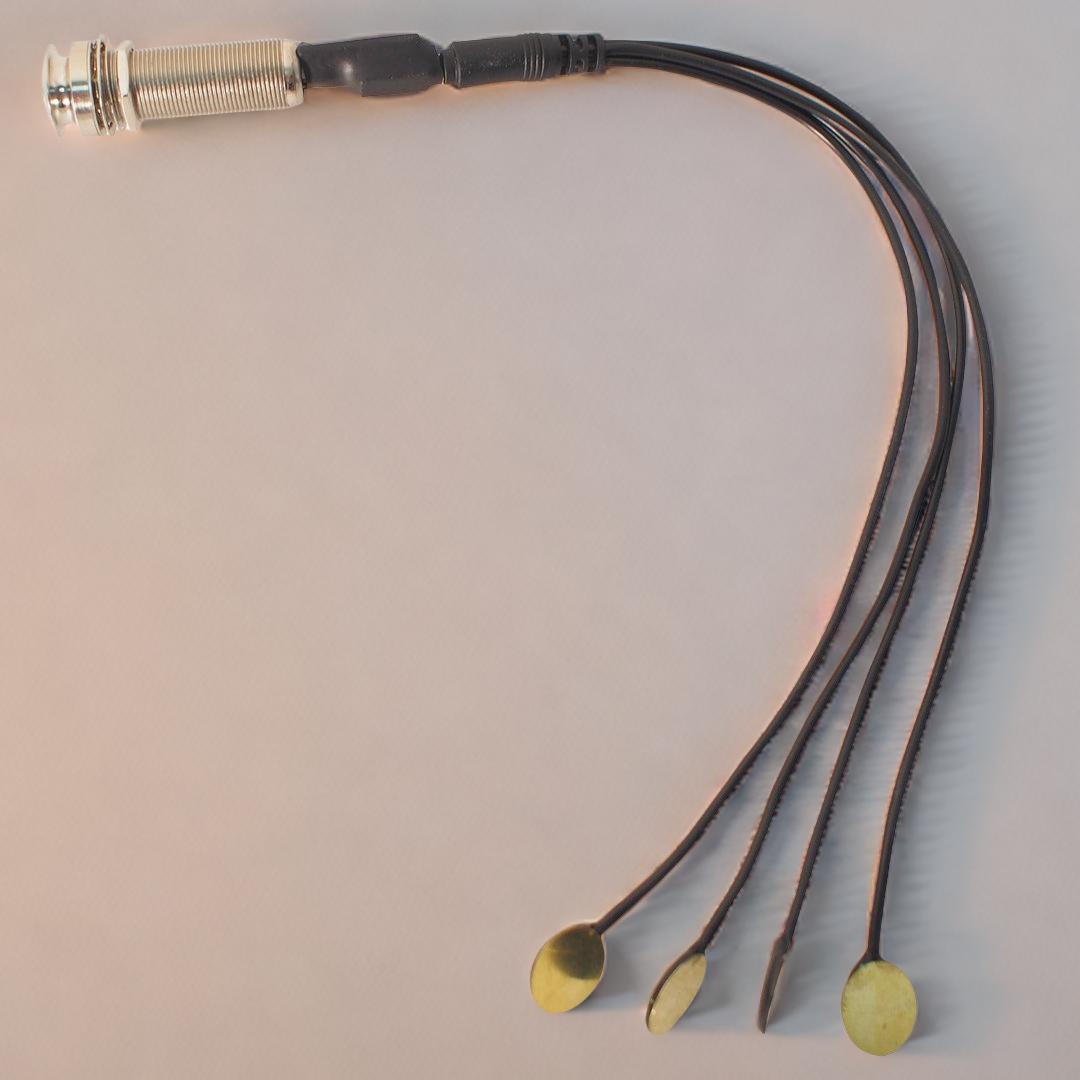

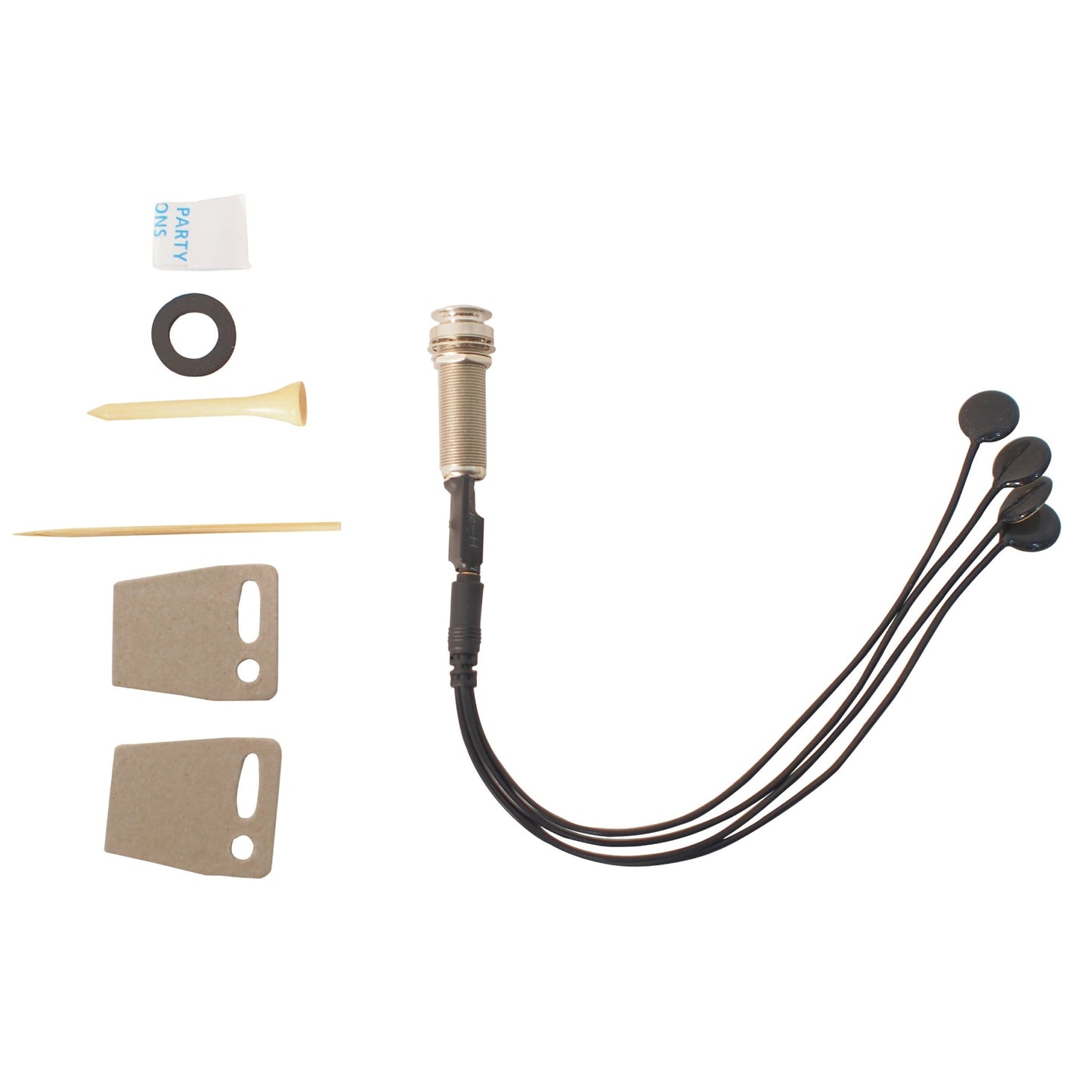

JourneyTek Classical Passive 4-piezo Pickup EP004K

“I received and installed my acoustic pickup.  OMG it sounds amazing.  Blew my mind it’s honestly so good I am removing my LR Baggs Anthem from my other acoustic and replacing it with another one of your pickups!”- Matt, Worship Leader, CA

“I am completely amazed at the sound! I have a 1920s parlorish guitar and it sounds phenomenal, great work! Like butter! F***in’ A!” – Doug, Texas

“I just want too thank you!!! The pickup in my Yamaha acoustic/electric bit the dust and I came across reviews of your passive pickups. My son and I installed them today and…. OMG my guitar sounds truly amazing. I was skeptical but no longer.” – Bruce, California

“I just received my Journey acoustic pickup and I didn’t waste any time getting to work on the installation. I have a Takamine that had a previously installed preamp and piezo bridge. So before I could install the Journey pickup I had to carefully remove the old system that had died after after about 9 years of faithful service. My bridge presented a minor challenge because it is pin less. I was able to find three locations to attach the pads and within 30 minutes I was tuning up my strings and plugging in to test out my work. Plugged into my Bose S1 Pro direct without any preamp was my first test. I have to say that I was really impressed with the tone! Next test was going through my NUX Floor Stageman Acoustic pedal. Now I had a sound that I would be confident to use anywhere. My other guitar is a Martin Black Smoke 000-17 with a LR Baggs Anthem SL installed in it. I played both guitars back to back to compare the tones. I was shocked at how close the tones were. The Anthem cost 4 times as much as the Journey! I will definitely purchase another one should I ever need to do this again! Thanks Journey!” – Chris, Maryland

“I have installed your dual source pickup system on my Martin CEO 7 few days ago and I still can’t believe how good it sounds… It’s absolutely amazing! As compare with LR Baggs Lyric it’s definitely another world. You’ve done the best pickup system on the market for sure.”

General Specs and Details:

3 balanced German-made ceramic piezo elements – 20mm diameter
no batteries needed
length of wire from peizo element to pickup jack: 22cm
frequency response 22Hz-18kHz
EADGBE guitar frequency range is E2 (82 Hz) to F6 (1,397 Hz)
Installation Guide Here: https://journeyinstruments.com/pickup-installation/
NOTE: As this is an endpin jack, you may consider buying our Journey Guitar Strap which is slit to fit this endpin. Otherwise, you may need to enlarge the hole for your strap.

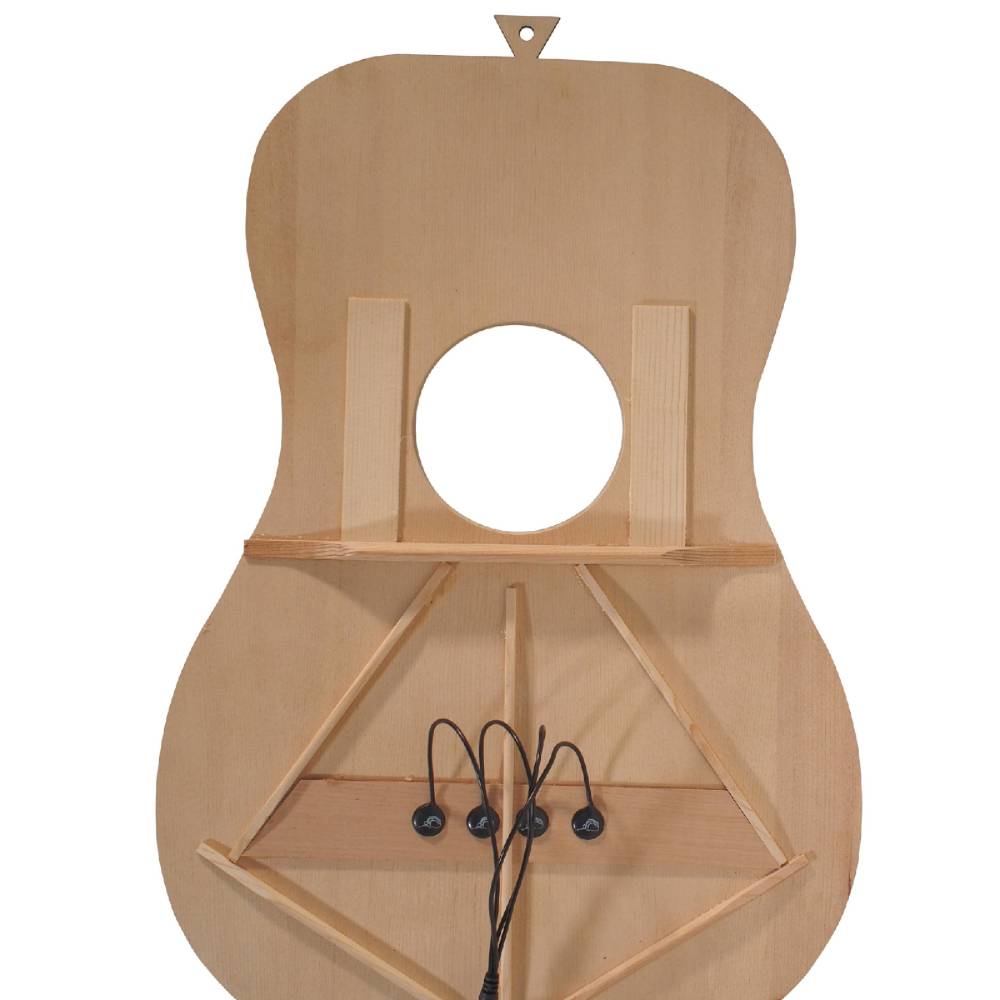

THIS IS RECOMMENDED FOR CLASSICAL GUITARS OR GUITARS WITH A CENTER BRACE. If you have a 6 string guitar that does not have a center brace, we recommend the EP001K as it’s easier to position the piezo elements, and the additional sensitivity from the extra piezo on this model is minor. If you’re determined to use the 4 piezo model on your guitar with no center brace, however, we recommend positioning the piezos equidistant along the bridgeplate under the saddle so that on the 1st and 6th strings the piezo element extends about 4 mm beyond the center of the strings. If this extends beyond the bridgeplate or you don’t have room, you can simply line them up as evenly as possible on the bridge plate so that they fit. You can allow for a maximum of 3 mm overhang if your bridgeplate doesn’t have enough room. It’s impossible for us to give precise positions on this because there are so many variations on bridge plate sizes and string spacing.
UPC 643485844334
